17 G -S003-04 1004-003 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE HR-3 201 6301620398 ASSY ,BLOCK 1 803HAA210010-A001 01 1G0065 201 -01 6301620428 BLOCK 1 21 1G5631 201 -02 6301294797 PLA TE 1 21 1D9826 20…
16
G -S003-04
0909-002
16
201-02
201-06
201-05
201-07
201-09
206
201-09
201-03
201-03
201-04
205
205
225
225
224
224
204
226
208
233
207
234
227
221
213
235
229
212
209
211
228
228
201-01
201-08
220
201-08
201-04
201-05
201
232
232
232
232
258
284
283
260
267
267
254
.
268
.
269
251
.
266
.
267
264
.
274
.
275
263
255
282
.
266
.
267
278
.
266
.
267
253
257
251
251
.
266
.
267

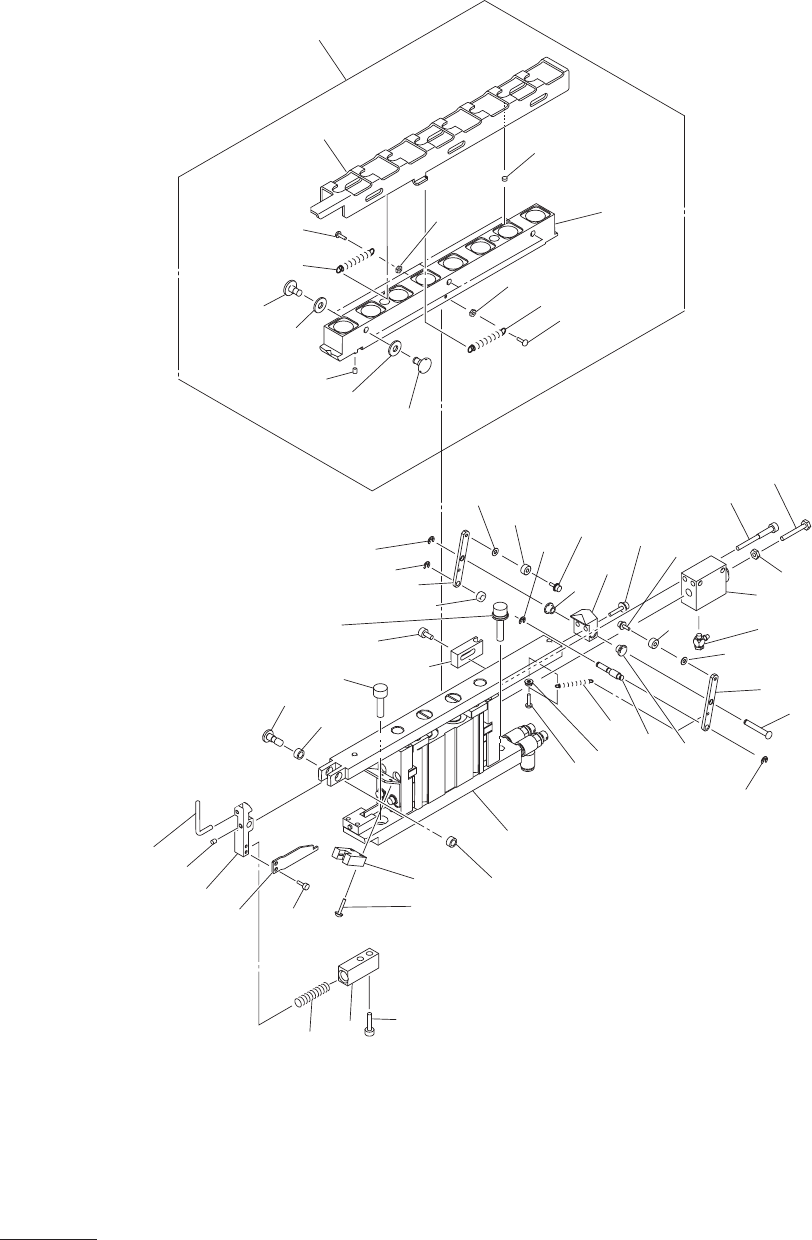

ノズルストッカ
2,3
NOZZLE STOCKER 2,3
Fig. HR-3
ノズルストッカ２
Nozzle Stocker 2
(Case:BlocK2)
(Case:BlocK2)
17
G -S003-04
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
HR-3
201 6301620398 ASSY,BLOCK 1
803HAA210010-A001
011G0065
201 -01 6301620428 BLOCK 1 211G5631
201 -02 6301294797 PLATE 1 211D9826
201 -03 6301257631 PIN,GUIDE 6 216F0867
201 -04 6300305678 BUSH,BEARING 6 222A0072
201 -05 6300017915 SPRING,TENSION 2 222N0067
201 -06 6301256665 MECH PARTS(MAGNET) 1 226J1891
201 -07 6300008883 SET SCREW 6 3X4 SET 221C0001
201 -08 4110392604 SCR PAN 2X6 2 M2X6 PAN 221E0483
201 -09 4111409301 NUT HEX 2 2 M2_3 221F0096
204 6301283234 GUIDE 1
803HAA210010-A004
212A2087
205 6301283241 LEVER 2
803HAA210010-A005
216S2677
206 6301283258 PIN,HINGE 1
803HAA210010-A006
216D0463
207 6301283265 PIN,HINGE 1
803HAA210010-A007
216D0464
208 6301257686 BRACKET 1
803HAA210010-A008
211F8213
209 6301266909 BLOCK 1
803HAA210010-A009
211G3505
210 6301257709 PIN,HINGE 1
803HAA210010-A010
216D0441
211 6301400778 LEVER 1
803HAA210010-A011
216S2914
212 6301294780 PLATE 1
803HAA210010-A012
211D9825
213 6301342856 BRACKET 1
803HAA210010-A013
211F9410
221 6301390055 CYLINDER 1
803HAA210010-A021
224C0574
224 6300769265 BUSH,BEARING 2
803HAA210010-A024
222A0129
225 6300069457 BEARING,RADIAL 2
803HAA210010-A025
222D0131
226 6300775679 BEARING,RADIAL 1
803HAA210010-A026
222D0308
227 6301258744 CYLINDER 1
803HAA210010-A027
224C0535
228 6301256474 BUSH,BEARING 2
803HAA210010-A028
222A0151
229 6300971439 SENSOR,PHOTO 1
803HAA210010-A029
23G10070
232 4110009304 RING E 2 4
803HAA210010-A032
221K0095
233 6300465556 PIPE FITTINGS 1
803HAA210010-A033
225F0253
234 6300017434 SPRING,TENSION 1
803HAA210010-A034
222N0019
235 6300022704 SPRING,COMP 1
803HAA210010-A035
222M0657
251 6300007466 BOLT,HEX-SCT 4 M2X6 221A0001
253 4111406300 SCR PAN 2X8 1 M2X8 PAN 221E0485
254 6300007480 BOLT,HEX-SCT 2 M2.5X12 221A0003
255 6300007503 BOLT,HEX-SCT 2 M3X6 221A0005
257 6300007534 BOLT,HEX-SCT 2 M3X12 221A0008
258 6300007589 BOLT,HEX-SCT 2 M3X30 221A0013
260 6300081053 SET SCREW 1 M3X3 SET 221C0026
263 6300007763 BOLT,HEX-SCT 1 M5X16 221A0031
264 6300007770 BOLT,HEX-SCT 1 M5X20 221A0032
266 4111412509 WASHER SPR 2 5 SW2 221H0276
267 4111413605 WASHER V 2X5X0.3 7 FW2 221H0307
268 4111416606 WASHER SPR 2.5 2 SW2.5 221H0279
269 4111413803 WASHER V 2.5X6.5X0.5 2 FW2.5 221H0310
274 4111416705 WASHER SPR 5 1 SW5 221H0287
HS-G300R
G -S003-04
18
G -S003-04
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
HR-3
275 4111414107 WASHER V 5X10X1 1 FW5 221H0318
278 4111409301 NUT HEX 2 1 M2_3 221F0096
282 4111129001 SCR PAN 2X10 2 M2X10 PAN 221E0479
283 4111410000 NUT HEX 3 1 M3_3 221F0100
284 4111424205 BOLT HEX 3X20 1 M3X20 HEX 221B0151
HS-G300R
G -S003-04
