第 3 章 维修及检验方法 3-21 配件信息 适 用 Nozzle 配件类型 配件符号 尺寸 A B-1 C D E P2-1 A-1C H-4C PLCC 18 13.4mm x 8.2mm x 3.4mm ● PLCC 18 R 11.8mm x 8.2mm x 3.5mm ● PLCC 18 R 13.5mm x 8.3mm x 3.5mm ● PLCC 22 R 13.5mm x 8.3mm x 3.5mm ● PLCC 20…
3-
20
Mx Series Manual

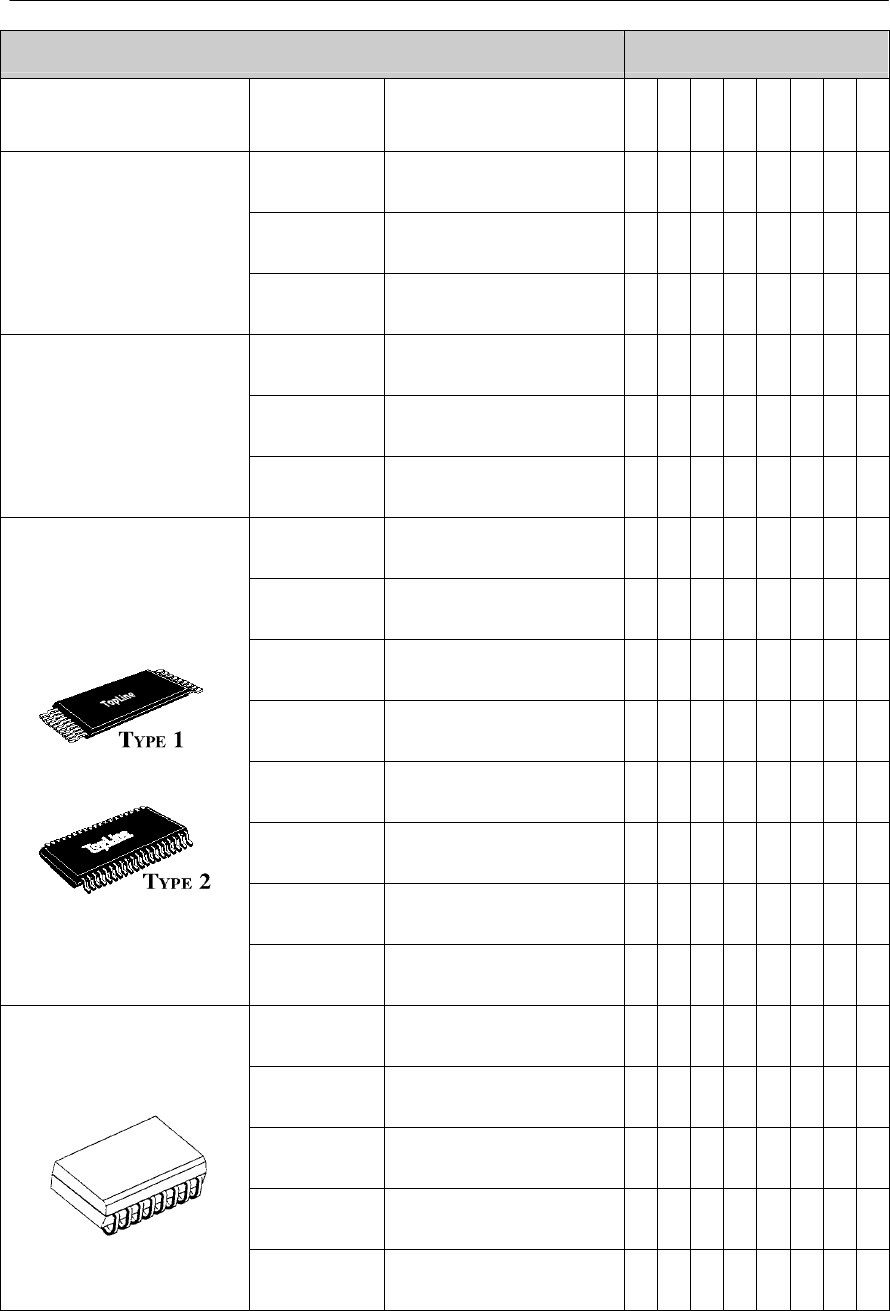

配件信息 适用Nozzle
配件类型 配件符号 尺寸 A B-1 C D E
P2-
1
A-
1C
H-
4C
DIL 4 4.8mm x 9.7mm x 4.8mm ●
DIL 6 8.6mm x 10.0mm x 4.4mm ●
DIL Type IC
DIL 8 9.3mm x 10.0mm x 4.4mm ●
VSO 16 P2E 5.0mm x 6.4mm x 1.3mm ●
VSO 24 P2E 7.8mm x 7.6mm x 1.3mm ●
VSO Type IC
VSO 30 P2E 9.7mm x 7.6mm x 1.3mm ●
TSSOP 8 3.0mm x 4.4mm x 0.9mm ●
TSSOP 14 5.0mm x 4.4mm x 0.9mm ●
TSSOP 16 5.0mm x 4.4mm x 0.9mm ●
TSSOP 20 6.50mm x 4.4mm x 0.9mm ●
TSSOP 24 7.8mm x 4.4mm x 0.9mm ●
TSSOP 28 9.7mm x 4.4mm x 0.9mm ●
TSSOP 20 6.5mm x 6.4mm x 1.3mm” ●
TSOP & TSSOP IC
TSOP 24/20 16.0mm x 6.0mm x 1.2mm ●
SOJ 20 D 16.9mm x 8.5mm x 3.5mm ●
SOJ 20 DA 17.0mm x 9.8mm x 3.5mm ●
SOJ 24 D 16.4mm x 8.7mm x 3.5mm ●
SOJ 26 POJ 17.1mm x 8.5mm x 3.5mm ●
SOJ Type IC
SOJ 26 POZ 17.1mm x 9.8mm x 3.6mm ●
第3章 维修及检验方法
3-21

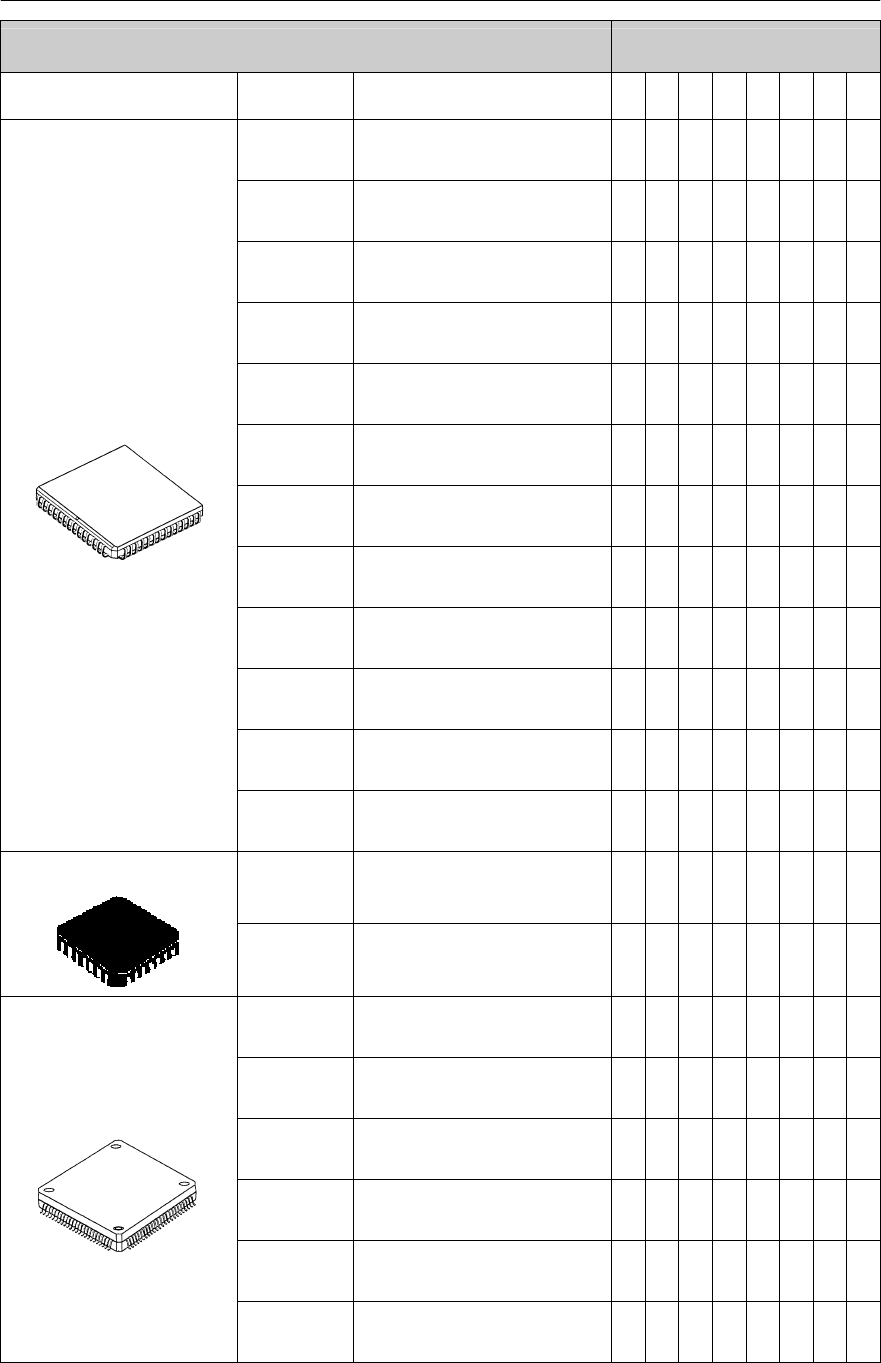

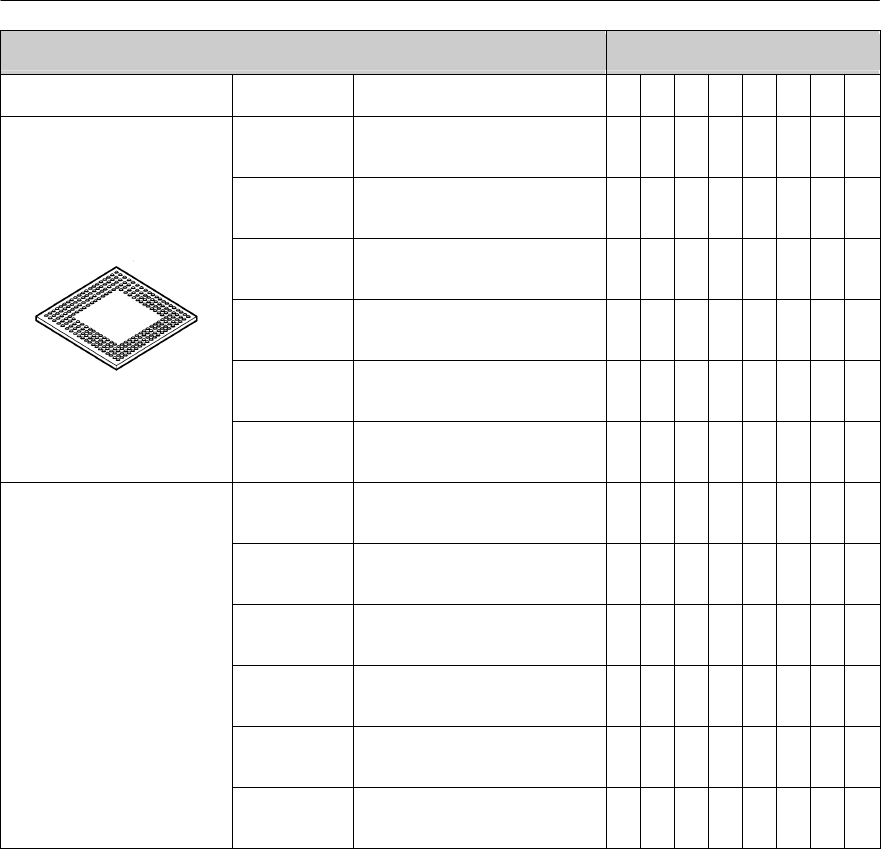

配件信息 适用Nozzle
配件类型 配件符号 尺寸 A B-1 C D E P2-1
A-1CH-4C
PLCC 18 13.4mm x 8.2mm x 3.4mm ●
PLCC 18 R 11.8mm x 8.2mm x 3.5mm ●
PLCC 18 R 13.5mm x 8.3mm x 3.5mm ●
PLCC 22 R 13.5mm x 8.3mm x 3.5mm ●
PLCC 20 10.1mm x 10.1mm x 4.5mm ●
PLCC 24 11.3mm x 11.3mm x 4.5mm ●
PLCC 28 12.6mm x 12.6mm x 4.5mm ●
PLCC 28 R 15.1mm x 10.0mm x 3.5mm ●
PLCC 32 R 13.5mm x 13.5mm x 3.5mm ●
PLCC 52 19.0mm x 19.0mm ●
PLCC 68 24.1mm x 24.1mm ●
PLCC Type IC
PLCC 84 29.2mm x 29.2mm ●
LCCC-16 6.4mm x 6.4mm x 2.0mm ●
PLCC Type IC
LCCC-4 12.3mm x 12.3mm ●
QFP 44(0.8mm) 13.2mm x 13.2mm x 2.5mm ●
QFP 64 17.2mm x 17.2mm x 2.5mm ●
QFP 100 14.0mm x 20.0mm x 2.71m ●
QFP 120 28.0mm x 20.0mm x 2.71m ●
QFP 160 27.2mm x 27.2mm x 2.5mm ●
QFP Type Ic
QFP 208 30.6mm x 30.6mm x 3.6mm ●
3-
22
Mx Series Manual
配件信息 适用Nozzle
配件类型 配件符号 尺寸 A B-1 C D E P2-1
A-1C H-4C
PBGA 119 14.0mm x 22.0mm x 2.3mm ●
PBGA 169 23.0mm x 23.0mm x 2.3mm ●
PBGA 208 23.0mm x 23.0mm x 2.3mm ●
PBGA 225 27.0mm x 27.0mm x 2.3mm ●
PBGA 304 31.0mm x 31.0mm x 2.3mm ●
PBGA IC
PBGA 420 35.0mm x 35.0mm x 2.3mm ●
Check Every 500 Hours (Once a Month：月检)
