2.Motion Control Board(CAN BOARD)
x

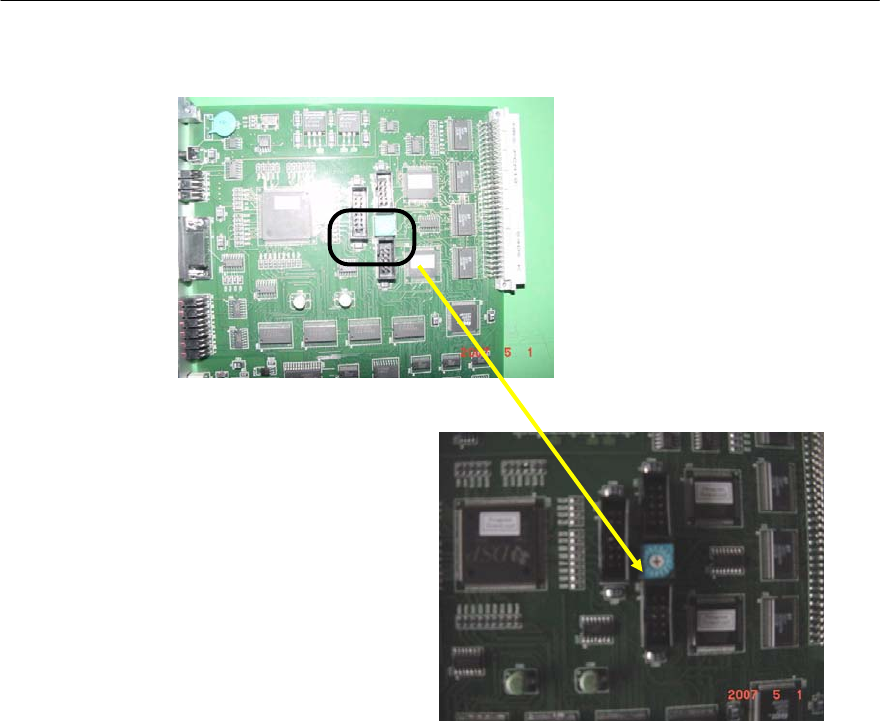

适用型号以Mx200为准-设置为(4)。(CAN B/D2设置为(5))
.
第4章 解决问题
4-37
5. Linear Motor相关错误
[症状]
y
X,Y轴Motion Control Board(DMC)出现错误。
y
X.Y轴回原点失败。
- Linear Motor结构
- Motion Control Board(DMC)与AMP的连接状态图
- 连接图纸
- sensor位置
Y2
X
W
Y1
