Appendix E - 1 E. I/O Map NX12 MODULE CONNECTOR . NX12 MODULE CONNECTOR PIN Formation . POR T 0 1 2 3 4 5 6 7 8 9 10 1 1 12 13 14 15 VCC 1 2 3 4 5 6 7 8 9 10 1 1 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 3…
Appendix D-4

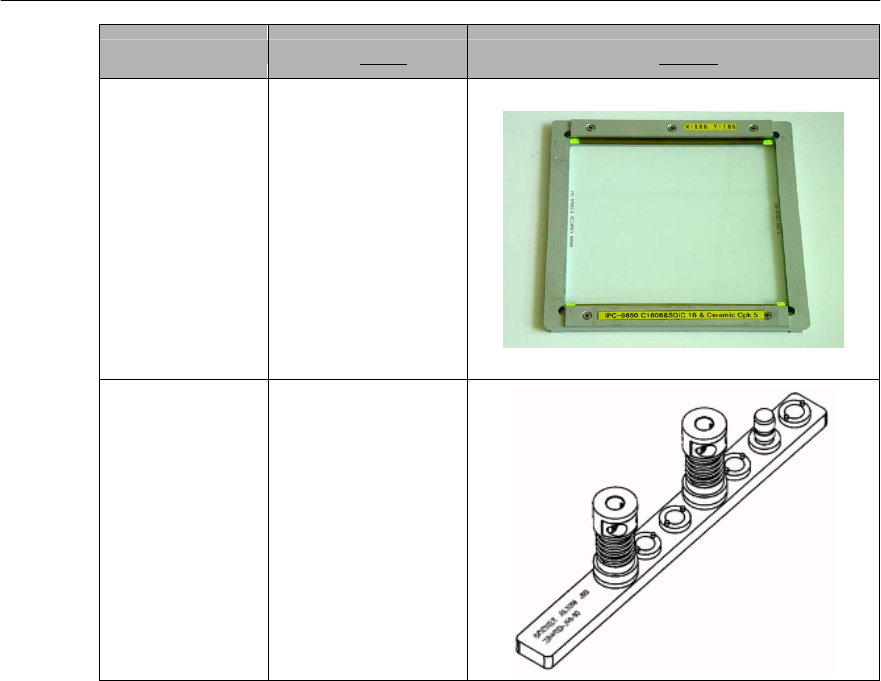

TEST ITEM JIG Name JIG Feature
Cpk for
Module Head
Etching Glass Assy
Head Socket
Align Jig
Socket Align Jig
Appendix E-1
E. I/O Map

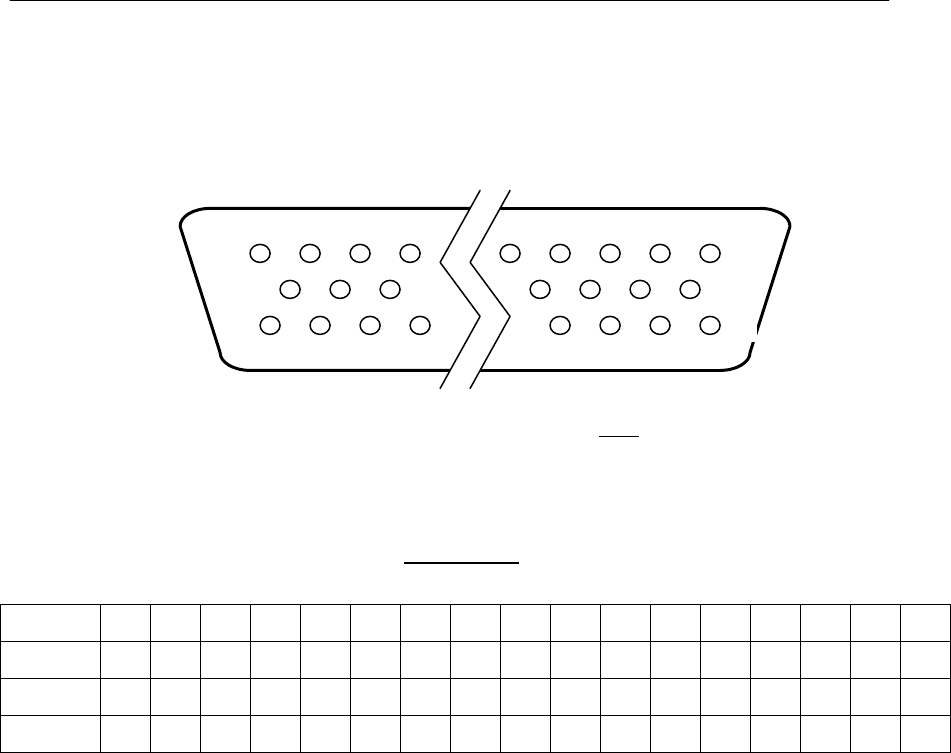

NX12 MODULE CONNECTOR.
NX12 MODULE CONNECTOR PIN Formation.
PORT
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
VCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
GND 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
NX12 I/O MODULE PIN Map
(AC1105 – 50M)
1 17
33
18
34
50
E-2 Mx Series Manual
NX12 I/O Module DIP Switch Configuration and Function
Upward
DIP Switch means off(high=1)
DIP Switch Setup Condition
4 3 2 1
Function
on on on on Test mode 0, Blink Port for 0.6 sec in order
on on on off
Test mode 1, Blink
Port in order, all ports turning on
then shut-down
on on off on Test mode 2, Turns on Port in order and turns it off
on on off off Test mode 3, All ports blink every 0.6 sec
on off on on Test mode 4, Turn all ports on
on off on off Test mode 5, Turn all ports off
on off off on Test mode 6, Applying Self -test 500usec delay
on off off off Test mode 7, Applying Self -test 250usec delay
off on on on Ordinary Operation ID# = 0
off on on off Ordinary Operation ID# = 1
off on off on Ordinary Operation D# = 2
off on off off Ordinary Operation ID# = 3
off off on on Ordinary Operation ID# = 4
off off on off Ordinary Operation ID# = 5
off off off on Ordinary Operation ID# = 6
off off off off Ordinary Operation ID# = 7
SELF TEST SWITCH
off 1 2 3 4
