N7202A066B - 第362页
27 交換台車支持部(右側):NPM-WX Feeder cart support(right side):NPM-WX パーツレイアウト Kit No. キット 品番 Kit Name キット名称 MTKA013175AA セクションNo. PARTS LAYOUT Section No. - - O125 ( KMTKA013175AA-04 )
Ref
No.
Remarks R
1
Q'ty
26-B
17連交換台車駆動部(右側):NPM-WX
Feeder cart drive unit(Right Side):NPM-WX
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA014779AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
BOLT
1
1 N210200346AB
BLOCK
1
2 MTPA004650AA
GUIDE
1
3 N210093809AC
GUIDE
1
4 N210150031AB
SHAFT
1
5 N210161773AA
POST
10
6 N210200351AA
BLOCK
1
7 MTPA021697AA
PLATE
1
8 MTPB013050AC
PLATE
1
9 MTPB013051AA
COVER
1
10 N210103092AD
BRACKET
1
11 MTPB014742AA
BRACKET
1
12 KXFB00JJA01
NUT-PLATE
1
13 N210186760AA
COVER
1
14 MTPB012671AA
COVER
1
15 MTPB009184AA
BRACKET
1
16 MTPB019069AA
SWITCH(400mm)
1
17 N610076513AA
BOLT
12
18 N510067830AA Ultra Low Head Cap Screw M8X12-A2-50
SPACER
2
19 N510038787AA 3382330-50120
CYLINDER
1
20 N510061079AA CDQ2D63-135DCZ-XB10
ROD-END
1
21 KXF088CAA00 POS10EC
SWITCH
1
22 N510037368AA
S
D4N-1122
SPACER
2
23 N510009576AA 3382330-40020
SPEED-CONTROLLER
2
24 N510040089AA AS2201F-02-06S-8-X250
BOLT
11
25 N510017569AA
SSS 003 Hexagon socket button head screw M8X10-10.9 A2J (Trivalent)
PIN
6
26 KXF0CXHAA00 1017003-40008
SCREW
4
27 N510018280AA
Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent)
SHIM
2
28 N510061301AA BRF015024050-C
JOINT
1
29 KXF06F4AA00 53015030-WM
JOINT
2
30 N510066874AA KQ2W06-99A
VALVE
1
31 MTNP000844AA VQZ1321-5LOZ1-M5-X574-Q
O124
--
( KMTKA014779AA-03-2 )
27
交換台車支持部(右側):NPM-WX
Feeder cart support(right side):NPM-WX
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
MTKA013175AA
セクションNo.
PARTS LAYOUT
Section No.
--

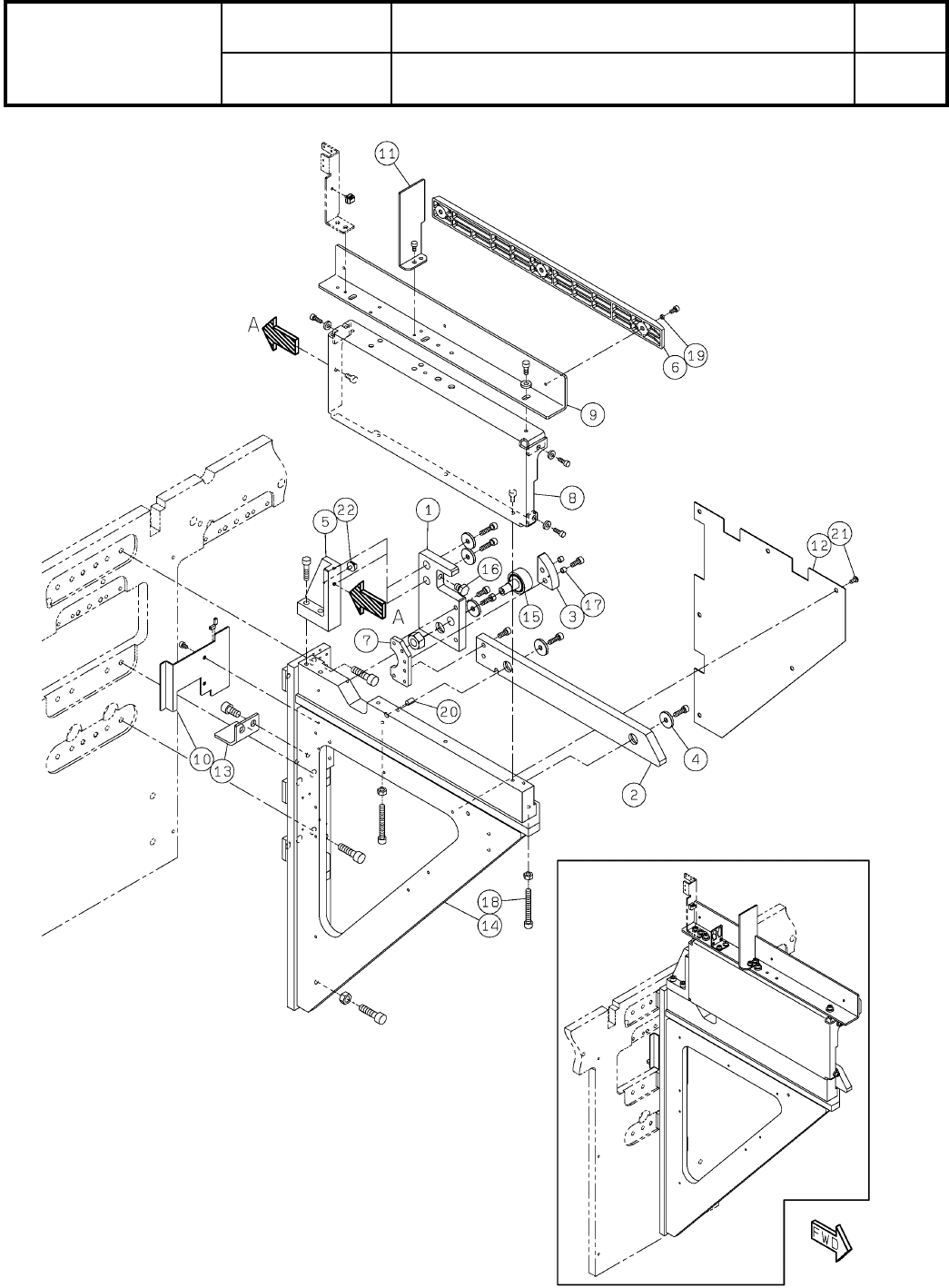

O125
( KMTKA013175AA-04 )
Ref
No.
Remarks R
1
Q'ty
27
交換台車支持部(右側):NPM-WX
Feeder cart support(right side):NPM-WX
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA013175AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 MTPA019785AA
PLATE
1
2 MTPA019783AA
GUIDE
1
3 N210091019AC
WASHER
5
4 N210117333AA
BRACKET
1
5 MTPA019784AB
GUIDE
1
6 MTPS000658AA
PLATE
1
7 MTPA018086AA
BRACKET
1
8 MTPB011812AB
BRACKET
1
9 MTPB011813AB
COVER
1
10 MTPB015677AA
COVER
1
11 MTPB011815AB
COVER
1
12 MTPB012139AC
BRACKET
1
13 MTPB015113AA
FRAME
1
14 MTKP006115AD
CAM-FOLLOWER
1
15 N510032929AA CF12VBUUR
STOPPER
1
16 N510029795AA SPM-M8
SPACER
2
17 N510020062AA 3382330-50050
BOLT
2
18 N510020869AA
Hexagon socket head cap screw M6X50-10.9 A2J (Trivalent) Full thread
SPACER
3
19 N510009576AA 3382330-40020
PIN
1
20 N510020617AA MMS6-10
BOLT
6
21 N510000423AA SRBS-M4X8
CABLE-SUPPORT
2
22 N510048517AA FT4
O126
--
( KMTKA013175AA-04 )
