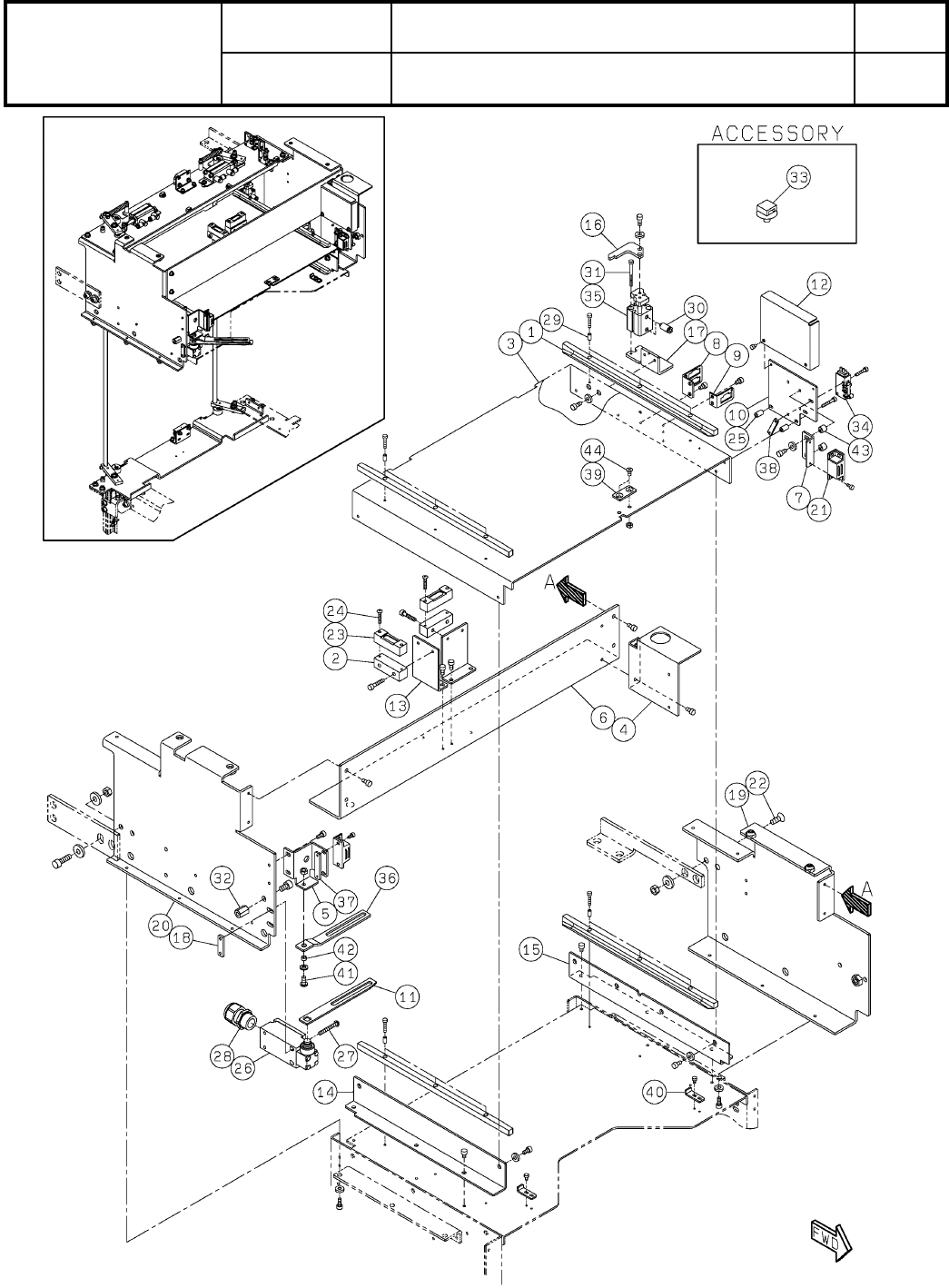

45-A 補給/NG排出部:X10 Supply/NG ex haust Section:X10 パーツレイアウト Kit No. キット 品番 Kit Name キット名称 MTKA012196AA セクションNo. PARTS LAYOUT Section No. - - O181 ( KMTKA012196AA-05-1 )

100%1 / 694
Ref
No.
Remarks R
1
Q'ty
44-D
マガジン保持部:X10
Magazine Holder:X10
ｲﾗｽﾄ
No.
Part No.
品　　名品　　番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA011070AA
Part Name
備　　　考
セクションNo.
PARTS LIST
Section No.
R
3
BLOCK
1
1 MTPA024200AA
BRACKET
1
2 MTPB009362AB
BRACKET
1
3 MTPB009729AC
BRACKET
1
4 MTPB009708AD
BRACKET
1
5 MTPB011056AC
BRACKET
1
6 MTPB011057AC
NUT-PLATE
1
7 MTPA012560AA
NUT-PLATE
1
8 MTPB014808AA
PLATE
1
9 MTPB014807AA
NUT-PLATE
1
10 MTPB018937AA
BRACKET
1
11 MTPB019961AA
JOINT
2
12 N510066684AA KQ2L04-M5N
VALVE
1
13 MTNP001843AA VQZ1221-5LZ1-C4-X550-Q
JOINT
3
14 N510066523AA KQ2H06-M5A
SILENCER
6
15 KXF00WCAA00 AN120-M5
VALVE
2
16 MTNP001844AA VQZ1121-5LZ1-C4-X550-Q
JOINT
2
17 N510066629AA KQ2U04-00A
CYLINDER
1
18 KXF0DXLVA00 RSQB12-10D
SWITCH
1
19 N510056987AA
S
HS5D-02RNP
JOINT
1
20 KXF06F4AA00 53015030-WM
BOLT
2
21 N510001582AA SRBS-M4X30
SCREW
4
22 N510018158AA
Cross recessed Countersunk head machine screw M3X6-4.8 A2J (Trivalent)
MAGNET
1
23 N986MC159 MC-159
JOINT
1
24 N510066456AA KQ2U06-00A
BOLT
2
25 N510017628AA
Hexagon socket Flat head bolt M4X8-10.9 A2J (Trivalent)
CATCH
1
26 KXF01F0AA00 C-90-1
BOLT
2
27 N510017614AA
Hexagon socket Flat head bolt M4X10-10.9 A2J (Trivalent)
SPACER
2
28 N510017100AA CB-420E
BOLT
2
29 N510067624AA CQ-M3X40L
JOINT
1
30 N510066452AA KQ2U06-99A
SPACER
6
31 N510021032AA CF-302E
PLATE
1
32 N510043073AA YN-001U
TAPE
1
33 KXF0DXNAA00 AGF-100 t=0.18 W=100mm L=10m
O180
--
( KMTKA011070AA-06-4 )
45-A
補給/NG排出部:X10
Supply/NG exhaust Section:X10
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
MTKA012196AA
セクションNo.
PARTS LAYOUT
Section No.
--
O181
( KMTKA012196AA-05-1 )
Ref
No.
Remarks R
1
Q'ty
45-A
補給/NG排出部:X10
Supply/NG exhaust Section:X10
ｲﾗｽﾄ
No.
Part No.
品　　名品　　番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA012196AA
Part Name
備　　　考
セクションNo.
PARTS LIST
Section No.
R
3
GUIDE
4
1 MTPS000735AD
BLOCK
2
2 KXFB015CA00
BRACKET
1
3 MTPB011012AE
BRACKET
1
4 MTPB011010AC
BRACKET
1
5 MTPB011017AD
BRACKET
1
6 MTPB011008AC
BRACKET
1
7 MTPB011003AC
BRACKET
3
8 N210004500AA
BRACKET
2
9 KXFB00JJA01
PLATE
1
10 MTPB011108AD
LEVER
1
11 MTPB012118AB
COVER
1
12 MTPB014182AA
BRACKET
2
13 MTPB014183AB
BRACKET
1
14 MTPB014476AC
BRACKET
1
15 MTPB014477AD
STOPPER-PLATE
1
16 MTPB014732AA
BRACKET
1
17 MTPB014733AB
NUT-PLATE
1
18 KXFB03UPA00
BRACKET
1
19 MTKP005672AC
BRACKET
1
20 MTKP007751AB
MAGNET
2
21 N980C1613 C-161-3
SCREW
2
22 N510018203AA
Cross recessed Countersunk head machine screw M6X16-4.8 A2J (Trivalen
PRECISION-LEVEL
2
23 KXF0DXU6A00 100WATER LEVEL
SCREW
4
24 N510018241AA
Cross recessed Truss head machine screw M3X18-4.8 A2J (Trivalent)
SPACER
2
25 N510021002AA CF-310E
SWITCH
1
26 N510037850AA
S
D4NH-1BBC
BOLT
2
27 N510001582AA SRBS-M4X30
JOINT
1
28 KXF06F4AA00 53015030-WM
SPACER
12
29 N510038529AA CF-308ZE
JOINT
2
30 N510066711AA KQ2S04-M5A
BOLT
2
31 MTNK003371AA CQ-M3X35L
SPACER
1
32 N510020914AA ASF-615E
CABLE-SUPPORT
11
33 N510048517AA FT4
SWITCH
1
34 MTKP009652AA D2VW-01L2A-3MS
CYLINDER
1
35 MTKP008365AA
PLATE
1
36 MTPB018508AA
NUT-PLATE
1
37 MTPB018960AA
NUT-PLATE
1
38 MTPB019107AA
STOPPER
1
39 MTPB018893AA
STOPPER
2
40 MTPB019852AA
BOLT
1
41 N510067811AA
Ultra Low Head Cap Screw M5X10-8.8 A2J(Trivalent)
SPACER
1
42 MTNK004121AA CF-503ZE
SPACER
2
43 N510021006AA CF-407E
BOLT
2
44 N510017628AA
Hexagon socket Flat head bolt M4X8-10.9 A2J (Trivalent)
