Upgrade kit DLM4-12 for DX1_2_20211124_103841

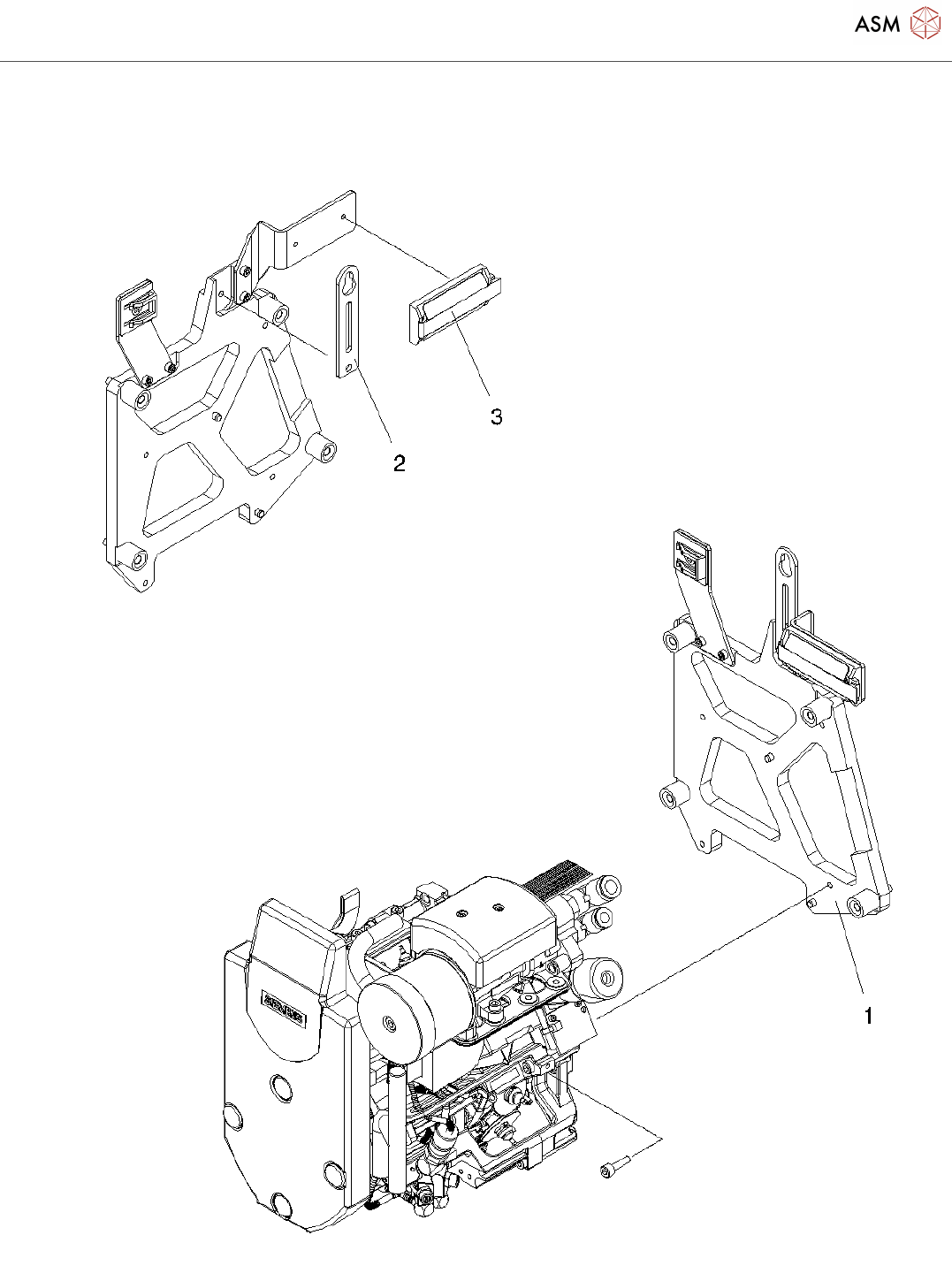

Upgrade kit DLM4-12 for DX1/2 Page 1 / 3 24.11.2021
Upgrade kit DLM4-12 for DX1/2
Page 1 / 3 24.11.2021
Upgrade kit DLM4-12 for DX1/2
Page 2 / 3 24.11.2021
Pos. Item no. Description Part marking
03081918-01 UPGRADE KIT DLM4-12 FOR DX1/2
1 03082158-01 ADAPTER PLATE CPLT. DLM4-DX1/2
03082319-01 ADAPTER PLATE DLM4-DX1/2
03001387-01 CABLEHOLDER
03082421-01 CABLEHOLDER 2
2 03072187-01 PLATE / CPP
03082623-01 LAPPED PIN
03082443-01 RETAINING ELEMENT DLM DX
3 03001830-01 CABLE SUPPORT SPARE PART
03082426-01 FLAT CABLE HOLDER
4 03081920-01 HEAD ADAPTER HCU FOR DLM4 -
DX1/2
5 03084408S03 PCB BASIC ADAPTER DLM XE SPARE PART
6 03054884-03 HCU CPL. Spare Part
03084789-01 FLAT RIBBON CABLE SET
DLM4-DX1/2
SPARE PART
03023819-02 ASSEMBLYKIT BE.KAMERA SST28/29
DLM2
03022736-02 CABLEMOUNTING COMPLETE
03001830-01 CABLE SUPPORT SPARE PART
03022640-02 CABLEMOUNTING
03014437-01 CABLEHOLDER/ C+P SPARE PART
03081921-01 PIPING DLM - DX1/2
03051799-01 L-TYPE QUICK-RELEASE FASTENER
QSL-8
03052399-01 RECEPTACLE REDUCING QSH-12-8
00330249-01 BLANKING PLUG QSC-4H STANDARD PARTS
00337891-01 PLUG QSC-6H
03006728S01 PVC CAP TYP D DI8,0 H 15 10X SPARE PART
03014616S01 HOSE/EXHAUST AIR C+P20 CONSUMABLE
03006727S01 SILICON HOSE DI 8 DA 12
EL.CONDUCTIVE
SPARE PART
03083785-01 TUBE PLACEMENT CIRCLE DLM-
DX1/2
03055411S01 PLASTIC TUBE PUN-CM-6-SW
ANTISTAT. (1M)
SPARE PART
03083786-01 TUBE HOLDING CIRCLE DLM-DX1/2
Upgrade kit DLM4-12 for DX1/2
Page 3 / 3 24.11.2021
Pos. Item no. Description Part marking
03083787-01 PLASTIC TUBE PUN-CM-8-SW
ANTISTAT.
03048638-02 BOX SPARE PART
03084472-01 COVER PLATE DLM-DX1/2
03017800-01 BRACKET
03084438-01 PLATE DX1/2
03083803-02 BUFFER EXTENSION DLM-DX1/2
03084499-01 AIRGUIDE SHEET DX1/2
03086331-01 CAMERA LONG CABLE KIT DLM
DX1/2
03083678-01 HOTLINK CAMERA ADAPTER COMPL.
03086332-01 CAMERA CABLE EXTENSION DLM
DX1/2
*
00308458-01 CABLE TIES B=2.5MM, L=102MM
PANDUIT
STANDARD PARTS
03075147S01 CABLE CUFF SPARE PART
