Page SAMSUNG TECHWIN 19 SM411 B ac ku p T able Ass’ y 1 3 1 7 6 8 9 1 0 5 2 6 1 1 1 1- A 1 1- B 1 1- A 1 1- B 1 0- A 1 0- A 1 2 1 2- A 1 0- B 1 0- E 9 -C 9 -A 9 -D 1 0- D 1 3- A 9 -A 9 -E 9 -B 3 4 1 2 1 0- C 1 0- D 1 0- …
Page
SAMSUNG TECHWIN
18
S M411
F
ixed ANC Ass’y
SAMSUNG TECHWIN
NO. PARTNO. PARTNAME Q'TY TYPE REMARK
1
J90831135A ANCSENSORCABLEASS'Y 2 SM33-CV010
FRONT,REARCOMMON
1-A J6701029A AIRCYLINDER
2
FRONT,REARCOMMON
1-B
J3713088A CONNECTOR 2
FRONT,REARCOMMON
1-C
J3712068A TERMINAL 6
FRONT,REARCOMMON
2
J6703028A SPEEDCONTROLLER 2
FRONT,REARCOMMON
3 J7156043B SHUTTERBRACKET
2
J7156043B FRONT,REARCOMMON
4
J71561001A ANCPLATE 2 J71561001A
FRONT,REARCOMMON
5
J71561002A NOZZLESHUTTER 2 J71561002A
FRONT,REARCOMMON
6
J71561003A MAINBODY 2 J71561003A
FRONT,REARCOMMON
7
J71561004A ANCSUPPORT 2 J71561004A
FRONT,REARCOMMON
8
J67011016A AIRCYLINDER 1
FRONT
9
J1301188 FITTING 2
FRONT
10
J70561001A CYLINDERBRACKET 1 J70561001A
FRONT
11
J6703028A SPEEDCONTROLLER 1
FRONT
12
13
14
15
16
17
18
19
20
21
22
23
24
P art L is t
Page
SAMSUNG TECHWIN
19
SM411

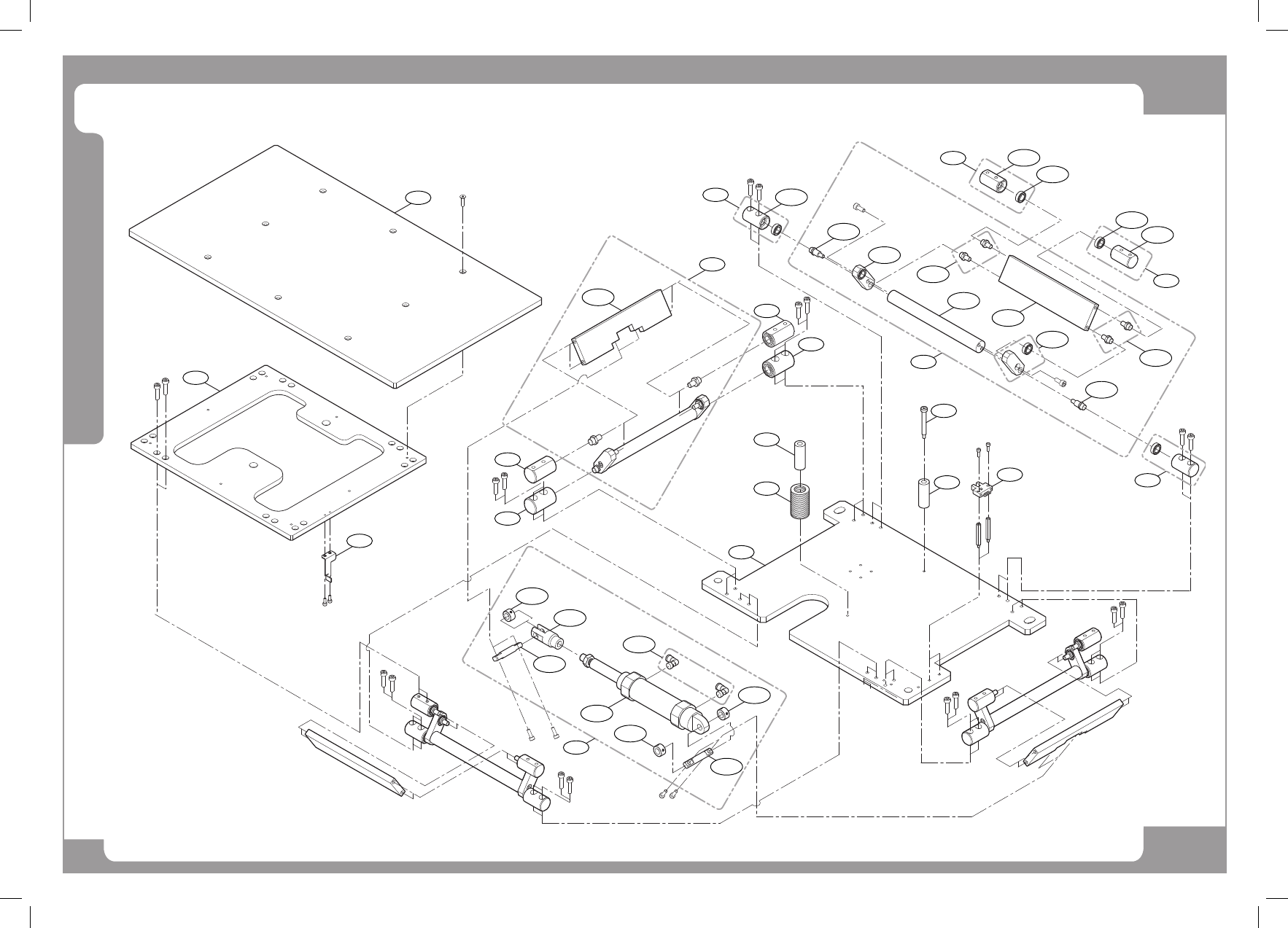

Backup Table Ass’y
13
1
7
6
8
9
10
5
2
6
11
11-A
11-B
11-A
11-B
10-A
10-A
12
12-A
10-B
10-E
9-C
9-A
9-D
10-D
13-A
9-A
9-E
9-B
3
4
12
10-C
10-D
10-E
11
12
11
12
11
9-B
9-A
Page
SAMSUNG TECHWIN
20
SM411
Backup Table Ass’y
P art L is t
SAMSUNG TECHWIN
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J70531051A BACK UP PLATE 1 J70531051A
2
J70531053A UPPER PLATE 1 J70531053A
3
J70531054A BUT SENSOR DOG 1 J70531054A
4
J70531052A LOWER PLATE 1 J70531052A
5 J6107047A
SPRING 1
6
J6308003A URETHAN CUSHION 2
7 J6015064000
SHOULDER SCREW 2
8 J3212002A
SENSOR 1
9
J90531005A BUT_CYLINDER_ASSY
1
J90531005A
9-A
J7053795A RING FIXER 3 J7053795A
9-B
J7053794A CYLINDER JOINT PIN 2 J7053794A
9-C
J6619062A CYLINDER JOINT 1
9-D
J67010088B CYLINDER 1
9-E J6711028A
ELBOW FITTING 2
10
J90531003A DRIVING_LINK_ASSY
2
J90531003A
10-A
J7053793A LOWER LINK PIN 8 J7053793A
10-B
J7053796A LOWER LINK SHAFT 4 J7053796A
10-C
J71530418B UPPER FREE LINK 2 J71530418B
10-D
J7053792A UPPER LINK PIN 16 J7053792A
10-E J7053797A
LOWER LINK END 8 J7053797A
11
J90531007A UPPER_BEARING_ASSY 8 J90531007A
11-A
J7053791A UPPER BEARING HOLDER 8 J7053791A
11-B J6601005A
BEARING 24
12
J90531006A LOWER_BEARING_ASSY 8 J90531006A
12-A
J7053790A LOWER BEARING HOLDER 8 J7053790A
13
J90531004A FREE_LINK_ASSY
2
J90531004A
13-A
J71530419B UPPER DRIVING LINK 2 J71530419B
