SM411 Technical Reference(User)-Distribution - 第21页
Page SAMSUNG TECHWIN 21 SM411 F ee de r S ta tio n As s’y 5 3 8 7 5 2 1 4 5 5 3 5 5 6 6
Page
SAMSUNG TECHWIN
20
SM411
Backup Table Ass’y
P art L is t
SAMSUNG TECHWIN
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J70531051A BACK UP PLATE 1 J70531051A
2
J70531053A UPPER PLATE 1 J70531053A
3
J70531054A BUT SENSOR DOG 1 J70531054A
4
J70531052A LOWER PLATE 1 J70531052A
5 J6107047A
SPRING 1
6
J6308003A URETHAN CUSHION 2
7 J6015064000
SHOULDER SCREW 2
8 J3212002A
SENSOR 1
9
J90531005A BUT_CYLINDER_ASSY
1
J90531005A
9-A
J7053795A RING FIXER 3 J7053795A
9-B
J7053794A CYLINDER JOINT PIN 2 J7053794A
9-C
J6619062A CYLINDER JOINT 1
9-D
J67010088B CYLINDER 1
9-E J6711028A
ELBOW FITTING 2
10
J90531003A DRIVING_LINK_ASSY
2
J90531003A
10-A
J7053793A LOWER LINK PIN 8 J7053793A
10-B
J7053796A LOWER LINK SHAFT 4 J7053796A
10-C
J71530418B UPPER FREE LINK 2 J71530418B
10-D
J7053792A UPPER LINK PIN 16 J7053792A
10-E J7053797A
LOWER LINK END 8 J7053797A
11
J90531007A UPPER_BEARING_ASSY 8 J90531007A
11-A
J7053791A UPPER BEARING HOLDER 8 J7053791A
11-B J6601005A
BEARING 24
12
J90531006A LOWER_BEARING_ASSY 8 J90531006A
12-A
J7053790A LOWER BEARING HOLDER 8 J7053790A
13
J90531004A FREE_LINK_ASSY
2
J90531004A
13-A
J71530419B UPPER DRIVING LINK 2 J71530419B
Page
SAMSUNG TECHWIN
21
SM411

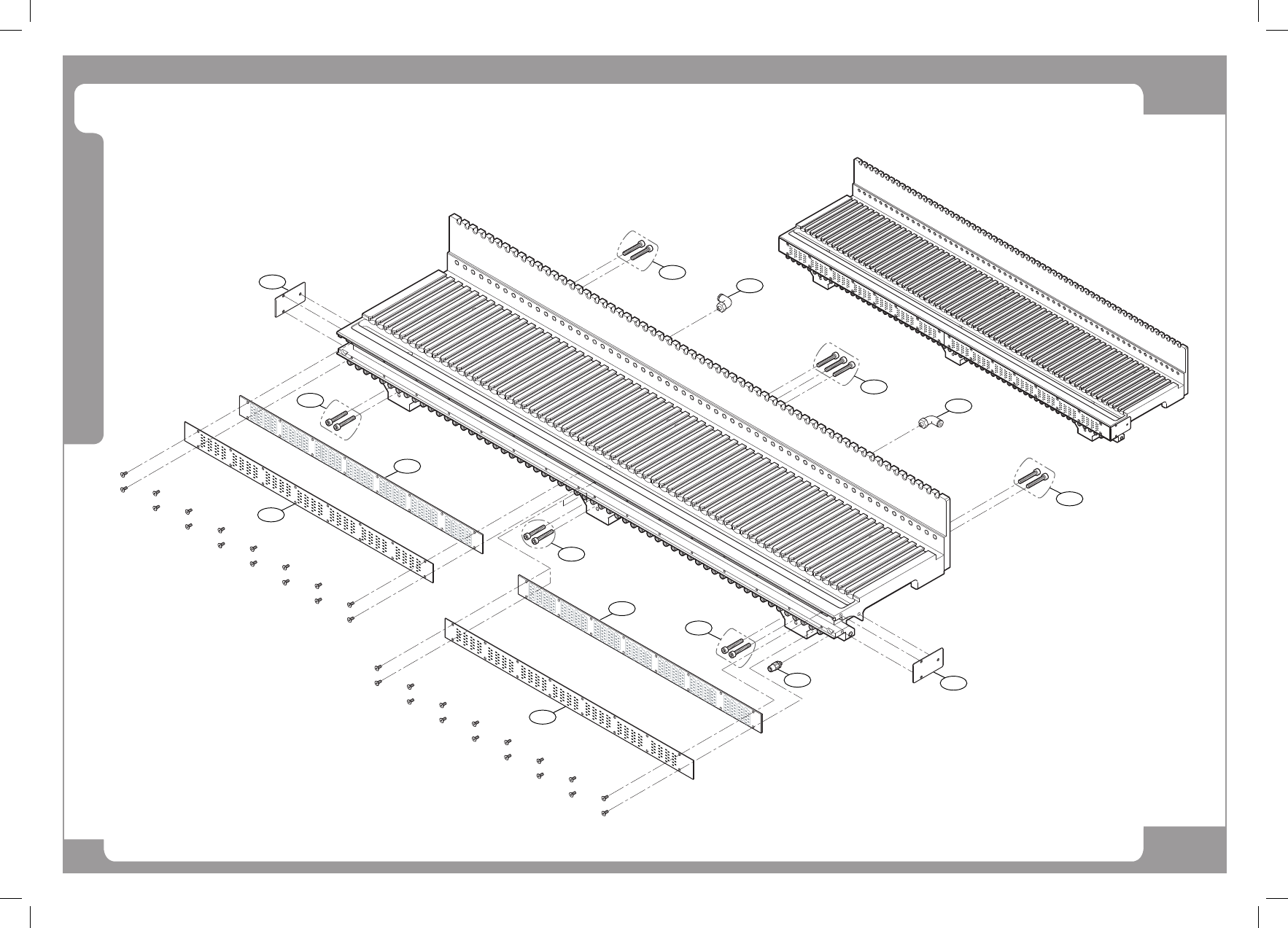

Feeder Station Ass’y
5
3
8
7
5
2
1
4
5
5
3
5
5
6
6
Page
SAMSUNG TECHWIN
22
SM411
Feeder Station Ass’y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J9060352A FEEDER BASE RIGHT COVER PCB, NON DOCKING 1 REV 1.0
2 J9060351A FEEDER BASE LEFT COVER PCB, NON DOCKING 1 REV 1.0
3 J1301188 FITTING 2
4 J6711245A COUPLING 60
5 J6001503038 SOCKET HEAD CAP SCREW 13
6 J7057213A SIDE CABLE COVER-FB 2 J7057213A
7 J9060348B FEEDER BASE RIGHT BOARD, NON DOCKING 1 REV 2.1
8 J9060347B FEEDER BASE LEFT BOARD, NON DOCKING 1 REV 2.1
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
P art L is t
