Page
SAMSUNG TECHWIN
23
SM411

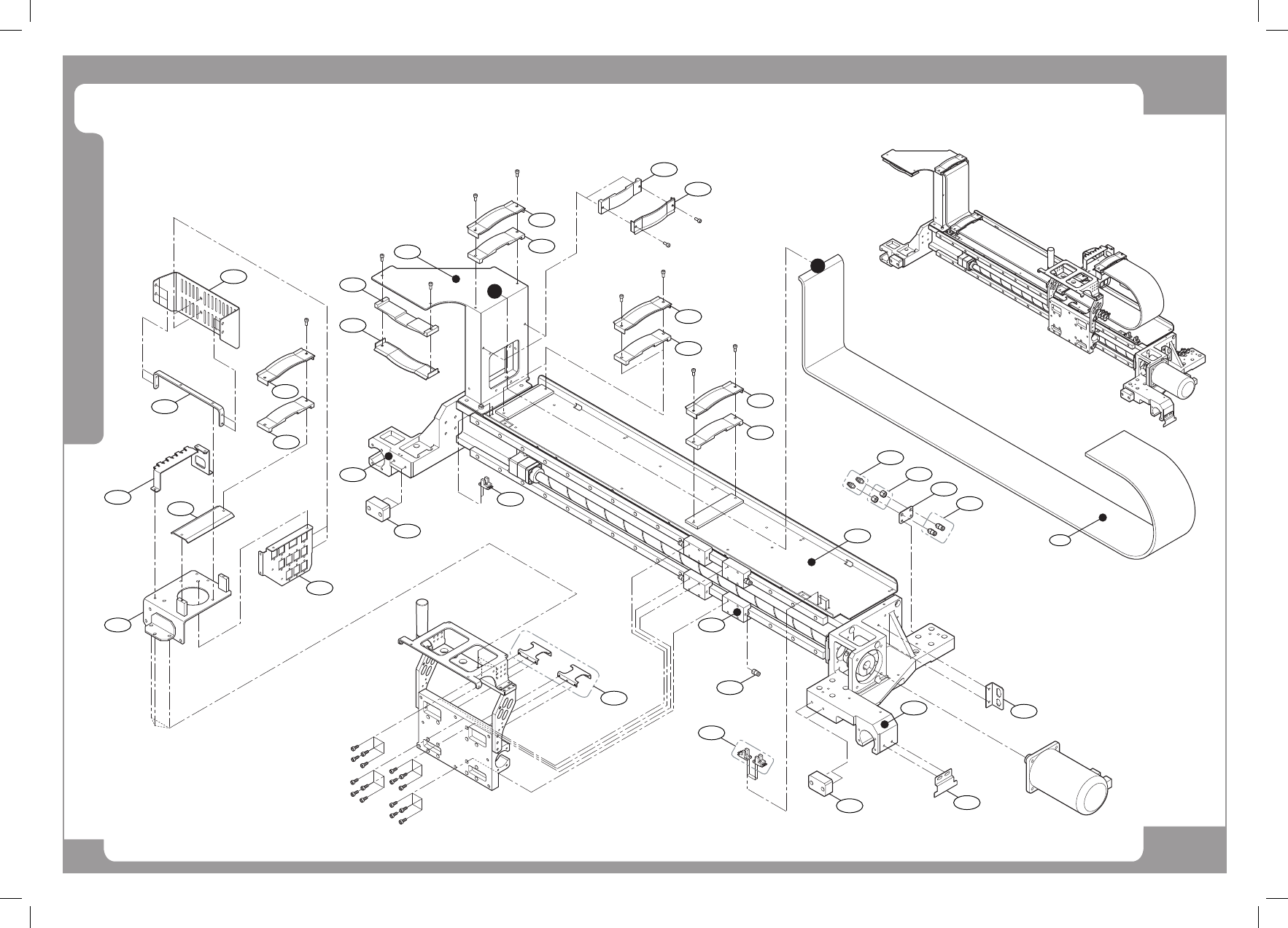

X-Frame Ass’y
1
1
2
3
4
6
5
2
7
8
9
8
9
8
9
8
9
11
12
13
14
15
16
17
19
21
22
23
20
8
9
24
26
25
18
10
Page
SAMSUNG TECHWIN
24
SM411
X-Frame Ass’y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J3212022A PHOTO SENSOR
3
2 J72541002A CUSHION_CRASH
2
J72541002A01
3 J70541008A SENSOR_DOG_Y
2
J3212022A
4 J66071014A LM GUIDE
2
5 J71541007A Y1 PLATE
1
J71541007A01
6 J71541008A Y2 PLATE
1
J71541008A02
7 J71541015A GUIDE_CABLE_CHAIN_X
1
J71541015A
8 J7354023A CABLE CUSHION X
4
J7354023A
9 J7054255A CUSHION BRACKET X
4
J7054255A
10 J7254016D INNER GUIDE-MAT
2
J7254016D
11 J7053690A SERVO CONNECTOR BKT
2
J7053690A
12 J70541007A BRACKET CABLE CHAIN-Y
1
J70541007A
13 J7054256A CUSHION BRACKET Y
2
J7054256A
14 J7354024A CABLE CUSHION Y
2
J7354024A
15 J6711147A STRAIGHT FITTING
4
16 J70541099A Y_NIPPLE_PLATE
2
J70541099A
17 J70541038A SENSOR DOG-X
2
J70541038A
18 J70541015A CONNECTOR PANEL
1
J70541015A
19 J71541018A CABLEVEYOR BRACKET
1
J71541018A
20 J7054260A CABLE FIXER
1
J7054260A
21 J70541100A CABLE SPACER
1
J70541100A
22 J71541077A HEAD_COVER_BRACKET
1
J71541077A
23 J71541078A HEAD_FRONT_COVER
1
J71541078A
24 J6711147A STRAIGHT FITTING
2
25 J70541105A GREASE_NIPPLE_NUT
4
J70541105A
26 J6719025A GREASE NIPPLE
4
27
P art L is t
Page
SAMSUNG TECHWIN
25
SM411
X-Ball Screw Ass’y
1
3
2
4
6
7
8
5
9
10
