Page SAMSUNG TECHWIN 27 SM411 Y 1- Fr ame Ass ’y F . R R . L 4 3 5 3 3 2 1 1 3
Page
SAMSUNG TECHWIN
26
SM411
X-Ball Screw Ass’y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J3108063A SERVO MOTOR
1
2 J66121006A COUPLING
1
3 J66011017A SUPPORT UNIT
1
4 J66061003A BALL SCREW
1
5 J1300517 C-RING(SHAFT)
1
6 J72541005A CUSHION_X_REAR
1
J72541005A01
7 J6601008A BALL BEARING
1
8 J71541010A BRG_HOUSING_X
1
J71541010A
9 J71541009A BRG_SUPPORT-X
1
J71541009A02
10 J1300502 DOWEL PIN
1
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
P art L is t
Page
SAMSUNG TECHWIN
27
SM411

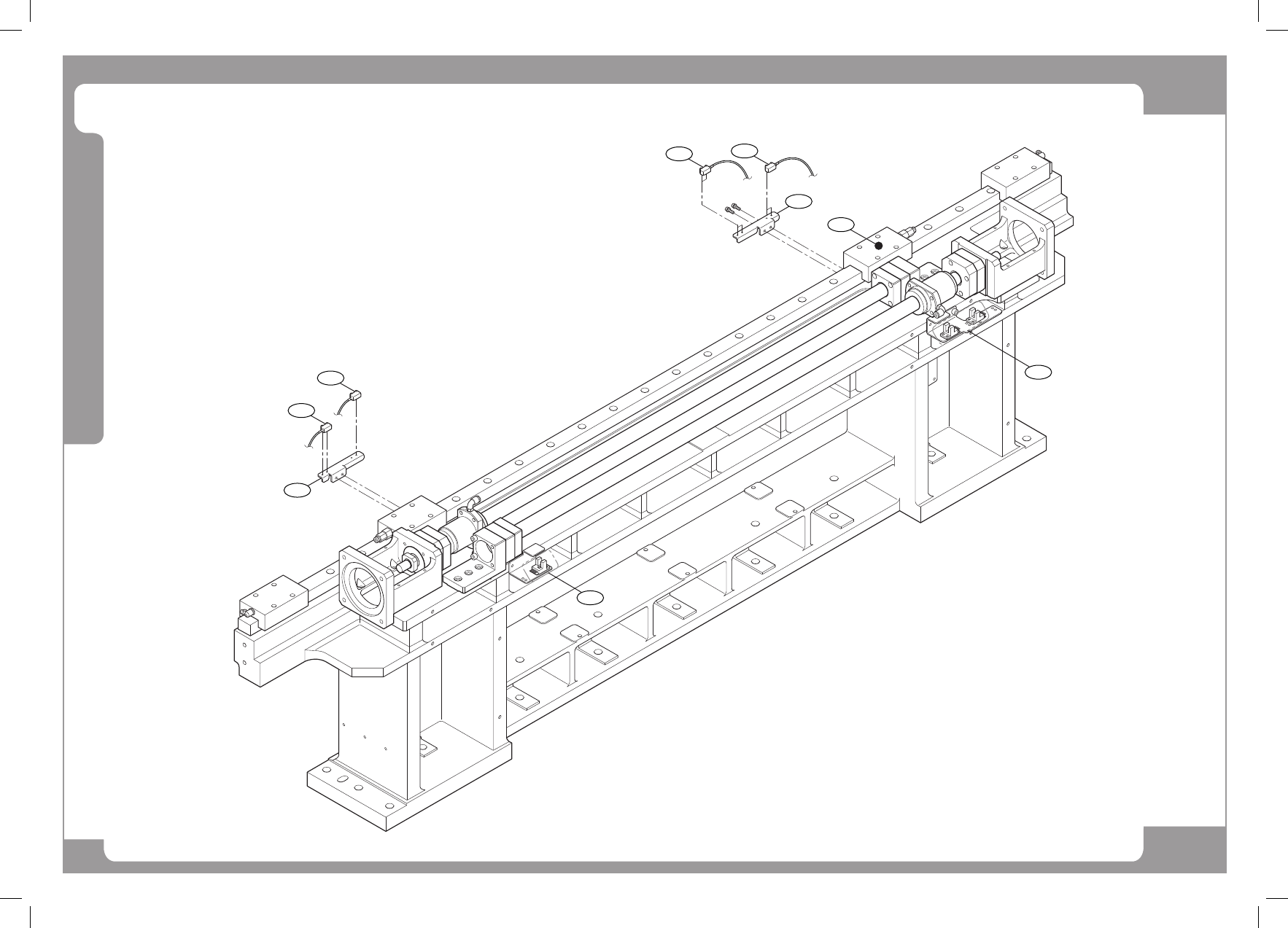

Y1-Frame Ass’y
F
.
R
R.
L
4
3
5
3
3
2
1
1
3
Page
SAMSUNG TECHWIN
28
SM411
Y1-Frame Ass’y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J3212022A PHOTO SENSOR
3
2 J66071013A LM GUIDE
1
3 J32110015B Photoelectric Switch
4
4 J70541102A FRONT SENSOR BKT1
1
J70541102A
5 J70541103A FRONT_SENSOR_BKT2
1
J70541103A
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
P art L is t
