Page
SAMSUNG TECHWIN
30
SM411
Y-Ball Screw Ass’y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J3108064A SERVO MOTOR
2
2 J66121007A COUPLING
2
3 J70541005A Y_MOTOR_BLOCK
2
J70541005A02
4 J6601124A SUPPORT UNIT
2
5 J72541006A STOPPER_Y_BALL_SCREW_FRONT
2
J72541006A
6 J66061002A BALL SCREW
2
7 J6061601000 DOWEL PIN
8
8 J72541004A STOPPER_Y_BALL_SCREW
2
J72541004A01
9 J6601020A BALL BEARING
2
10 J70541030A BRG_HOUSING_Y
2
J70541030A
11 J70541006A BS_REAR_SUPPORT
2
J70541006A
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
P art L is t
Page
SAMSUNG TECHWIN
31
SM411
9
11-A
11-B
11-A
11-C
11-C
13-D
4
4
3
2
5
6
7
10
11
8
1
12
4
4
Vac uum G enerator A s s 'y11
Vac uum G enerator A s s 'y13
13-A
13-E
13-B
13-C
13-F
13

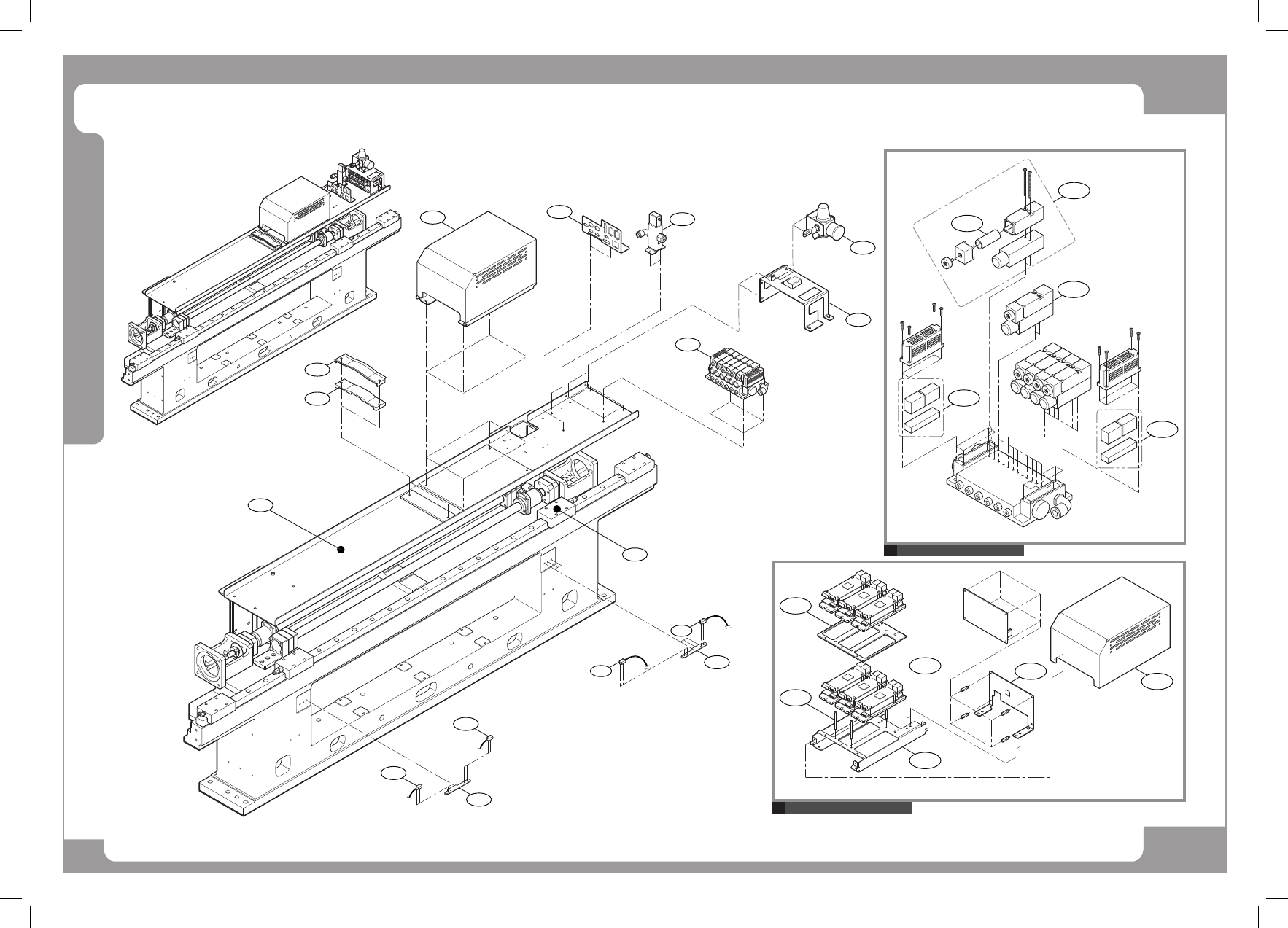

Y2-Frame Ass’y
Page
SAMSUNG TECHWIN
32
SM411
Y2-Frame Ass’y
13-F
13-E
13-D
13-C
13-B
13-A
SAMSUNG TECHWIN
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J66071013A LM-GUIDE
1
2 J70541102A FRONT_SENSOR_BKT1
1
J70541102A
3 J70541103A FRONT_SENSOR_BKT2
1
J70541103A
4 J32110015B PHOTOELECTRIC SWITCH
4
5 J70541012A Y_CABLE_DUCT_SUPPORT
1
J70541012A
6 J7354024A CABLE CUSHION Y
2
J7354024A
7 J7054256A CUSHION BRACKET Y
2
J7054256A
8 J70541101A CONNECTOR_PANEL-Y
1
J70541101A
9 J6709019A REGULATOR
1
10 J90831149A F_DOCKING_CART_SOL_CABLE_ASSY
1
SM33-CV028
11 J67071009A VACUUM_GENERATOR
1
11-A J6707020A VACUUM GENERATOR
6
11-B J6708019A VACUUM FILTER
6
11-C J6708020A VACUUM PART
2
12 J70541104A VACUMM_GEN_BKT
2
J70541104A
13
14
15
16
17
18
P art L is t
J90541010A DRIVER_BOX_ASSY
2
J90541010A
J70541034A DRIVER_BOX_BASE
1
J70541034A
J6103013A HEX SUPPORT
4
J70541036A DRIVER_BOX_PLATE
1
J70541036A
J70541037A SEDES_SLAVE_BOARD_BK
1
J70541037A
J70541035A DRIVER_BOX_COVER
1
J70541035A
J6103023A HEX SUPPORT
4
