Page SAMSUNG TECHWIN 66 SM411 E le ct ric D evi ce Ass’ y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J44011001A POWER SUPPLY 4 2 J29011001A NOISE FILTER(MAIN POWER SUPPLY) 1 3 J26051001A TRANSFORMER 1 4 J90511012A CO…
Page
SAMSUNG TECHWIN
65
SM411

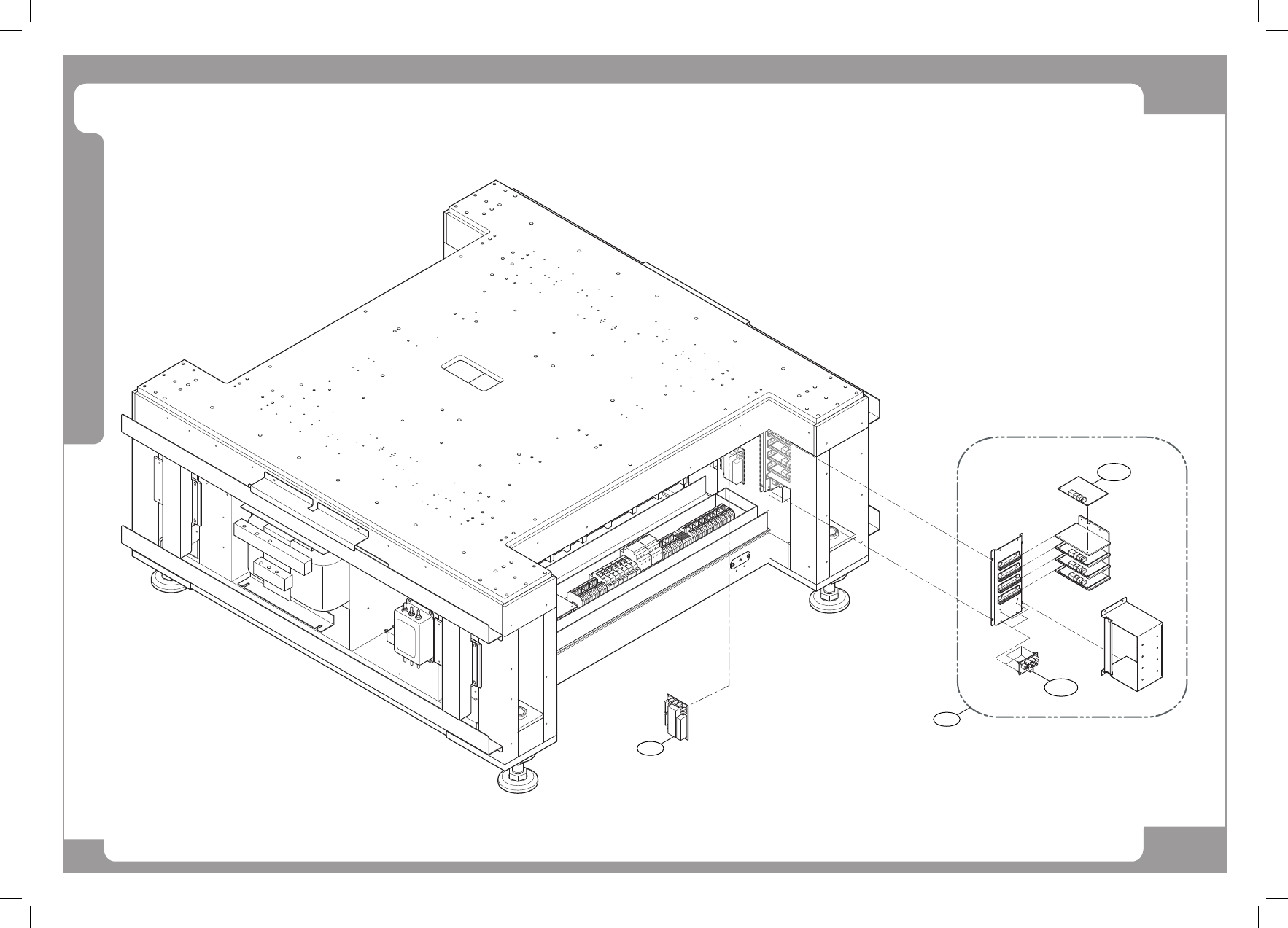

Electric Device Ass’y (3/3)
UF20TBH
NOISE FILTER
RATING: 450V2 0A
5
4
4-B
4-A
Page
SAMSUNG TECHWIN
66
SM411
Electric Device Ass’y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J44011001A
POWER SUPPLY 4
2 J29011001A NOISE FILTER(MAIN POWER SUPPLY)
1
3 J26051001A
TRANSFORMER 1
4
J90511012A CONVEYOR_STEP_MOTOR_DRIVER_ASSY 1 J90511012A
4-A
J31521002A STEP_MOTOR_DRIVER 4
4-B
J91741023A SM330_CONVEYOR_PWR_BOARD 2 VER1.0
5 J3716047A CROSS CONNECTION
6
6 J90600400B SAFETY CONTROL & DC POWER BOARD
1
J90600400B
7 J7251007A BOARD COVER
1
J7251007A
8 J3603015A CIRCUIT PROTECTOR
2
9 J3603016A CIRCUIT PROTECTOR
1
10 J3501040A MAGNETIC CONTACTOR
2
11 J3716042A STOPPER
2
12 J3716044A TEMINAL BLOCK
63
13 J3716046A END PLATE
11
14 J3716067A FUSE TERMINAL BLOCK
5
15 J3601019A FUSE
2
16 J3601018A FUSE
3
17
18
19
20
21
22
23
24
25
P art L is t
Page
SAMSUNG TECHWIN
67
SM411

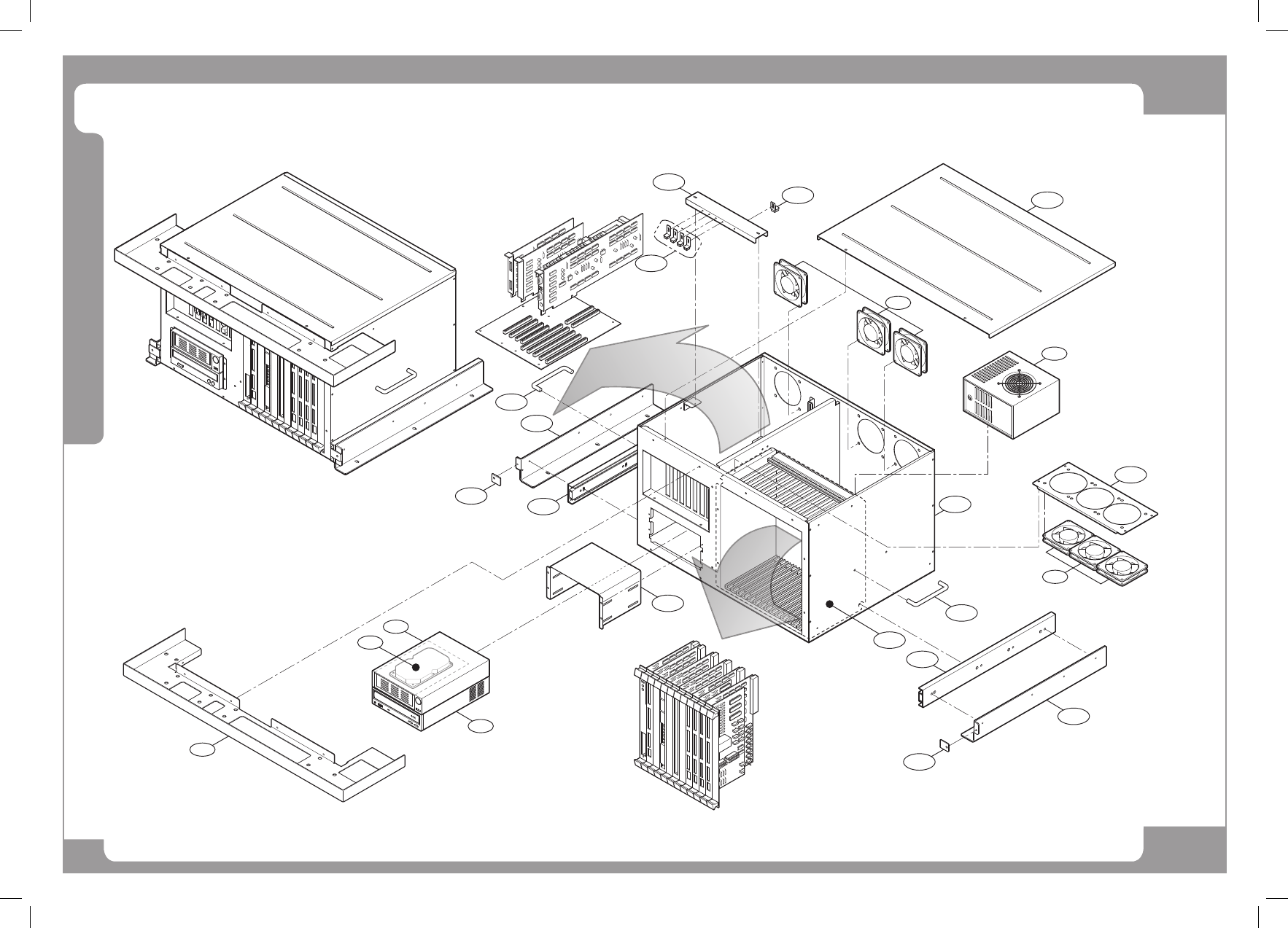

Control Rack Ass’y
5
7-H
7-G
7-L
7-M
2
3
7-M
1
7-H
7-A
7-L
7-K
7-K
7-I
7-J
7-B
7-C
7-D
7-E
4
6
8
