15 Pushing i n the Supply Unit CAUTION When pul ling out or pushing in the supp ly unit, mak e absolut ely sure, that the e lectrical cab les and pneuma tic lines do not get c aught or ev en pulled o f.  Push the s uppl…

Legend

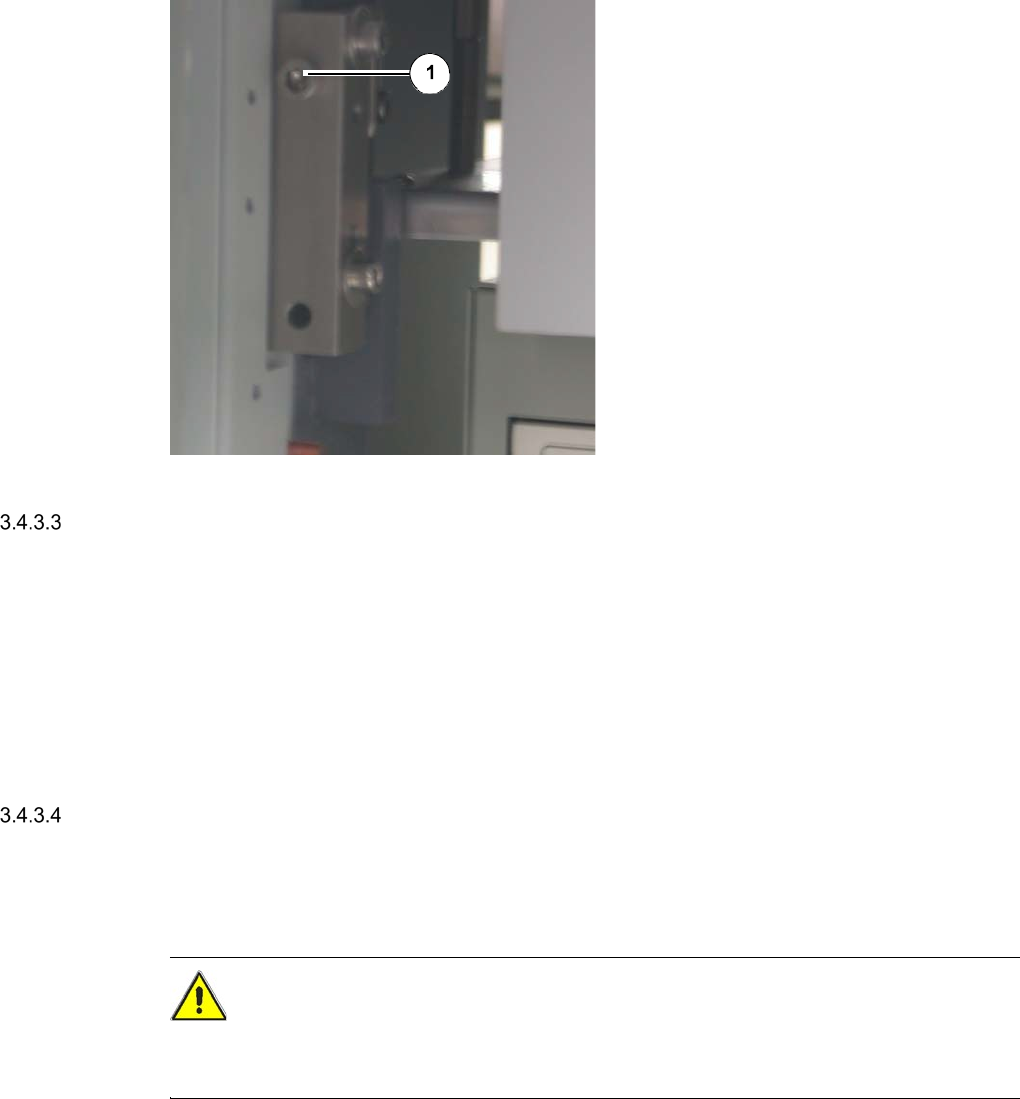

[1] Screw

 Remove the screw that fixes the magazine

lift to the SWS.

At locations 1 and 3 these screws are lo-

cated on the right side, at locations 2 and 4

on the left side.

 Swivel the magazine lift to the side.

The interior of the SWS is now accessible

via the front.

 Carry out the necessary maintenance work

and close the magazine lift.

Closing the Magazine Lift

 Swivel the magazine lift back to its initial position.

 Fix the magazine lift to the SWS with the two previously removed screws.

 Close the lower door of the magazine lift using the machine key.

 Swing the support foot of the SWS back in, so that it stands parallel to the SWS (See ”Fig.

2.5 - 1” on page - 20.).

Pulling out the Supply Unit

For maintenance work on components that must be accessible from the front and the side, it is

additionally necessary to pull out the supply unit.

CAUTION

When pulling out or pushing in the supply unit, make absolutely sure, that the electrical cables

and pneumatic lines do not get caught or even pulled of.

 Open the magazine lift (See ”Swiveling out the Magazine Lift” on page - 14.).

 Remove the two screws at the supply unit.

 Pull the supply unit out.

 Carry out the necessary maintenance work and push the supply unit back in.

Pushing in the Supply Unit

CAUTION

When pulling out or pushing in the supply unit, make absolutely sure, that the electrical cables

and pneumatic lines do not get caught or even pulled of.

 Push the supply unit into the SWS.

 Fix the supply unit with the two previously removed screws.

 Close the magazine lift (See ”Closing the Magazine Lift” on page - 15.).

Using the Multipette

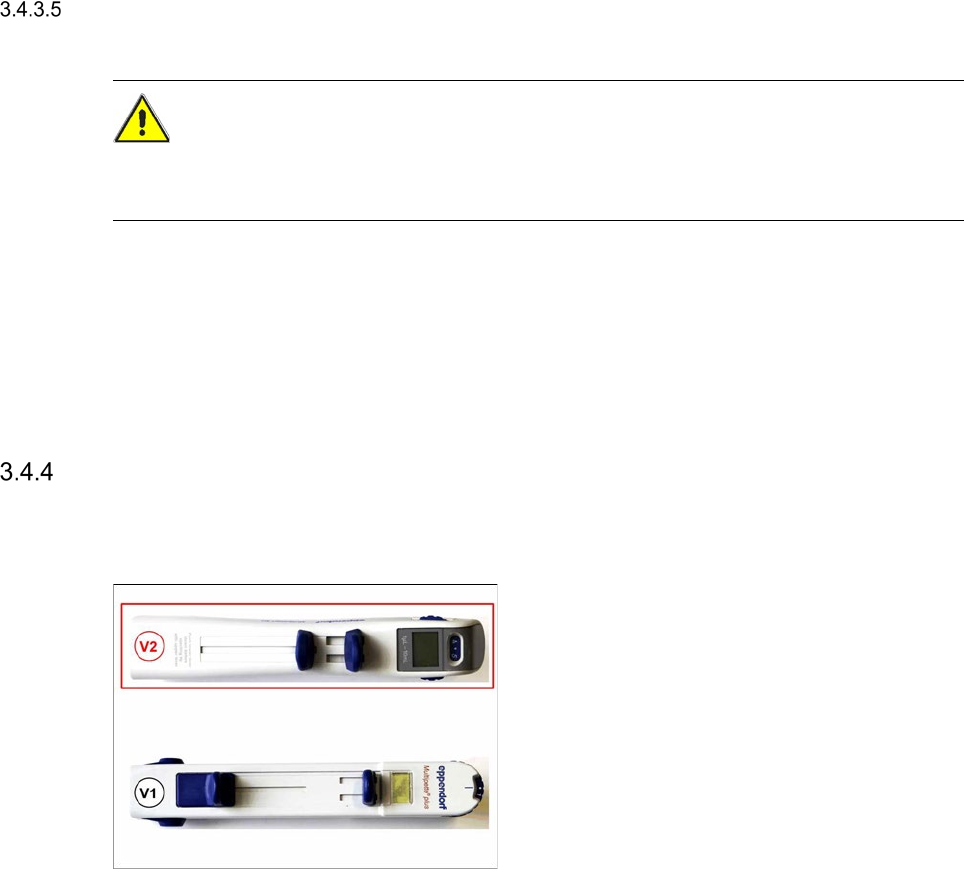

Use the Multipette V1 or V2for lubricating the linear guides of the flip chip unit and the die attach unit.

Both Multipettes have identical features, the handling for both versions is decribed in following

sub-chapters.

If you place a new order, you will receive the Version 2!

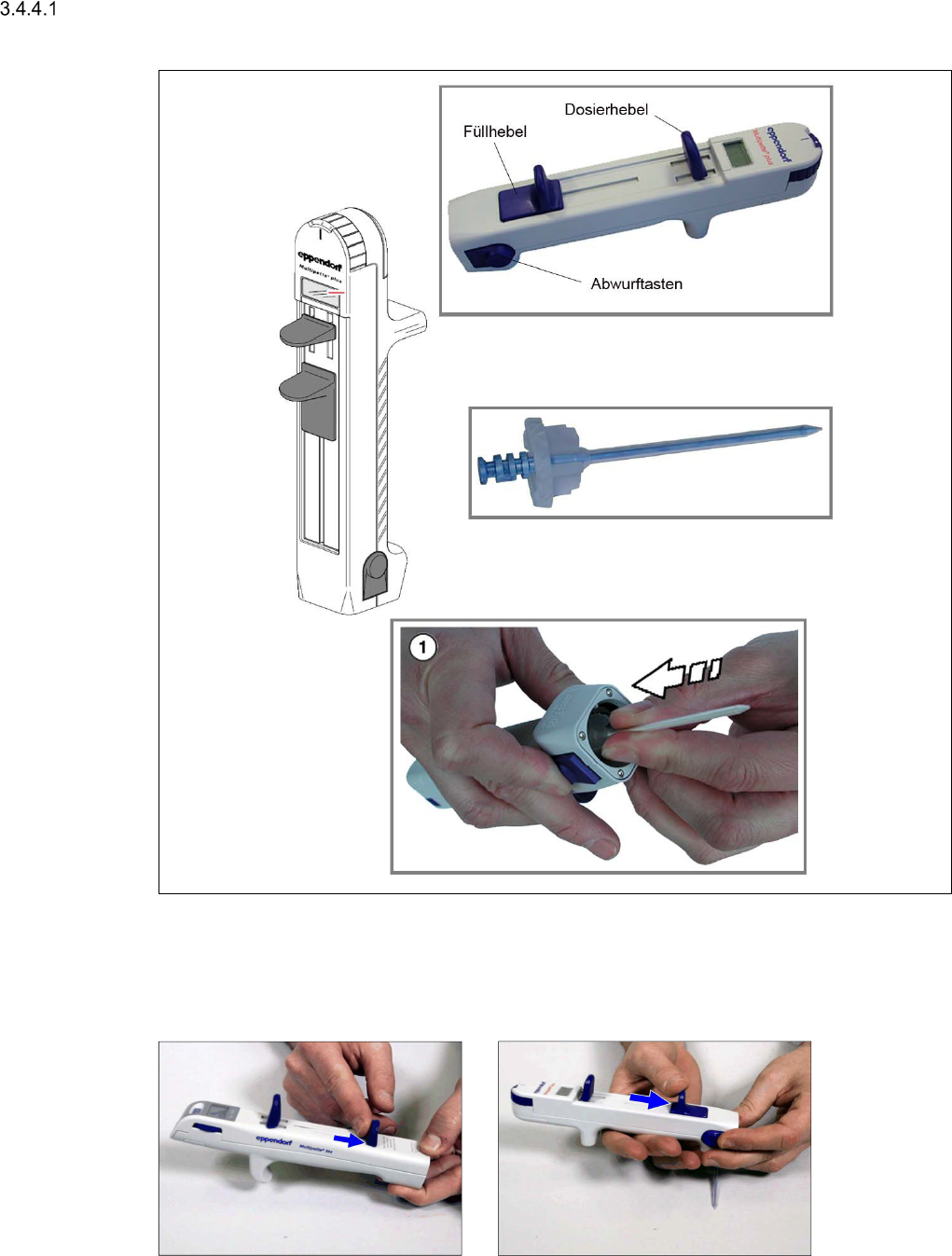

Assembling the Multipette

 Press the filling slider of the Multipette completely down and hold it there.
