39
.
►

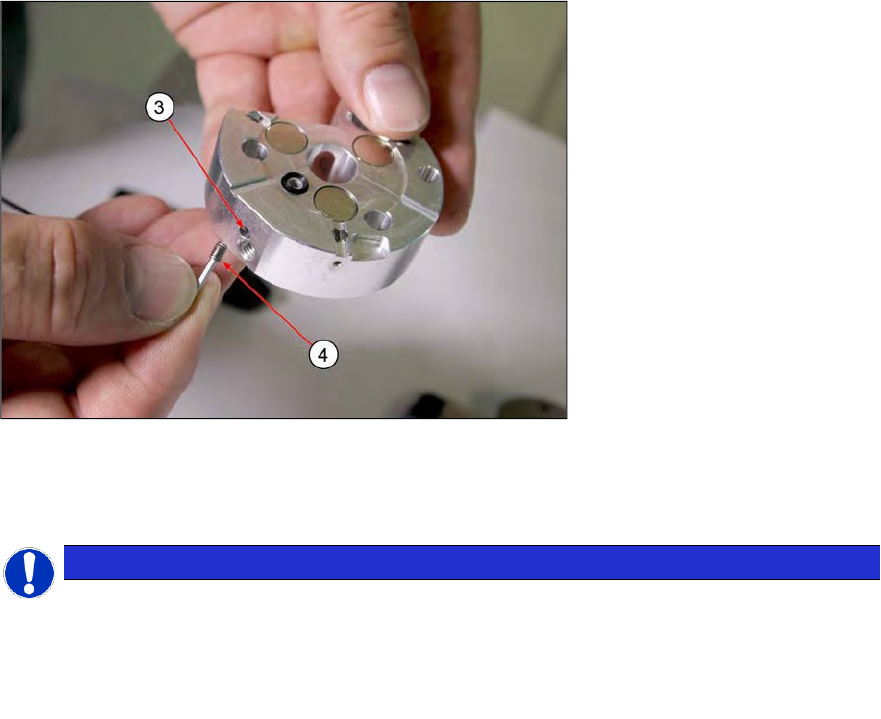

► Screw the grub screw [4] into the threaded hole provided [3] and fix the sealing unit into
place (tighten with care).
Finally Complete the die ejector.
NOTICE
Old needle ejector unit with bayonet fastening
► If the side Allen screw on the centering unit is difficult to access, you may need to
remove the four screws fastening the lock ring and remove this ring.
► Place the lock ring back and fix into place, before tightening the Allen screw on the
side.
Lubricating the Shaft for the Z Movement at the Needle System
Interval: 4 months
Equipment: Spray grease (aerosol)
The shaft for the Z movement (ejection) must be easily movable by hand in its bronze guide and
should therefore be lubricated regularly.
Legend
[1] Lubrication point
Slightly move the Z shaft out of its bronze guide.
Spray a bit of spray grease on the lubrication points shown [1].
41
1
Checking the Rotary Locking for Ease-of-Movement
Interval: 6 months
Equipment: None
The rotary locking that fixes the the needle system must be easily rotatable. The needle system
inserted must be placed securely in the locking.
Legend
[1] Rotary locking open
[2] Rotary locking with fixed suppression pin
Check, if the rotary locking is free of debris and clean it if necessary.
Vertically, insert the needle system into the rotary locking.
Turn the rotary locking counterclockwise, until the suppression pin is fixed correctly [2].
