Checking the Nozzle Attachment at Die-Attach-Modul for Leaks
Interval: 3 months
Equipment: Vacuum
CAUTION
For this check the Service user level is required in SWS GUI. Only appropriately trained personal
is allowed to carry out this check.
- SWS must be referenced.
- Open any cover from the CA-Placement machine, to get access to the SWS
The power supply to the gantry axes and the SWS axes is interrupted immediately. The gantry
axes and all SWS axes will come to a standstill. A corresponding message is issued on the
screen. Skip the message.
Change to Menu Manual operations [1] -> Manual operations subsystems [2] -> IOs [3] (see
Screenshot below)
Change to Menu Manual operations USBIO [1] and select folder USB outputs [2] (see
Screenshot below) and switch off all Vacuum consumers (Dxx Vacuum …) by pressing OFF
buttons (see. 3), in case one of these outputs is active. This has to be done also for all air
supply consumer outputs (Dxx Pressure ...) (see 3).
49
Change back to previous Menu Manual operations -> Manual operations subsystems ->
IOs -> Manual operations USBIO -> USB programs [1] and read out the Main Vacuum
Value under Main Vacuum [mbar] (see Screenshot below).
Keep in mind, that the vaccumpump must be switched off like in the screenshot below..
The Main Vacuum Value should have at least min. 700 mbar. See Screenshot above. Write
down this value!

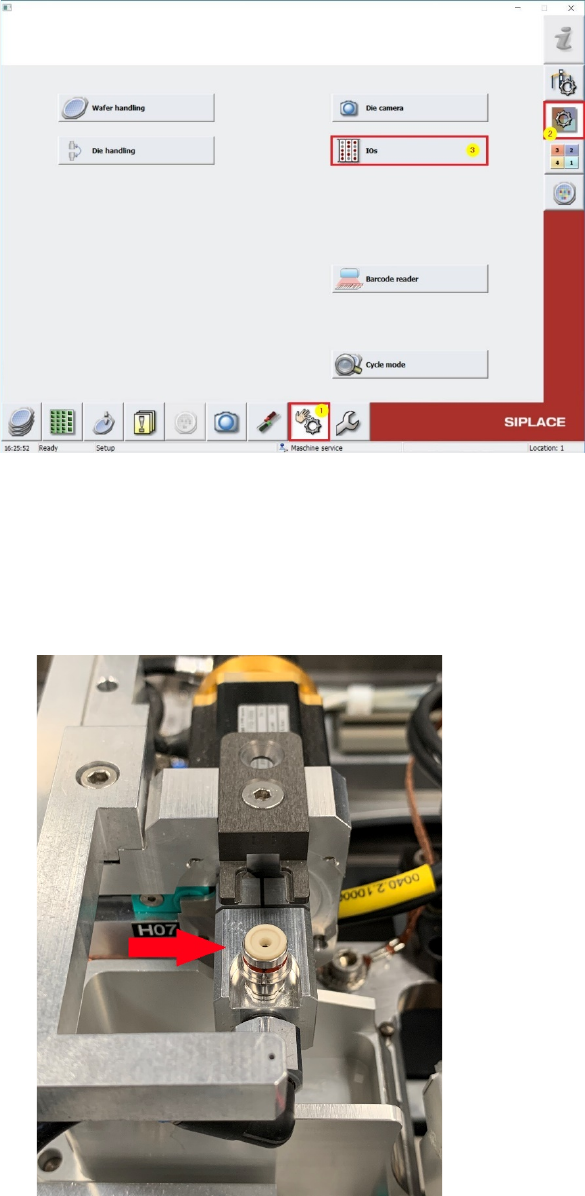

Change to Menu Manual operations [1] -> Manual operations subsystems [2] -> IOs [3]
(see Screenshot below)
Turn the Die-Attach Segemtn to Top position and close the nozzle or the vaccum plate with, for
example your finger!
