Checking the Coupling at the Gripper
Interval: 6 months
Equipment:
Hexagon socket spanner 1.5
The coupling at the gripper is covered by a plate.
Legend
[1] Cover plate of the coupling
[2] Openings above the fastening screws
Manually, turn the coupling into a position,
where you can access the fastening
screws through the openings.
If necessary, tighten the fastening screws.
Checking the Coupling of the Magazine Lift
Interval: 6 months
Equipment:
Hexagon socket spanner 2.5
The coupling for the Z direction is located at the bottom of the magazine lift.
If necessary, tighten the fastening screws.
Check the protective boot for signs of rup-
ture. In case of damage, the coupling must
be exchanged.
57
Maintenance Work at the Flip Unit
To get access to the flip unit, first remove the EMC cover and then the cover above the flip head.
Remove the six hexagon socket screws fixing the EMC cover and lift the cover off.
Remove the two hexagon socket screws fixing the cover above the flip head and lift the cover
off.
Carry out the required tasks.
After completing your work, replace the covers and fix them.
Magnetic field warning
The flip unit contains a strong magnet. Make sure, that no metallic objects get into the vicinity of
the flip unit, since they are attracted by the magnet.
– Do not carry out any tasks at the flip unit exceeding the maintenance work. In case of a defect
the flip unit is replaced as a whole.
Cleaning the Raceway and the Retract Unit
Interval: Weekly
Equipment:
Ethyl alcohol, cleaning buds, lint-free
Legend
[1] [1] Crank
[2] Rotary part
[3] Cleaning buds

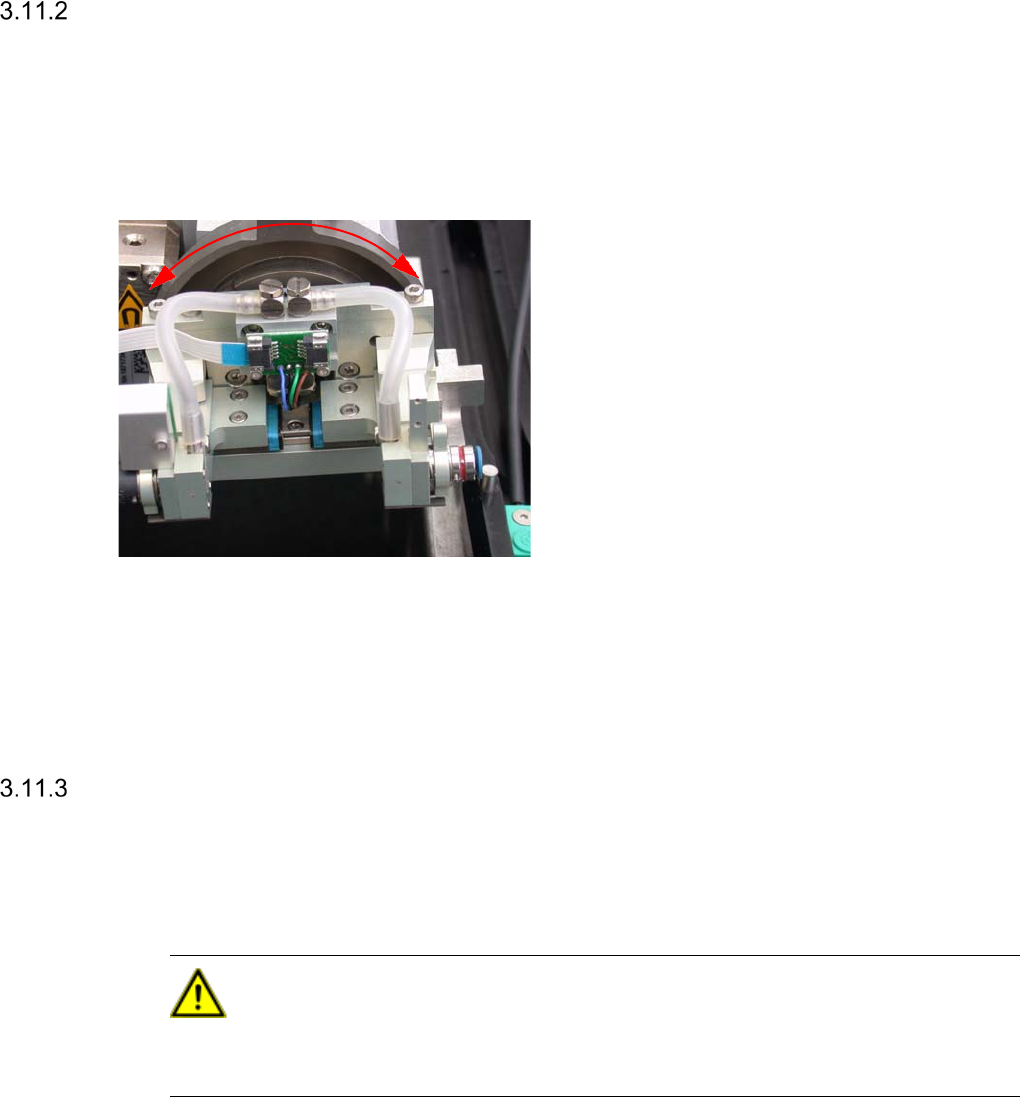

Clean the crank [1] around the rotary part
[2] with a cleaning bud or with cleaning bud
moistened with ethyl alcohol.
Checking the Rotary Part for Ease-of-Movement
Interval: 3 months
Equipment:
None
Move the rotary part within the raceway
back and forth in the direction of the ar-
rows.
It must be easily turnable and must not get
caught anywhere.
In case of a defect of the linear bearings
the whole flip unit has to be replaced (see
the Service Manual for further details).
If there is a rough movement of the ball
baering at the edges of the raceway from Z-
Axis to Die-Attach, the position from the
“Retract”-Cylinder must be adjusted according
Servicemanual
Checking the Nozzle Attachment for Leaks
Interval: 3 months
Equipment:
Vacuum
CAUTION
For this check the Service user level is required in SWS GUI. Only appropriately trained personal
is allowed to carry out this check.
- SWS must be referenced.
- Open any cover from the CA-Placement machine, to get access to the SWS
The power supply to the gantry axes and the SWS axes is interrupted immediately. The gantry
axes and all SWS axes will come to a standstill. A corresponding message is issued on the
screen. Skip the message.
