65 Checking Connected Cables and Lines Interval: Year ly Equipment: 00385451 - 01 FPC F lex Cable J umper 5P ol L ength =2, 2 ( Inch ) (Servicbox) L egend [1] Connect ion points o f the vacuum lines [2] Cable for touch d…
Legende:
[1] Reject bin for chips
[2] Magnetic contact surface
[3] Sensor
Empty the reject bin
Clean the underside oft he bin and the magnetic contact surfaces with a lint free cloth. All
surfaces must be free of dirt, to ensure the correct positioning of the reject bin.
Clean the sensor with a lint free cloth.
Lubricating the Linear Guides from Rotary Part
Interval: 4 months
Equipment:
Multipette, Lubcon Thermoplex ALN 1001/00D
CAUTION
Be especially careful, when lubricating the linear guide.
No lubricant must get onto the reading unit.
Linear guide at the rotary part

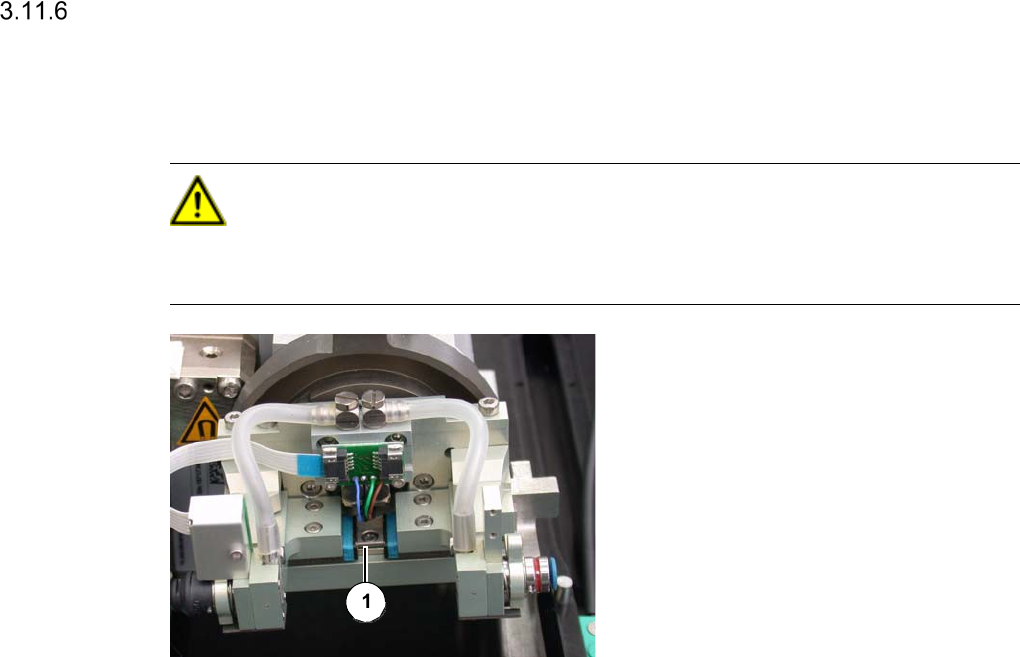

Legend
[1] Linear guide
Fill the Multipette (See ”Filling and Setting the Multipette” on page - 18.).
Apply 4µl lubricant onto the Z axis.
Manually move the Z axis up and down for approx. 5 times.
Apply another 4µl lubricant.
Manually move the Z axis up and down for another 5 times.
Remove excess lubricant with a lint-free cloth.
65
Checking Connected Cables and Lines
Interval: Yearly
Equipment: 00385451-01 FPC Flex Cable Jumper 5Pol Length=2,2 (Inch) (Servicbox)

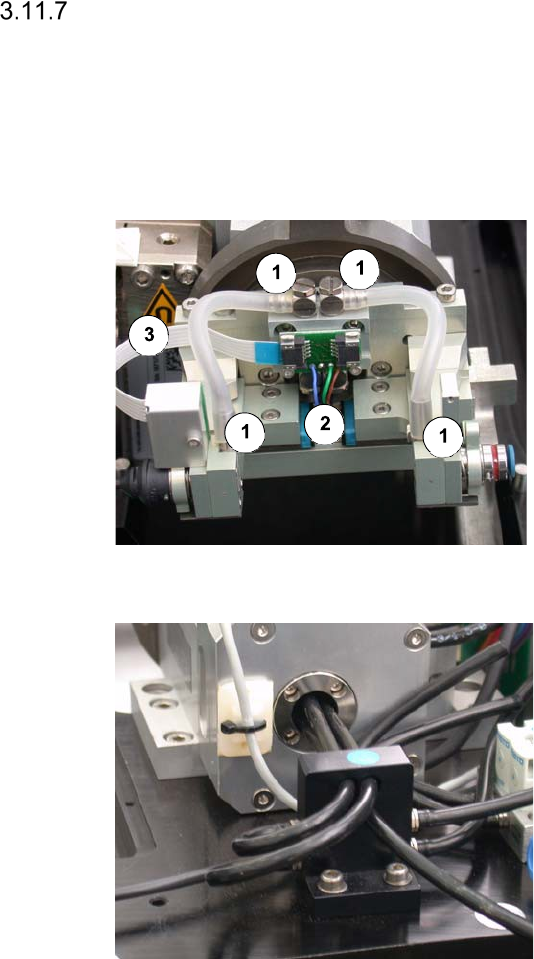

Legend
[1] Connection points of the vacuum lines
[2] Cable for touch down sensor
[3] Flat ribbon cable
Check the cables and lines connected to
the rotary part for secure position and
signs of wear or rubbing.
In case, replace the cable 00385451-01
Make sure, that the flat ribbon cable has an
appropriate radius, to prevent it from being
buckled.
Check the cables and lines that come out
of the rear side of the hollow shaft motor for
secure position and signs of wear or rub-
bing.
No objects or anything else must lie
against the surface of the moving calbes
(hoses).
Maintenance Work at the Gripper
Cleaning the Gripper Jaws
Interval: Weekly
Equipment:
Ethyl alcohol, cleaning buds, lint-free

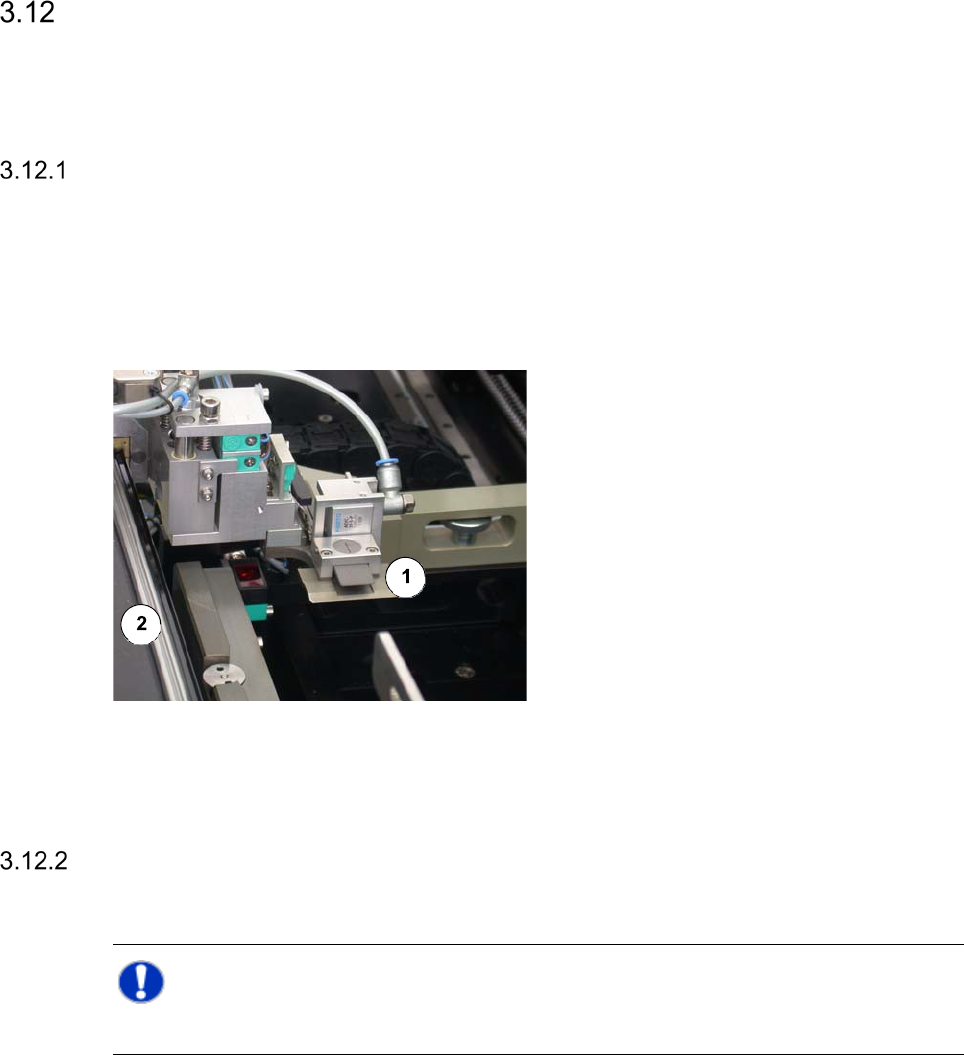

Legend
[1] Gripper jaws
[2] Guide rail
Clean the gripper jaws with a cleaning bud
moistened with ethyl alcohol.
Cleaning the Guide Rail
NOTE
The guide rail of the gripper has got a lifetime lubrication, so that it is only necessary to clean it.
Interval: 1 month
Equipment:
SIPLACE cleaning tissue
Wipe the guide rail of the gripper with a SIPLACE cleaning tissue.
