Maintenance Work at the Gripper
Cleaning the Gripper Jaws
Interval: Weekly
Equipment:
Ethyl alcohol, cleaning buds, lint-free
Legend
[1] Gripper jaws
[2] Guide rail
Clean the gripper jaws with a cleaning bud
moistened with ethyl alcohol.
Cleaning the Guide Rail
NOTE
The guide rail of the gripper has got a lifetime lubrication, so that it is only necessary to clean it.
Interval: 1 month
Equipment:
SIPLACE cleaning tissue
Wipe the guide rail of the gripper with a SIPLACE cleaning tissue.
67

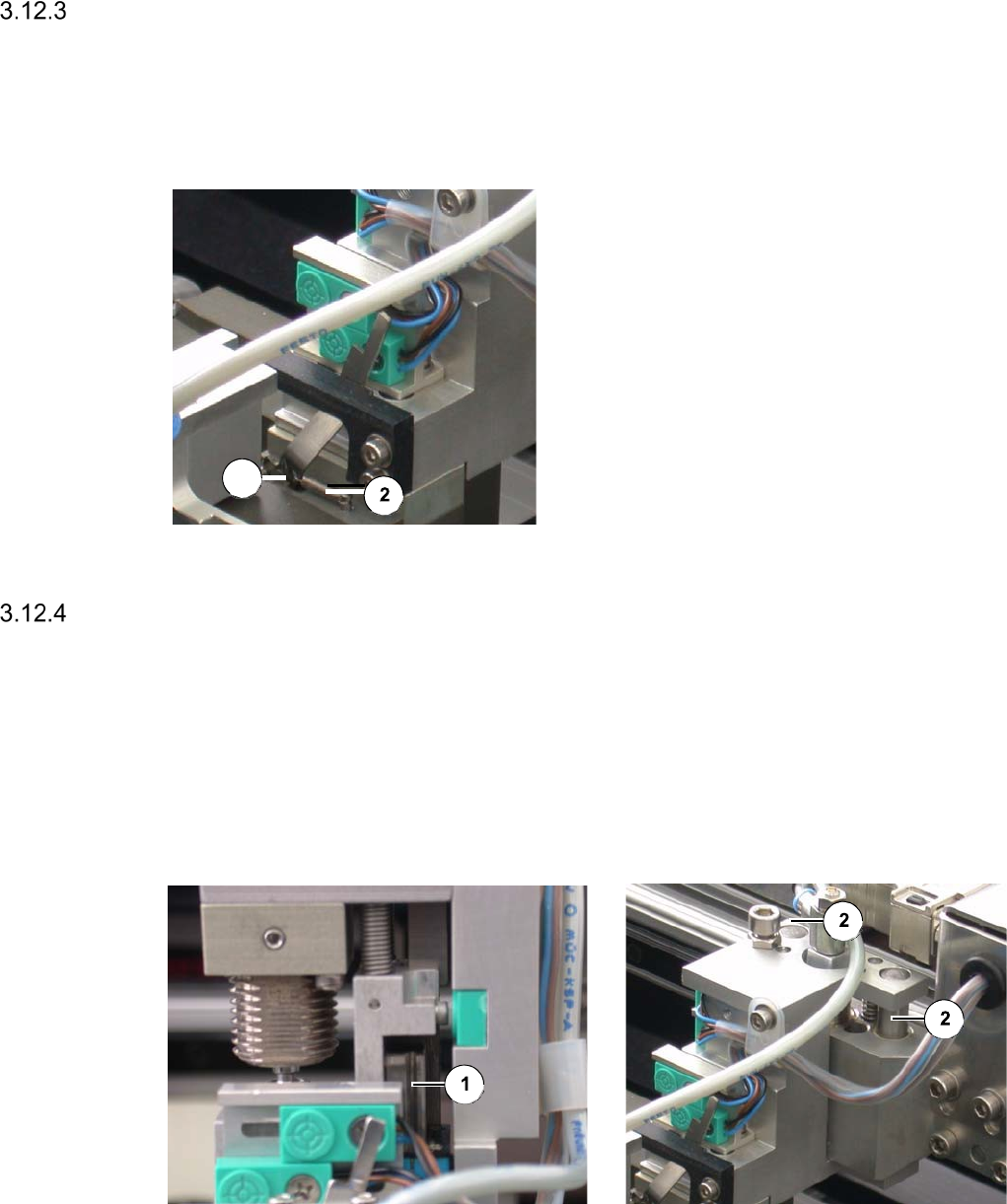

Lubricating Bearings and Driver Groove at the Sensor Lever
Interval: 1 month
Equipment:
Spray grease (aerosol)
Legend
[1] Bearing of the sensor lever with
driver groove behind it
[2] Return spring
Carefully, lubricate the bearing of the sen-
sor lever at the spring suspension.
In doing so, the driver groove is lubricated
at the same time.
Remove any excess lubrication.
Control the return spring for damage.
Lubricating or Cleaning the Z Guide
Depending on the gripper version (for left or right location) the Z guide consists of a sliding guide
with springs (right location) or of a linear carriage with springs (left location).
Interval: 1 month
Equipment:
Multipette, Lubcon Thermoplex ALN 1001/00 (left location)
SIPLACE cleaning tissue (right location)
Gripper - Z guide at left location Gripper - Z guide at right location
Legend
[1] Linear carriage [2] Sliding guide
1
Lubricating the Z Guide at the Left Location
Fill the Multipette (See ”Filling and Setting the Multipette” on page - 18.).
Apply 4µl lubricant onto the linear carriage.
Manually move the linear carriage back and forth for approx. 5 times.
Apply another 4µl lubricant.
Manually move the linear carriage back and forth for another 5 times.
Remove excess lubricant with a lint-free cloth.
Cleaning the Z Guide at the Right Location
Wipe the bolt of the sliding guide with a SIPLACE cleaning tissue.
