KGX_w-ATS(YG)_PL - 第3页
1 1 Cover Cover KGX-091019 9 7 12 25 11 6 25 25 25 20 21 25 25 13 28 18 25 26 25 14 15 1 26 26 26 19 5 25 24 32 23 31 10 8 22 29 3 2 25 31 27 17 16 4 35 34 33 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K…
Contents
KGX-0505
1
Cover Section
Cover............................................................... 1-1
Door ................................................................ 1-2
2
Z-axis Section
Z-axis ............................................................... 2-1
Z-axisSub Assy ................................................. 2-2
3
Rack / Pallet Section
Rack Assy. / Pallet Assy. .................................. 3-1
4
Magazine Section
Magazine Base ................................................ 4-1
Rack Stage ....................................................... 4-2
Shutter+Racklook ............................................ 4-3
5 Hook Section
Hook ............................................................... 5-1
Plunger,Sopper,Hand,Hooks sub ..................... 5-2
6
System Parts Section
System Parts .................................................... 6-1
1
1
Cover
Cover
KGX-091019
9
7
12
25
11
6
25
25
25
20
21
25
25
13
28
18
25
26
25
14
15
1
26
26
26
19
5
25
24
32
23
31
10
8
22
29
3
2
25
31
27
17
16
4
35
34
33
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KGX-M1301-00X BLOCK A 4
2 KGX-M1301-10X BLOCK B 2
3 KGX-M1302-00X COVER BOTTOM 2
4 KGX-M1303-01X BRACKET IND 2
5 KGX-M1304-L0X COVER IND L 1
6 KGX-M1304-R0X COVER IND R 1
7 KGX-M1305-00X COVER TOP 1
8 KGX-M1306-01X BRKT. SW. 2
9 KGX-M1307-00X COVER SW. 1
10 KGX-M1308-00X COVER BRAKE SW. 2
11 KGX-M1309-00X COVER BASE 2
12 KGX-M1310-00X COVER BRKT. BASE 2
13 KGX-M1311-00X BRKT. COVER UNDER 1
14 KGX-M1312-L0X COVER UNDER L 1
15 KGX-M1312-R0X COVER UNDER R 1
16 KGX-M1313-00X BRKT. COVER 1 2
17 KGX-M1314-00X BRKT. COVER 2 2
18 KGX-M13A0-00X DOOR-L ASSY. 1
19 KGX-M13A0-00X. DOOR-L ASSY. 1 with VALVE
20 KGX-M13B0-00X DOOR-R ASSY. 1
21 KGX-M13B0-00X DOOR-R ASSY. 1 with VALVE
22 KGX-M17C0-00X MAGAZINE BASE ASSY 1
23 KGW-M4578-01X INDCATE BOARD 4
24 K16-90105-000 THIN HEAD 8
25 90990-12J001 SCREW,BIN. HEAD W/W 68
26 91314-04008 BOLT HEX.SOCKET HEAD 28 M4X8
27 91314-05008 BOLT HEX.SOCKET HEAD 4 M5X8
28 91317-05006 BOLT HEX.SOCKET HEAD 4 M5X6
29 92903-04200 WASHER PLAIN 16
30 92903-05200 WASHER PLAIN 4
31 90563-03J050 SPACER 24
32 98904-03004 SCREW BINDING HEAD 24
33 KGK-M4590-00X I/O TF BOARO ASSY 1
34 90563-03J100 SPACER BOLT 1
35 KGX-M13C1-000 BRACKET 1
2
1

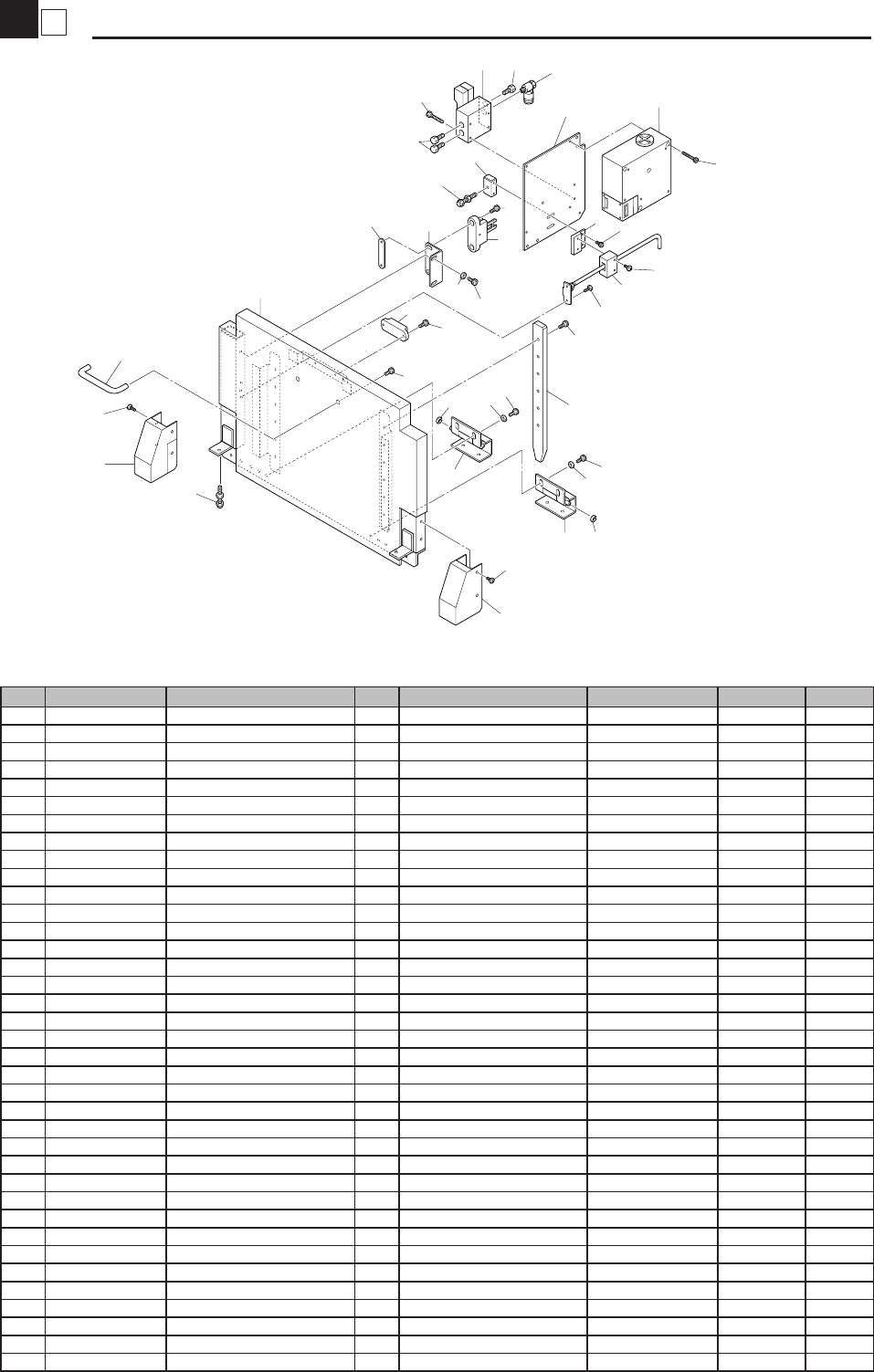

Door
Cover
KGX-0505
18
30
36
3516
27
8
10
28
26
13,14
33
23
32
25
24
26
21
11
17
29
9
6
7
1,2
15
19
3
34
34
12
12
4
19
5
9
31
22
20
31
22
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGX-M13A1-00X COVER 1,DOOR-L 1 for Left
2 KGX-M13B1-00X COVER 2,DOOR-R 1 for Right
3 KGX-M13A2-L0X COVER 2,DOOR-L 1
4 KGX-M13A2-R0X COVER 2,DOOR-R 1
5 KGX-M13A3-00X GUIDE RACK DOOR 2
6 KGX-M13A4-00X BRACKET KEY 1
7 KGX-M13A5-00X NUT PLATE 1
8 KGX-M13A6-00X BRACKET SAFETY 1
9 KGX-M13A7-00X STOPPER BOLT 3
10 KGX-M13A8-00X BRACKET STAY 1
11 KGX-M13A9-00X NUT BLOCK 1
12 KGF-M1313-00X CHANNEL HINGE 1
13 KGF-M1316-00X STAY L 1 for Left
14 KGF-M1316-10X STAY R 1 for Right
15 KGF-M1335-00X PULL 1
16 KH2-M7101-00X VALVE 1 1
17 KW7-M5127-00X SAFETY SWITCH KEY 4
18 KGW-M5126-00X SWITCH SAFETY 1
19 K16-90105-00X THIN HEAD 4
20 K40-M8598-00X PLUG 1 2
21 K44-M1354-00X MG. CATCH 1
22 91314-04006 BOLT HEX.SOCKET HEAD 4 M4X6
23 91314-04010 BOLT HEX.SOCKET HEAD 12 M4X10
24 91314-05010 BOLT HEX.SOCKET HEAD 2 M5X10
25 91317-03006 BOLT HEX.SOCKET HEAD 2 M3X6
26 91317-03010 BOLT HEX.SOCKET HEAD 4 M3X10
27 91317-03025 BOLT HEX.SOCKET HEAD 2 M3X25
28 91317-04005 BOLT HEX.SOCKET HEAD 4 M4X5
29 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
29-1 KGS-M1360-00X BOLT 2 (2007/12/21) MDY0097 OK
30 91317-04030 BOLT HEX.SOCKET HEAD 3 M4X30
31 92903-04200 WASHER PLAIN 4
32 92907-03200 WASHER PLAIN 2
33 98704-03006 SCREW FLAT HEAD 4
34 99001-04600 CIRCLIP : 2
35 $KM-10 MUFFLER 1
36 $SL6-01 JOINT 1
