KGX_w-ATS(YG)_PL - 第7页
1 3 Rack Assy . / Pallet Assy. Rack / Pallet KGX-2002 22 1 2 3 4 5 6 7 8 9 10 71 20 30 30 11 12 13 14 15 16 17 18 19 21 23 23 24 25 25 26 26 27 28 29 31 OLD 32 33 34 35 36 37 70 5 72 72 71 No. Part No. Part Name Q't…
Z-axis Sub Assy.
Z-axis
22
KGX-0505
17
25
16
8
9
26
20
14
27
18
10
22
28
29
6
30
27
5
13
19
32
21
33
3
2
11
15
29
12
1
31
7
4
24
23
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KGX-M1703-00X PLATE 1 1
2 KGX-M1704-00X PLATE 2 1
3 KGX-M1705-00X PLATE 3 1
4 KGX-M1706-00X BALL SCREW, Z AXIS 1
5 KGX-M1707-00X SLIDE BUSH 2
6 KGX-M1708-00X SHAFT 1 2
7 KGX-M1709-00X SHAFT HEX 4
8 KGX-M170A-00X PLATE 4 1
9 KGX-M170B-00X PULLEY 1, Z AXIS 1
10 KGX-M170C-00X PLATE 5 1
11 KGX-M170D-01X ARM 1 2
12 KGX-M170E-00X STOPPER 1 2
13 KGX-M170F-00X STOPPER 2 2
14 KGX-M170G-00X BELT(B150S3M246) 1
15 KGX-M170H-00X ARM 2 2
16 KH2-M1725-01X BRAKE MAGNETIC 1
17 KH2-M1726-01X COVER BRAKE 1
18 KH2-M1728-10X PULLEY 1 1
19 KV4-M1734-00X WASHER 4
20 KV7-M2604-00X SUPPORT UNIT 1
21 90933-01J001 BEARING 1
22 90K63-411313 AC SERVO MOTOR 1
23 91317-03010 BOLT HEX.SOCKET HEAD 4 M3X10
24 91317-03025 BOLT HEX.SOCKET HEAD 3 M3X25
25 91317-04006 BOLT HEX.SOCKET HEAD 2 M4X6
26 91317-04012 BOLT HEX.SOCKET HEAD 4 M4X12
27 91317-05010 BOLT HEX.SOCKET HEAD 12 M5X10
28 91317-05012 BOLT HEX.SOCKET HEAD 8 M5X12
29 91317-05015 BOLT HEX.SOCKET HEAD 8 M5X15
30 91317-05018 BOLT HEX.SOCKET HEAD 4 M5X18
31 91317-08012 BOLT HEX.SOCKET HEAD 2 M8X12
32 91317-08015 BOLT HEX.SOCKET HEAD 2 M8X15
33 99009-12400 CIRCLIP : 1
1
3
Rack Assy. / Pallet Assy.
Rack / Pallet
KGX-2002
22
1
2
3
4
5
6
7
8
9
10
71
20
30
30
11
12
13
14
15
16
17
18
19
21
23
23
24
25
25
26
26
27
28
29
31
OLD
32
33
34
35
36
37
70
5
72
72
71
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KGX-M1731-00X PLATE,BOTTOM 1
2 KGX-M1732-01X FRAME,RACK 1
3 KGX-M1733-01X CARD GUIDE 2
4 KGX-M1734-00X STOPPER,PALLET 1
5
KGX-M1735-00X DOOR,RACK 1
KGX-M1735-01X DOOR,RACK 1 Conpati OK 2005/12/1 MBX0151
6
KGX-M1736-00X HINGE ASSY 1
7
KGX-M1737-00X LABEL,PALLET POSI. 1 (1~15)
KGX-M1373-10X LABEL,PALLET POSI. 1 (16~30)
8 KGX-M1738-00X SPACER 2
9 KGX-M1739-00X THIN HEAD 4
10 KGX-M173A-L0X LATCHE 1
11 KGX-M173A-R0X LATCHE 1
12 KGX-M173B-00X BRKT.LATCHE 2
13 KGX-M173C-00X STOPPER BRKT. 2
14 KGX-M173H-00X HANDLE 2
15 KGX-M173J-00X SPRING 2
16 KGX-M173K-00X BOLT 1
17 KGX-M173L-00X SHAFT 1
18 KGX-M173M-00X SHAFT CLIP 1
19 KGX-M173N-00X BRACKET 1
20 KGX-M173P-00X DOOR,RUBBER 2
21 K93-M1392-00X SPACER (TM-180-303) 4
22 90115-2AJ008 BOLT HEX.SOCKET HEAD 2
23 91314-03005 BOLT HEX.SOCKET HEAD 6
24 91314-04006 BOLT HEX.SOCKET HEAD 4
25 98904-03004 SCREW BINDING HEAD 20
26 98904-03006 SCREW BINDING HEAD 6
27 98904-04005 SCREW,BINDING HEAD 8
28 98704-05008 SCREW,FLAT HEAD 4
29 98704-05010 SCREW FLAT HEAD 2
30 92903-03200 WASHER PLAIN 8
31 92903-04200 WASHER PLAIN 8
32 KGX-M1751-00X PALLET 1
33 KGX-M1752-00X SHEET 1
34 KGX-M1753-00X PLATE MAGNET 1
35 KGX-M1754-00X PLATE 1 1
36 KGX-M1755-00X MAGNET 2
37 K16-90105-00X BOLT: TP-M3X6 2
39 KM4-M7173-00X LOCATING PIN 7
40 KM1-M7127-00X SPRING POST 1
41 KV6-M655A-00X SENSOR,1-1 1
42 KV6-M655B-00X SENSOR,1-2 1
43 KG2-M2284-00X SPG.MAIN 1
44 90K50-41076A AC SERVO MOTOR 1
45 90K50-4W076C MOTOR ASSY 1
46 90185-06J00 NUT U 1
47 99009-15400 CIRCLIP 1
48 SL10-02 JOINT 1
49 SL8-02 JOINT 1
50 TL4-02 JOINT 1
51 SL4-M5 JOINT 1
52 92907-03200 WASHER,PLAIN 8
53 91317-03005 BOLT HEXAGON,SOCKET HEAD 8
54 92A08-03005 SCREW,SET 2
55 93604-08062 PIN DOWEL 1
56 95307-06600 NUT HEXAGON 1
57 95307-05600 NUT HEXAGON 3
58 95307-04600 NUT HEXAGON 1
59 91317-05020 BOLT HEXAGON,SOCKET HEAD 1
60 98704-04010 SCREW,FLAT HEAD 2
61 98903-03005 SCREW,BIND HEAD 1
62 KV6-M7190-00X HOLDER,ADAPTA 1
63 KV6-M7172-00X ADAPTA 1 30cc
64
92A90-03103 SCREW,SET 1
65 KV6-M7169-00X STAY 3,HOLDER 2 1
66 KV6-M7167-00XS STAY 2,HOLDER 2 1
67 KV6-M7181-00X BRKT.1,LVL.SENSOR 1
68 KV6-M7187-00X FIBER 1
69 KV6-M7186-A0X SENSOR ASSY. 1
70 KGX-M17B1-01X PALLET ASSY 30
71 KGX-M173T-00X RACK HANDLE 2
72 90990-46J021 BOLT,THIN HEAD 4

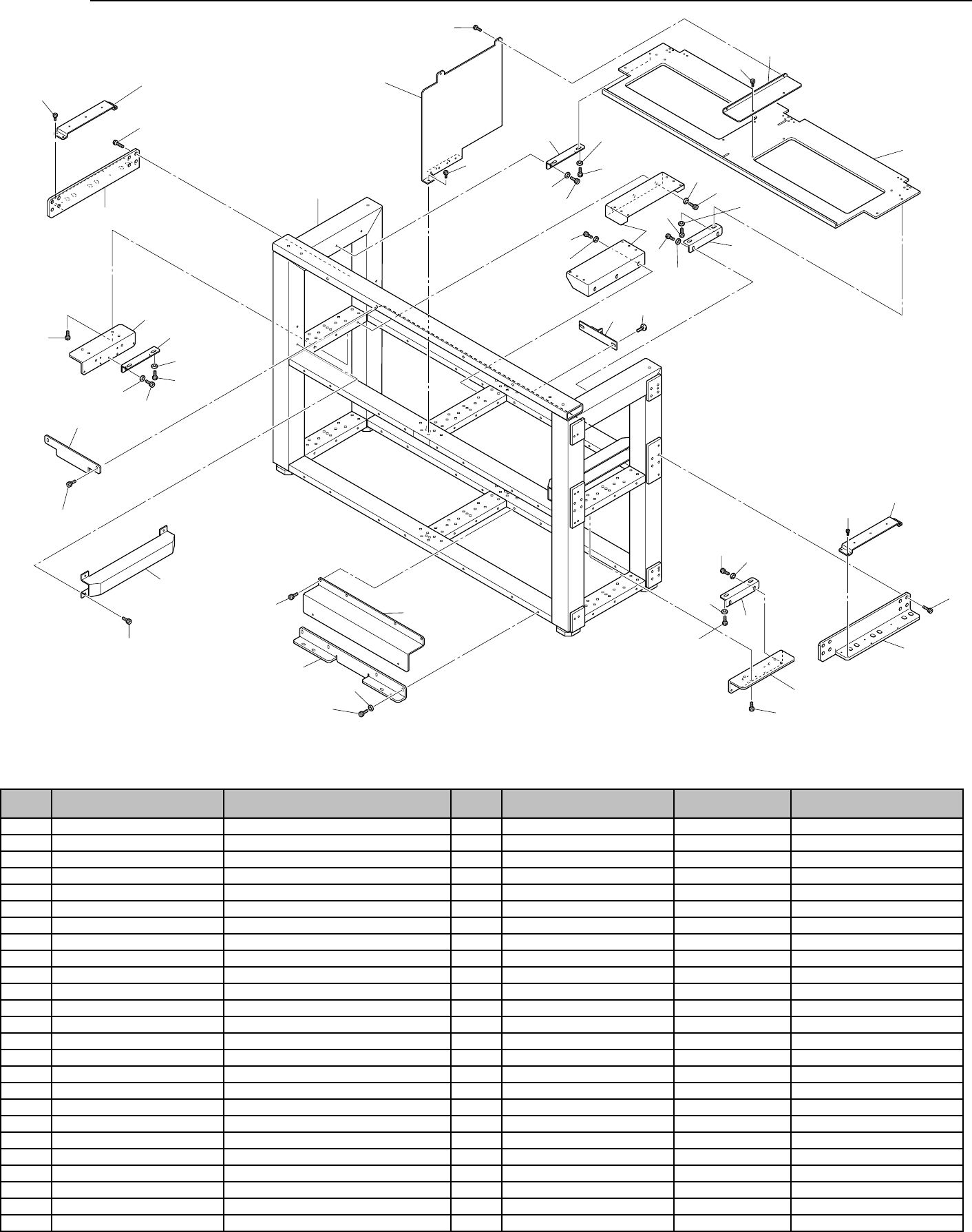

Magazine Base
Magazine
41
KGX-0505
8
20
15
21
2
18
10
5
24
19
20
25
11
23
19
12
24
13
15
22
20
25
24
19
18
5
10
3
21
14
16
23
7
17
22
5
24
19
9
18
18
6
19
20
25
25
5
20
24
25
25
20
4
20
1
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KGX-M1761-00X MAGAZINE BASE 1
2 KGX-M1762-L1X ARM BRKT. L 1
3 KGX-M1762-R1X ARM BRKT. R 1
4 KGX-M1763-00X BASE 1 RACK 8
5 KGX-M1764-00X STAY UPPER PLATE 4
6 KGX-M1765-00X UPPER PLATE 2
7 KGX-M1766-00X PLATE SIDE 4
8 KGX-M1767-00X PLATE CENTER 2
9 KGX-M1768-00X STAY CENTER PLATE 2
10 KGX-M1769-00X BRACKET 2
11 KGX-M176A-00X PLATE,MAGNET 2
12 KGX-M176B-00X BRACKET HINGE 4
13 KGX-M176C-00X BRKT. COVER 2
14 KGX-M176F-00X BRACKET 1,COVER 1
15 KGX-M176E-00X BRKT. DUCT 2
16 K16-90101-080 BOLT: TP 2 M4X8
17 91314-04005 BOLT HEX.SOCKET HEAD 16 M4X5
18 91314-04006 BOLT HEX.SOCKET HEAD 16 M4X6
19 91314-04008 BOLT HEX.SOCKET HEAD 12 M4X8
20 91314-05006 BOLT HEX.SOCKET HEAD 38 M5X8
21 91314-06012 BOLT HEX.SOCKET HEAD 16 M6X12
22 91317-04006 BOLT HEX.SOCKET HEAD 8 M4X6
23 91317-04010 BOLT HEX.SOCKET HEAD 20 M4X10
24 92903-04200 WASHER PLAIN 28
25 92903-05200 WASHER PLAIN 30
