N7202A047B - 第146页
3-C 基板ホルダ シングル対応 :NPM-W 2 Board H older For Single:NPM -W 2 パーツレイアウト Kit No . キット品番 Kit Name キット名称 N610164023A A セクシ ョンNo. PARTS LAYOUT Section No. - - O19 ( FN610164023 AA-16-3 ) LAYOUT
Ref No. Remarks R
1
Q'ty
3-B
基板ホルダシングル対応:NPM-W2
Board Holder For Single:NPM-W2
ｲﾗｽﾄNo.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610164023AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
2
P001 N210199299AC
PLATE
4
P005 N210199301AB
CYL-NUT
4
P013 N210161422AA
CYL-NUT
4
P014 N210198136AA
WASHER
4
P024 N210170136AA
DOG
2
P601 N210146952AB
PLATE
4
P619 MTPB023801AA
LINEAR-BUSH
8
N006 N510048348AA CFTBCW-30UU
SHAFT
8
N007 N510064588AA LSW30g6-163-M6-M10-SC148
CYLINDER
4
N015 N510068620AA CM2F32-50Z
JOINT
12
N016 N510066470AA KQ2L06-01AS
SPACER
8
N017 N510038214AA ASF-630E
SCREW
8
N018 XXE6D25FT
Hexagon socket set screw Cup point M6X25-45H SOB
BOLT
16
N025 N510017441AA
Hexagon socket head cap screw M6X35-10.9 A2J (Trivalent) Full thread
O18
--
( FN610164023AA-16-2 )

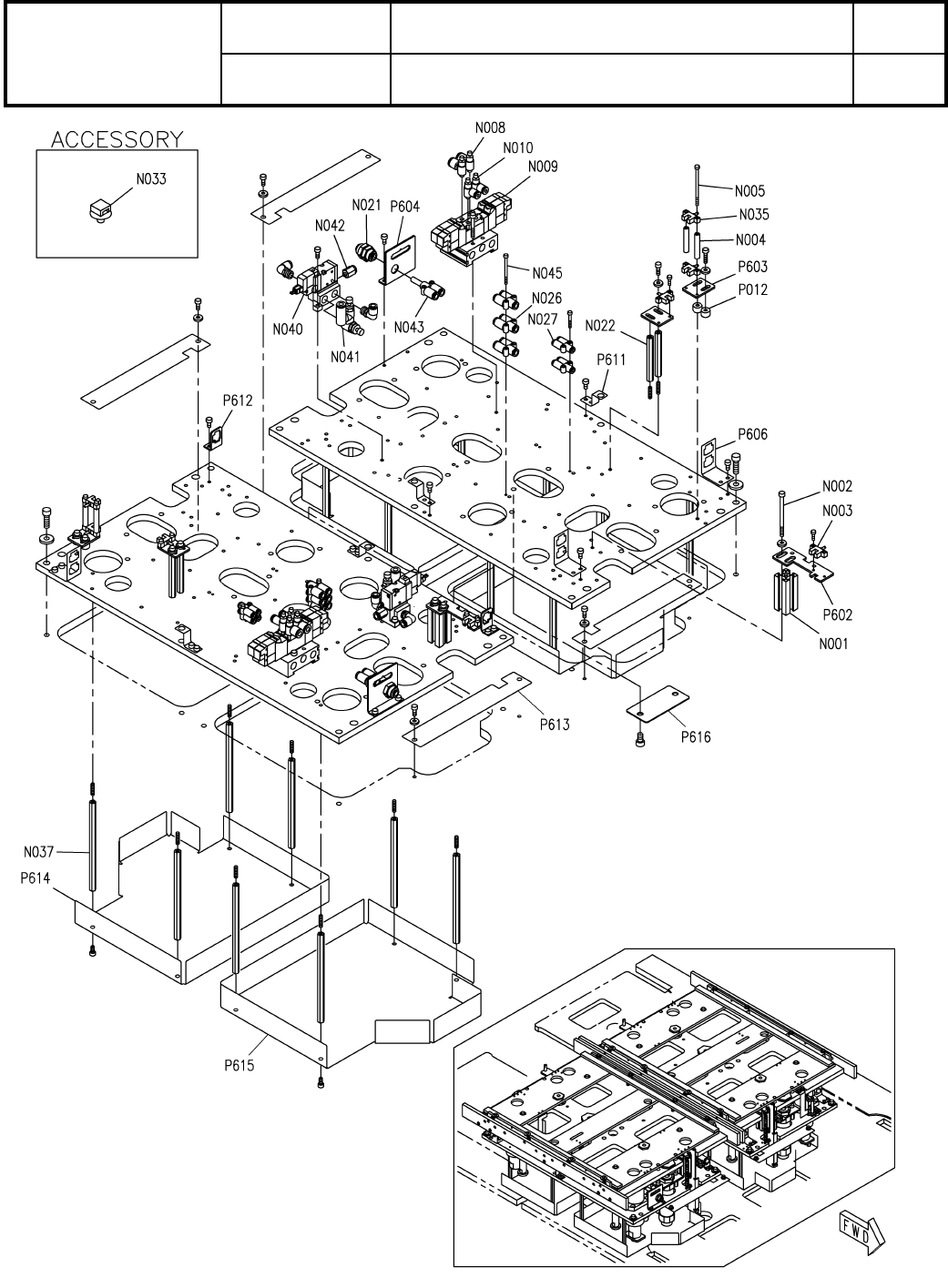

3-C
基板ホルダシングル対応:NPM-W2
Board Holder For Single:NPM-W2
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610164023AA
セクションNo.
PARTS LAYOUT
Section No.
--
O19
( FN610164023AA-16-3 )
LAYOUT
Ref No. Remarks R
1
Q'ty
3-C
基板ホルダシングル対応:NPM-W2
Board Holder For Single:NPM-W2
ｲﾗｽﾄNo.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610164023AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
WASHER
4
P012 N210143147AA
PLATE
2
P602 N210146954AB
PLATE
4
P603 N210125619AB
BRACKET
2
P604 N210146437AC
BRACKET
3
P606 N210097322AA
COVER
4
P611 N210147082AA
BRACKET
2
P612 KXFB02ALA00
COVER
4
P613 N210152386AB
COVER
2
P614 N210152390AC
COVER
2
P615 N210152391AC
COVER
2
P616 N210198140AA
FRAME
2
N001 N510048512AA SFF-204 L=50
FRAME
0
MTNK009418AA FRAME029-20X20 L=50
BOLT
4
N002 N510017375AA
Hexagon socket head cap screw M4X60-10.9 A2J (Trivalent)
SENSOR
4
N003 MTNS000234AA EE-SX950-C2J-R 0.5M
SENSOR(500mm)
0
MTKP022997AA
SPACER
4
N004 N510030908AA CB-335E
BOLT
4
N005 N510017335AA
Hexagon socket head cap screw M3X55-10.9 A2J (Trivalent)
SPEED-CONTROLLER
4
N008 KXF00YVAA00 AS1211F-M5-06
VALVE
2
N009 MTNP003722AA M4GA130R-M5-A2NSF-2-FL641831-3(PFOA FREE)
SPEED-CONTROLLER
4
N010 KXF00YSAA00 AS1211F-M5-04
JOINT
2
N021 N510066749AA KQ2E06-00NJ
SPACER
4
N022 N510029494AA ASF-464E
JOINT
6
N026 N510066456AA KQ2U06-00A
JOINT
4
N027 N510066629AA KQ2U04-00A
CABLE-SUPPORT
51
N033 N510048517AA FT4
SENSOR
4
N035 MTNS000232AA EE-SX950-C2J-R 0.2M
SENSOR(200mm)
0
MTKP022998AA
SPACER
16
N037 N510029482AA ASF-4130E
VALVE
2
N040 KXF0BV4AA00 SYJ514R-5LOZ-01
SPEED-CONTROLLER
2
N041 KXF09WUAA00 ASD330F-01-06S
JOINT
2
N042 N510066523AA KQ2H06-M5A
JOINT
2
N043 N510066452AA KQ2U06-99A
BOLT
2
N045 N510017329AA
Hexagon socket head cap screw M3X40-10.9 A2J (Trivalent)
O20
--
( FN610164023AA-16-3 )
