Ref No. Remark s R 1 Q'ty 71-E ツイントレイ フィー ダ本体部:N PM-W Tw in Tray Feeder M ain Body :NPM -W ｲﾗｽﾄNo. Part No. 品 名 品 番 数量 R 2 パーツリスト Kit No. キット品番 Kit Nam e キット名称 N610121083A A Part Nam e 備 考 セクションN o. PARTS LIST Secti…

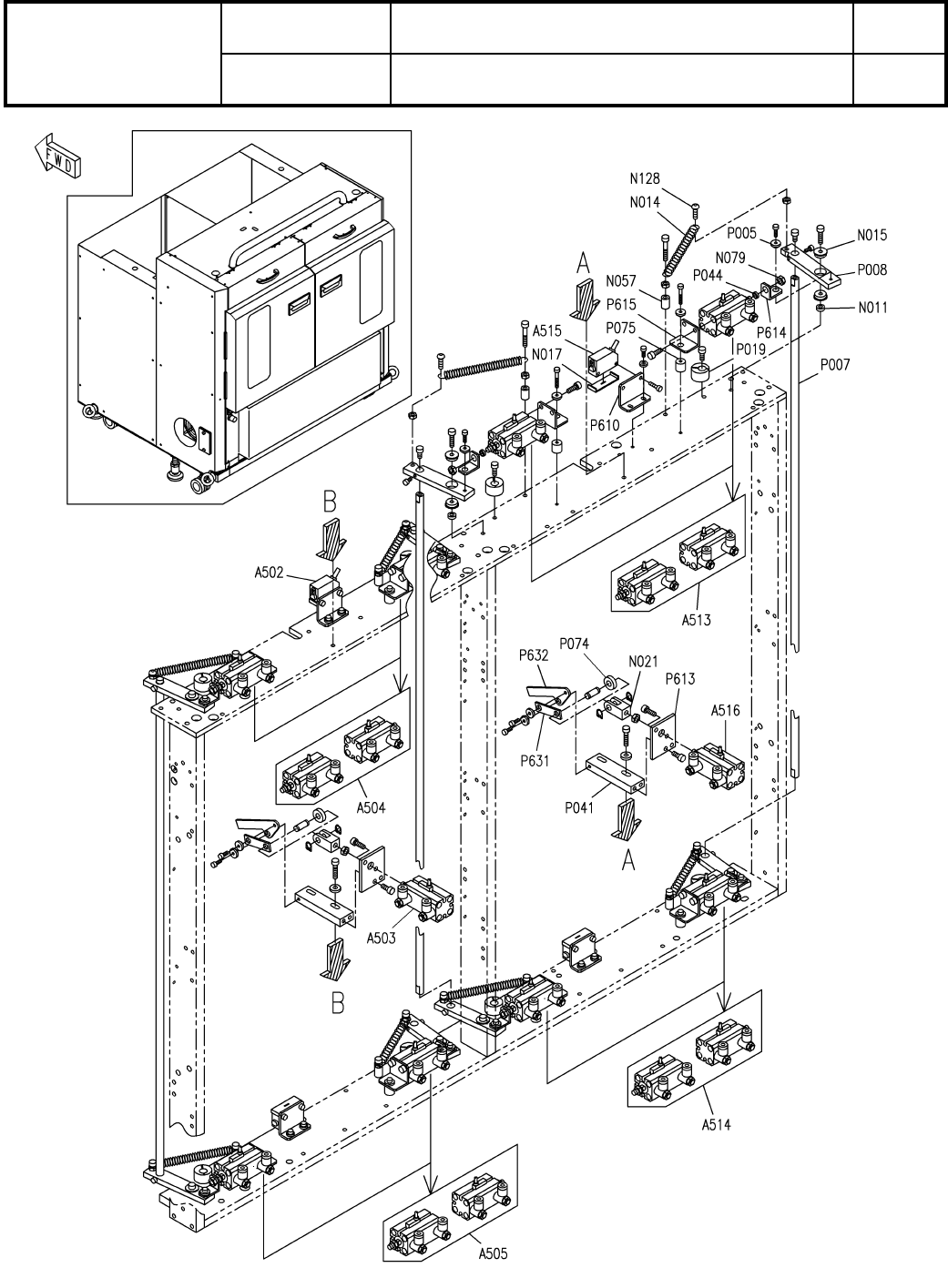

71-E
ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
セクションNo.
PARTS LAYOUT
Section No.
-
-
O229
( FN610121083AA-43-5 )
LAYOUT
Ref No. Remarks R
1
Q'ty
71-E
ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
ｲﾗｽﾄNo.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
4
P002 N210052737AA
COVER
2
P027 MTPA069926AA
PLATE
8
P033 N210086949AB
COLLAR
4
P035 KXFB0155A00
BRACKET
1
P051 N210161451AA
COLLAR
4
P052 N210169636AA
BRACKET
1
P071 N210181938AA
BRACKET
2
P627 N210143506AA
BRACKET
2
P628 KXFB0164A00
NUT-PLATE
2
P629 MTPA012560AA
BRACKET
4
P635 N210106281AA
BRACKET
2
P636 N210106282AA
BRACKET
4
P641 N210086743AA
BRACKET
4
P645 N210052752AA
LEVER
2
P647 N210086756AC
BRACKET
2
P658 N210147162AB
NUT-PLATE
2
P670 KXFB03UPA00
BRACKET
2
P675 KXFB017DA00
BRACKET
2
P678 N210101313AB
NUT-PLATE
2
P686 KXFB04BDA00
BRACKET
2
P713 N210143529AA
LEVER
2
P714 N210143530AA
BRACKET
2
P715 N210143531AA
COVER
2
P726 N210147908AB
BRACKET
4
P727 N210147909AA
BRACKET
2
P728 N210147910AB
BRACKET
2
P729 N210147911AB
COVER
1
A003 N610121086AC
COVER
1
A006 N610121089AC
SENSOR
1
A506 N610076231AB
S
SENSOR
1
A518 N610121095AB
S
JOINT
4
N019 N510066684AA KQ2L04-M5N
BOLT
4
N027 N510018811AA
Hexagon socket head cap screw M3X18-10.9 A2J (Trivalent)
CATCH
2
N029 KXF01F0AA00 C-90-1
PULL
2
N033 N510043714AA AP-183-2-black RoHS compliant product
PIN
8
N035 N510020598AA MMS4-15
SPRING
4
N036 MTPA046412AA 5577
SPACER
4
N037 N510017091AA CB-311E
BEARING
4
N038 KXF0A1GAA00 693ZZ
CYLINDER
2
N044 KXF0DXLVA00 RSQB12-10D
RUBBER-LEG
2
N060 MTNK003973AA DK-15
SCREW
20
N072 N510018253AA
Cross recessed Truss head machine screw M3X6-4.8 A2J (Trivalent)
BOLT
4
N078 MTNK000528AA
Hexagon socket Flat head bolt M4X10-10.9 A2J (Trivalent) (MEC process:
WASHER
4
N080 N510018472AA
Iron round plain washer 3X10X1.0 (cromeite) A2J (Trivalent)
BOLT
4
N087 N510017628AA
Hexagon socket Flat head bolt M4X8-10.9 A2J (Trivalent)
SPACER
4
N103 N510021998AA CU-325
TAPE
4
N104 N510022001AA #250AS20
BOLT
4
N124 N510018812AA
Hexagon socket head cap screw M4X22-10.9 A2J (Trivalent)
PIN
4
N132 N510020600AA MMS4-25
O230
-
-
( FN610121083AA-43-5 )
71-F
ツイントレイフィーダ本体部:NPM-W
Twin Tray Feeder Main Body :NPM-W
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610121083AA
セクションNo.
PARTS LAYOUT
Section No.
-
-
O231
( FN610121083AA-43-6 )
LAYOUT
