86-B 検査BOX 部 Inspection BO X パーツレイアウト Kit No. キット品番 Kit Name キット名称 N610097135A A セクシ ョンNo. PARTS LAYO UT Section No. - - O277 ( FN610097135 AA-15-2 ) LAYOUT
Ref No. Remarks R
1
Q'ty
86-A
検査BOX部
Inspection BOX
ｲﾗｽﾄNo.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610097135AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
P001 N210124371AD
BASE-PLATE
1
P002 N210124041AD
GUIDE
2
P004 N210118626AA
GUIDE
2
P010 N210121927AA
COLLAR
2
P011 N210125131AA
BRACKET
3
P603 N210118655AB
COVER
1
P606 N210124063AC
BRACKET
1
P607 N210125130AB
COVER
1
P609 N210121402AB
REAR-COVER
1
P610 N210124065AC
COVER
1
P617 N210124082AC
BRACKET
2
P618 N210124389AA
BUSH
1
A005 N610097161AB
CAP
42
N001 N510052984AA
CLAMP
2
N002 N510045728AA
CASTER
2
N005 N510045731AA 413SA-UB 50mm
CASTER
2
N007 N510045733AA 420SA-UB 50mm
SPACER
6
N010 N510049422AA 3382330-50025
URETHANE
2
N013 N510052316AA 87AZFH-D24-V7-H4-G12-L11
FRAME
4
N016 N510050630AA SFF-304B L=407
FRAME
2
N017 N510049429AA SFF-304B L=450
FRAME
2
N018 N510014679AA
BRACKET
22
N019 N510005830AA SFJ-018B
NUT
37
N020 N510013440AA SFN-AS5
SUPPORT
75
N021 KXF0DWJ9A00 SFA-9A2
NUT
36
N022 N510013438AA SFN-AS6
GROMMET
2
N023 N510056668AA C-30-SG-42A-EP-UL
GROMMET
0
MTNK004949AA DULSG-42A
SPACER
8
N024 N510009129AA SFJ-401S
NUT
24
N025 N510013304AA
CAP
4
N026 N510057510AA SFA-033B
FRAME
2
N027 N510050631AA SFF-304B L=504
ADJUST-BOLT
2
N029 N510052597AA
NUT
2
N030 N510013441AA SFN-AS4
CABLE-SUPPORT
15
N034 N510048517AA FT4
BOLT
34
N301 N510017630AA
Hexagon socket Flat head bolt M5X12-10.9 A2J (Trivalent)
SCREW
2
N302 N510018158AA
Cross recessed Countersunk head machine screw M3X6-4.8 A2J (Trivale
NUT
4
N306 N510017905AA
Hexagon nut Type-1 Best class M16-6H-4T A2J (Trivalent)
WASHER
4
N307 N510018509AA
Round finish plain washer 16 10H A2J (Trivalent)
BOLT
8
N308 N510017632AA
Hexagon socket Flat head bolt M5X16-10.9 A2J (Trivalent)
O276
-
-
( FN610097135AA-15-1 )

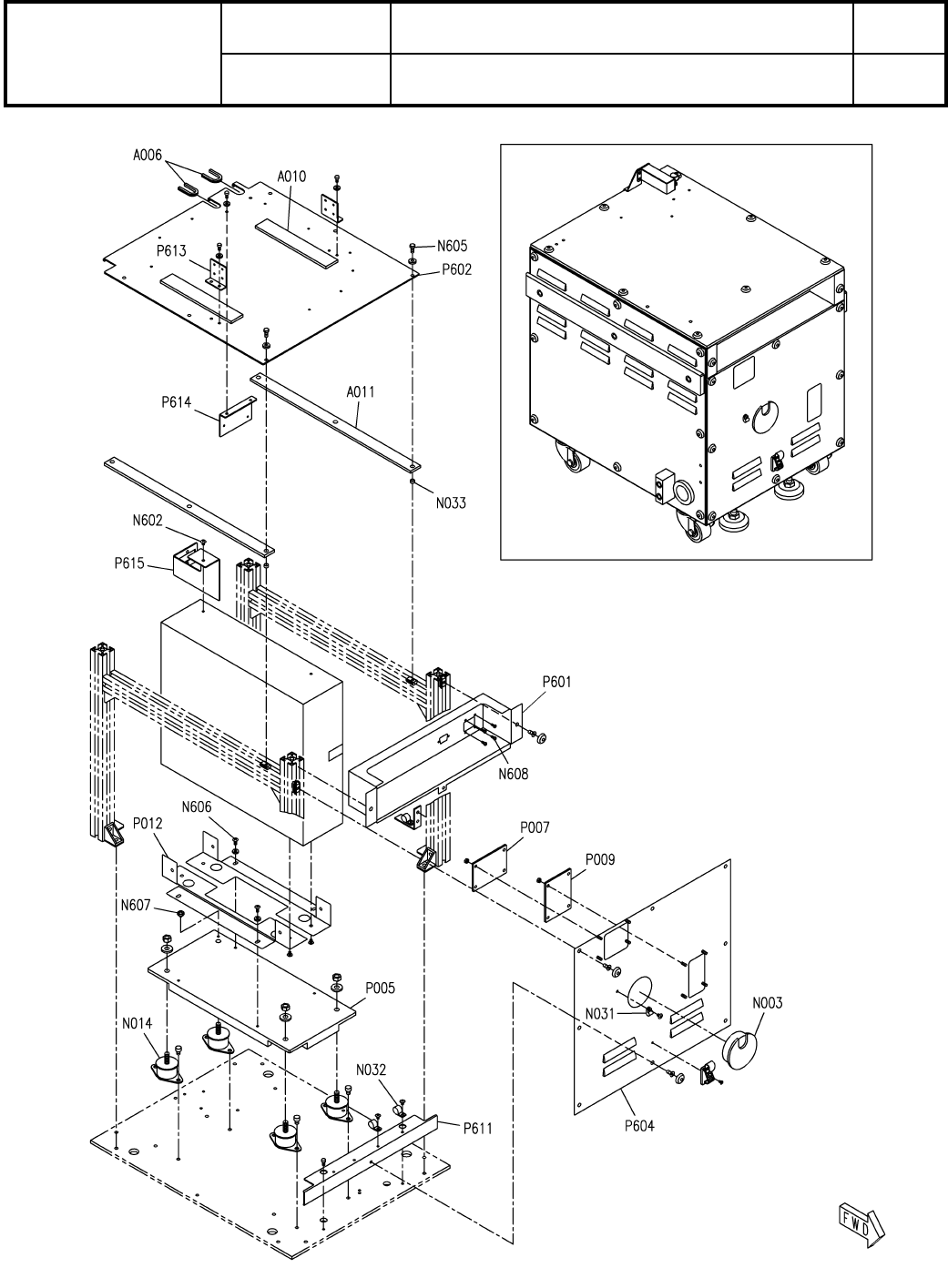

86-B
検査BOX部
Inspection BOX
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610097135AA
セクションNo.
PARTS LAYOUT
Section No.
-
-
O277
( FN610097135AA-15-2 )
LAYOUT
Ref No. Remarks R
1
Q'ty
86-B
検査BOX部
Inspection BOX
ｲﾗｽﾄNo.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610097135AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
P005 N210124045AB
COVER
1
P007 N210118886AA
COVER
1
P009 N210121405AA
BRACKET
2
P012 N210130890AC
BOX
1
P601 N210124053AC
BRACKET
1
P602 N210124060AE
FRONT-COVER
1
P604 N210131518AB
BRACKET
1
P611 N210124066AB
BRACKET
2
P613 N210124388AA
BRACKET
1
P614 N210118677AC
BRACKET
1
P615 N210118678AC
BUSH
2
A006 N610097303AA
CUSHION
2
A010 N610101523AA
CUSHION
2
A011 N610101524AA
CAP
1
N003 N510049419AA
CUSHION
4
N014 N510051855AA
CLIP
1
N031 N348NK3N NK-3N
CLIP
3
N032 KXF0E3QJA00 NK-6N
SPACER
6
N033 N510053879AA
SCREW
9
N602 N510018279AA
Cross recessed Truss head machine screw M4X6-4.8 A2J (Trivalent)
BOLT
6
N605 N510017743AA
Hexagon head bolt Best class M5X15-6g 4T A2J (Trivalent)
SCREW
4
N606 N510018257AA
Cross recessed Truss head machine screw M4X10-4.8 A2J (Trivalent)
SCREW
2
N607 XYN4+J8FN
Cross recessed Pan head machine screw with SW & SPW M4X8-4.8 E2U
SCREW
4
N608 N510018036AA
Cross recessed Pan head machine screw M3X10-4.8 A2J (Trivalent)
O278
-
-
( FN610097135AA-15-2 )
