114-C 12ノズルヘッ ド:NPM 12 NOZZLE HEAD:NPM パーツレイアウト Kit No. キット品番 Kit Name キット名称 N610157741A A セクシ ョンNo. PARTS LAYO UT Section No. - - O359 ( FN610157741 AA-16-3 ) LAYOUT
Ref No. Remarks R
1
Q'ty
114-B
12ノズルヘッド:NPM
12 NOZZLE HEAD:NPM
ｲﾗｽﾄNo.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610157741AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
P001 N210186135AA
MANIFOLD
1
P031 N210078980AB
HANDLE
2
P033 N210090625AB
BRACKET
1
P601 N210084658AB
BRACKET
1
P608 N210078994AD
PLATE
2
P615 N210084293AB
BRACKET
1
P616 N210103911AB
MOTOR
1
N001 N510049987AA
S
RMTA-A001A12-MA23
PIN
4
N004 N510020607AA MMS5-10
SPACER
2
N059 N510008161AA ASF-309E
SPACER
4
N062 N510019890AA ASF-350E
JOINT
2
N064 N510066777AA KQ2H08-02AS
JOINT
4
N065 MTNP000776AB M-5AU-6
BOLT
2
N080 N510017516AA
SSS 003 Hexagon socket button head screw M4X10-10.9 A2J (Trivalent)
FAN
1
N082 N510044727AA 109P0424H737
O358
-
-
( FN610157741AA-16-2 )
114-C
12ノズルヘッド:NPM
12 NOZZLE HEAD:NPM
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610157741AA
セクションNo.
PARTS LAYOUT
Section No.
-
-
O359
( FN610157741AA-16-3 )
LAYOUT
Ref No. Remarks R
1
Q'ty
114-C
12ノズルヘッド:NPM
12 NOZZLE HEAD:NPM
ｲﾗｽﾄNo.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610157741AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3

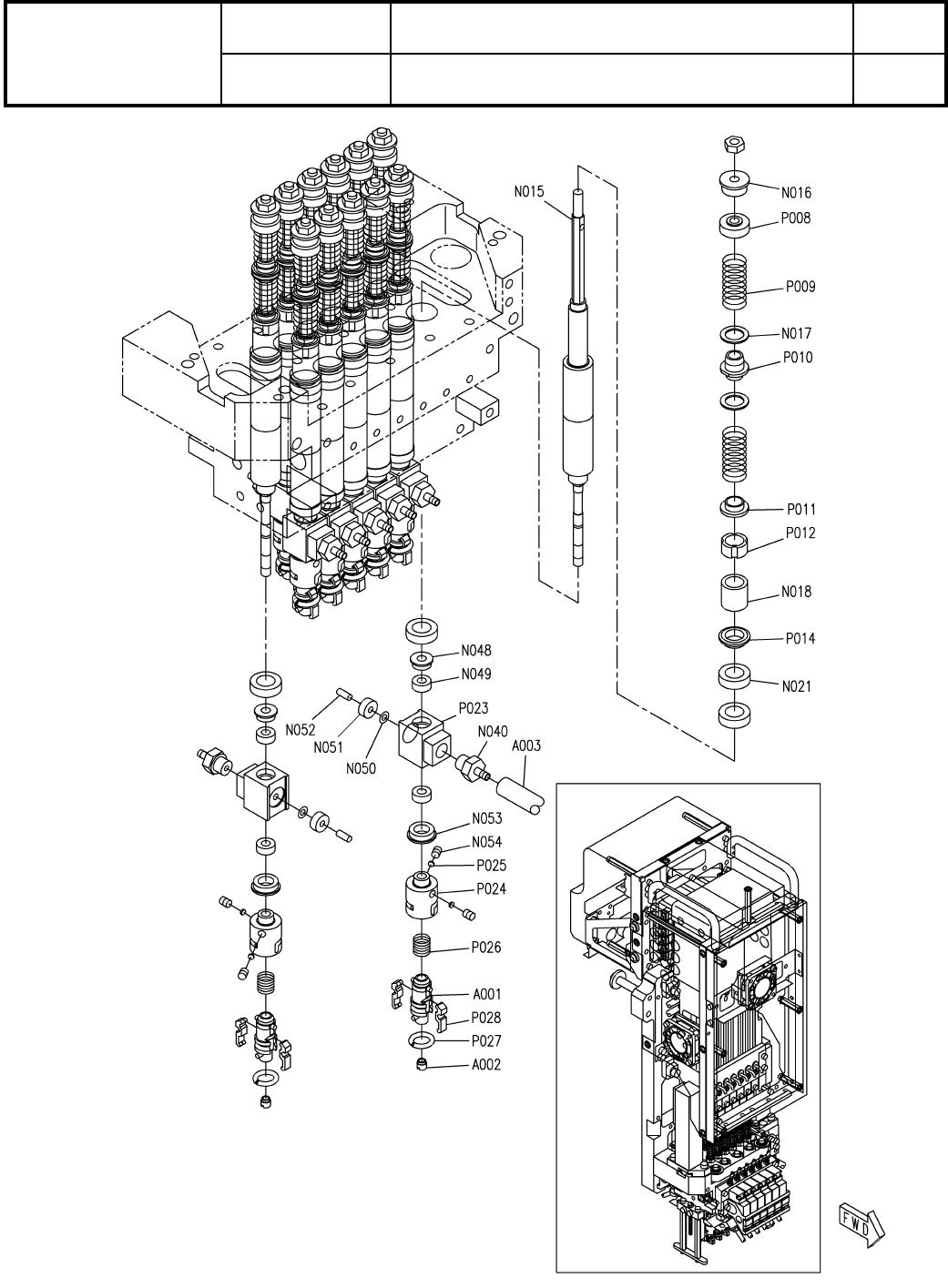

COLLAR
12
P008 N210013388AA
SPRING
24
P009 N210016901AB
GUIDE
12
P010 N210016902AB
COLLAR
12
P011 N210013386AB
NUT
12
P012 N210009483AB
COLLAR
12
P014 N210013382AB
HOUSING
12
P023 N210090621AD
HOLDER
12
P024 N210007281AD
PIECE
24
P025 N210110221AA
SPRING
12
P026 N210068065AA
SPRING
12
P027 N210014666AC
A
CLAMP-ARM
24
P028 N210098763AB
A
NOZZLE HOLDER
12
A001 N610067607AF
FILTER
12
A002 N610097899AC
TUBE (64mm CUT)
12
A003 N610144919AB
BALL-SPLINE
12
N015 N510068462AA 2LT4XQZCSS+145.5LP-(M)(13035768X000)
BEARING
12
N016 N510011405AA DDRF-830ZZ R P0P25LY72
BEARING
0
N510067502AA F693JZZMC3 NS7L
WASHER
24
N017 N510026562AA MMSRB6-0.5
PULLEY
12
N018 N510019396AA P14-2GT-6-33(K0508-005-02)
BEARING
36
N021 N510003588AA DDL-1060ZZ H P0P25LY121
BEARING
0
N510067503AA MR106T12ZZ1MC3 NS7L
JOINT
12
N040 N510059099AA M-5AU-4-X179
BEARING
12
N048 N510003597AA DDLF-630ZZ H P0P25LY72
BEARING
0
MTNB000049AA MF63T12ZZMC3 NS7
PACKING
24
N049 N555MYA3 MYA-3
SHIM
12
N050 N510028628AA RF002004020
BEARING
12
N051 N510019154AA DDR-620ZZY52 H P0P13LY72
BEARING
0
N510067507AA MR62JZZMC2 NS7L
PIN
12
N052 N510049558AA N2X5-07
BEARING
12
N053 N510011382AA DDLF-850ZZ H P0P25LY121
BEARING
0
N510069003AA MF85CZZMC3 NS7L
SCREW
24
N054 XXE25C3FT
Hexagon socket set screw Flat point M2.5X3-45H SOB
