152-C 軽量16ノ ズルヘッドV3 Aメカ Light w eight 16 Nozz le Head V3A(M ) パーツレイアウト Kit No. キット品番 Kit Name キット名称 MTKA042131 AA セクシ ョンNo. PARTS LAYO UT Section No. - - O539 ( KMTKA042131 AA-04-3 ) LAYOUT

100%1 / 976
Ref No. Remarks R
1
Q'ty
152-B
軽量16ノズルヘッドV3Aメカ
Light weight 16 Nozzle Head V3A(M)
ｲﾗｽﾄNo.
Part No.
品　　名品　　番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA042131AA
Part Name
備　　　考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 MTPA046322AB
POST
4
2 N210119187AA
BLOCK
2
3 N210116692AA
COLLAR
8
4 N210123391AA
PULLEY
2
5 MTPA038999AA
POST
5
6 N210118733AC
COLLAR
2
7 N210123392AA
POST
3
8 N210188974AA
PLATE
1
9 MTPA068141AA
PLATE
1
10 MTPA071568AA
PIN
8
11 MTPA066647AA
PACKING
8
12 MTPZ001574AA
PLATE
1
13 N210119189AC
PLATE
1
14 MTPB040072AB
GUARD
2
15 N210118736AA
BRACKET
1
16 N210188971AC
BRACKET
1
17 N210188970AC
COVER
1
18 N210134042AB
COVER
1
19 N210133002AC
BRACKET
1
20 N610161540AC
PLATE
1
21 N610161629AA
PLATE
1
22 N610161628AA
PLATE
1
23 MTKP003410AD
MOTOR
1
24 N510055635AC
S
RMTA-A002A16-MA13
PIN
2
25 N510020589AA MMS3-8
PIN
2
26 N510020607AA MMS5-10
BOLT
3
27 N510017329AA
Hexagon socket head cap screw M3X40-10.9 A2J (Trivalent)
BOLT
4
28 N510067764AA Low Head Cap Screw M3X6-8.8 A2J(Trivalent)
BEARING
22
29 N510017124AA R-830ZZ R P0P25LY121
BEARING
0
N510067504AA 693JZZMC3 NS7L
MOTOR
2
30 N510068271AA
S
P50B02002BXS9B
PULLEY
2
31 N510032344AA P14-2GT-12-SF(K0610-001-01)
BEARING
2
32 N510011403AA DDL-1370ZZ R P0P25LY121
BEARING
0
N510067505AA MR137ZZMC3 NS7L
BOLT
2
33 XVE25B5FTC
Hexagon socket head cap screw M2.5X5-12.9 SOB
BOLT
2
34 N510067769AA Low Head Cap Screw M3X16-8.8 A2J(Trivalent)
T-BELT
2
35 N510055507AA 286-2GT-6(3FX6N17)S-107141
MANIFOLD
1
36 MTNP001521AA VV3Q12-08-X437C
MANIFOLD
1
37 MTNP001522AA VV3Q12-08-X438C
WASHER
6
38 N510033304AA
Small round-plain washer 3 10H A2S (Trivalent)
BOLT
14
39 N510017534AA
SSS 003 Hexagon socket button head screw M4X6-10.9 A2J (Trivalent)
PIN
4
40 N510020576AA MMS2-6
BOLT
3
41 XVE25B12FTC
Hexagon socket head cap screw M2.5X12-12.9 SOB
BOLT
2
42 XVE25B20FTC
Hexagon socket head cap screw M2.5X20-12.9 SOB
TRIM
2
43 KXF0DUDAA00 CE-012
TRIM
2
44 KXF0DUDAA00 CE-012
CLIP
14
45 KXF0BLPAA00 TA1S8-M
O538
-
-
( KMTKA042131AA-04-2 )

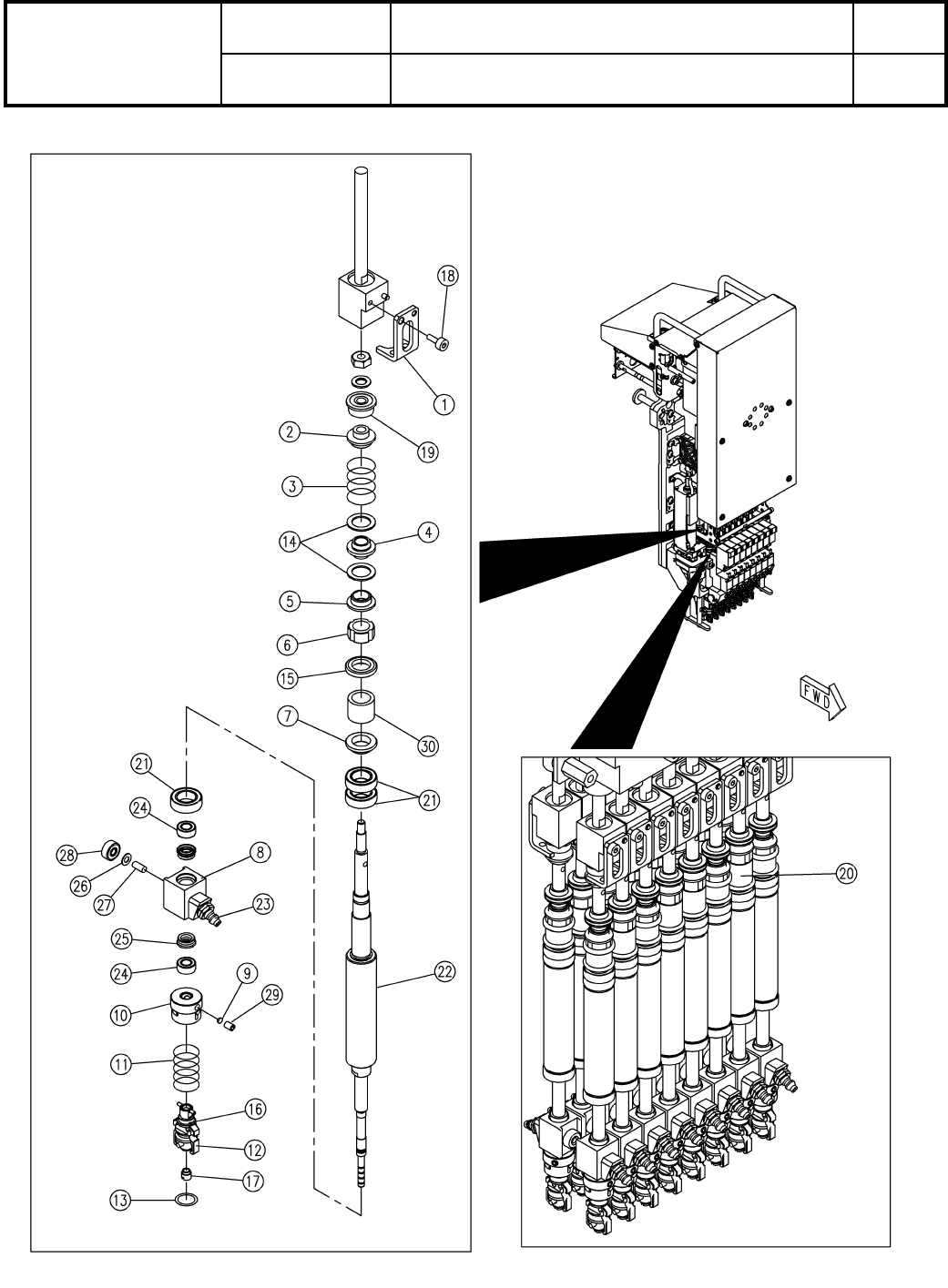

152-C
軽量16ノズルヘッドV3Aメカ
Light weight 16 Nozzle Head V3A(M)
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
MTKA042131AA
セクションNo.
PARTS LAYOUT
Section No.
-
-
O539
( KMTKA042131AA-04-3 )
LAYOUT
Ref No. Remarks R
1
Q'ty
152-C
軽量16ノズルヘッドV3Aメカ
Light weight 16 Nozzle Head V3A(M)
ｲﾗｽﾄNo.
Part No.
品　　名品　　番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
MTKA042131AA
Part Name
備　　　考
セクションNo.
PARTS LIST
Section No.
R
3
BRACKET
16
1 N210151017AB
COLLAR
16
2 N210118719AA
SPRING
32
3 N210118720AA
GUIDE
16
4 N210118721AB
COLLAR
16
5 N210119184AA
NUT
16
6 N210009483AB
COLLAR
16
7 N210013382AB
HOUSING
16
8 N210126570AB
PIECE
32
9 N210110221AA
HOLDER
16
10 N210141026AB
SPRING
16
11 N210125002AA
A
CLAMP-ARM
32
12 N210098763AB
A
SPRING
16
13 N210014666AC
A
WASHER
32
14 N210118304AA
COLLAR
8
15 MTPA043949AA
NOZZLE HOLDER
16
16 N610113699AC
FILTER
16
17 N610097899AC
BOLT
16
18 XVE2B5FTC Hexagon socket head cap screw M2X5-12.9 SOB
BEARING
0
N510067502AA F693JZZMC3 NS7L
BEARING
16
19 N510011405AA DDRF-830ZZ R P0P25LY72
PULLEY
8
20 N510019396AA P14-2GT-6-33(K0508-005-02)
BEARING
48
21 N510003588AA DDL-1060ZZ H P0P25LY121
BEARING
0
N510067503AA MR106T12ZZ1MC3 NS7L
BALL-SPLINE
16
22 N510068432AA 2LT4XQZCSS+141.4LP-(P)(13035769X000)
JOINT
16
23 N510064400AB M-3AU-4
BEARING
32
24 N510048761AA L-630ZZ H P0P25LY72
BEARING
0
N510067506AA MR63T12ZZMC3 NS7L
PACKING
32
25 N555MYA3 MYA-3
SHIM
16
26 N510028628AA RF002004020
PIN
16
27 N510049558AA N2X5-07
BEARING
16
28 N510019154AA DDR-620ZZY52 H P0P13LY72
BEARING
0
N510067507AA MR62JZZMC2 NS7L
SCREW
32
29 XXE25C3FT
Hexagon socket set screw Flat point M2.5X3-45H SOB
PULLEY
8
30 MTNK005940AA P14-2GT(SPMTNK005940AA)
O540
-
-
( KMTKA042131AA-04-3 )
