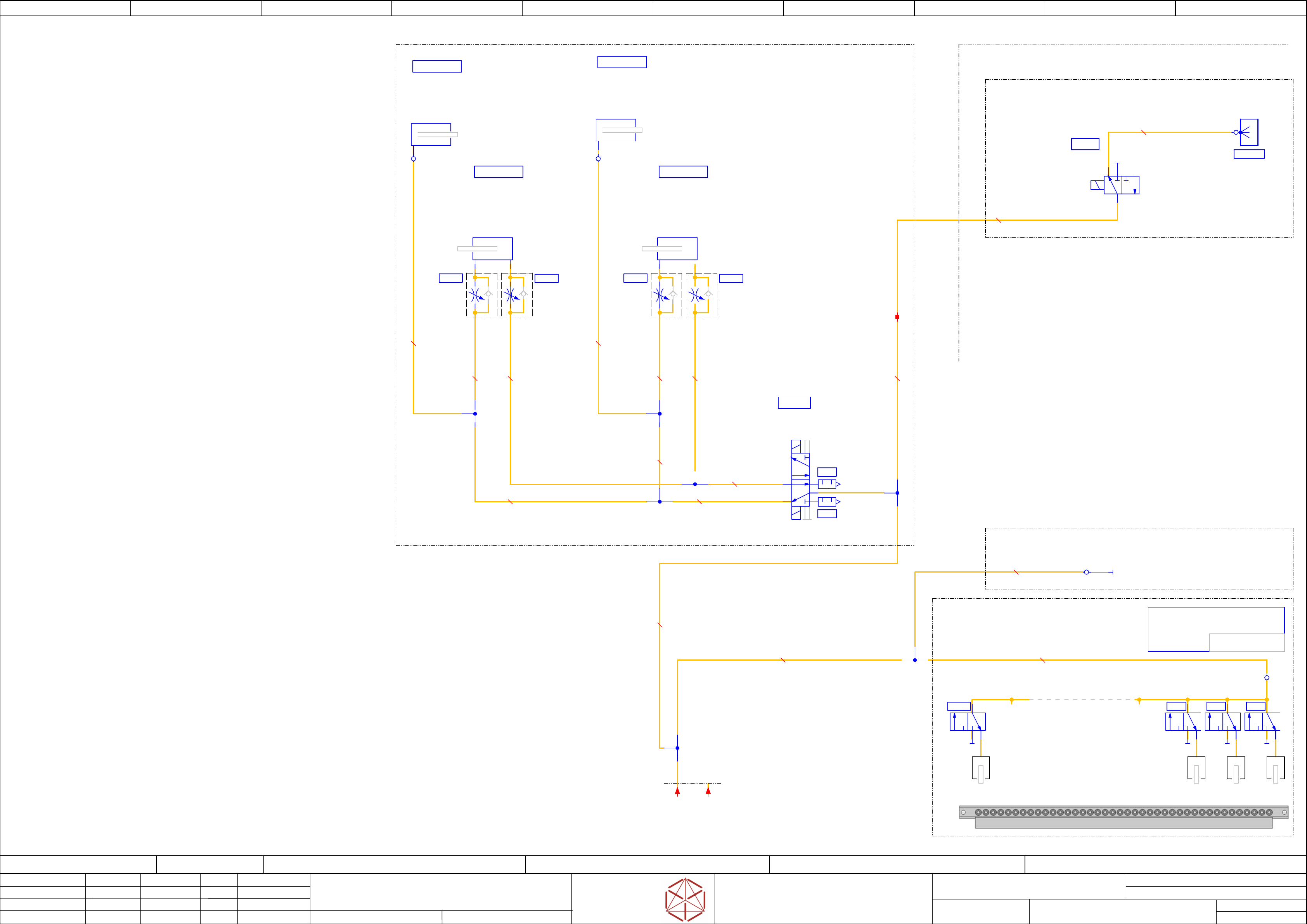

Function: Pneumatics
==FLUID=TX/114
drawing number:
Size DIN A2
Sheet
114
/
5
- Docking-unit-1(2) -
- Docking-uni
t-1(2) -
- Docking-unit-1(2) -
- Docking-unit-1(2) -
- Nozzle-changer 1(2)-
- Nozzle-changer 1(2)-
- Nozzle-changer 1(2)-
- Nozzle-changer 1(2)-
- Feeder unlocking device-1(2) -
- Feeder unlocking device-1(2) -
- Feeder unlocking device-1(2) -
- Feeder unlocking device-1(2) -
Nozzle-changer
short-version
03103649-
assembly-variant = short
- Nozzle station-1(2) -
- Nozzle station-1(2) -
- Nozzle station-1(2) -
- Nozzle station-1(2) -
1
unlocking
Feeder-1
1
unlocking
Feeder-2
1
unlocking
Feeder-3
03121332-
COTi change over table insert, Location-1 & Location-2
- Cutter-1(2) -
- Cutter-1(2) -
- Cutter-1(2) -
- Cutter-1(2) -
4,5bar / max 138NL/min
Pneumatic-document:
03000487-
1
unlocking
Feeder-40
Variant: TX-V2
BU8x1,25PVC
1000 mm
PVC 6x1 BU
1245 mm
4
5
1
2
3
KH.CUL
Valve-2 left
5/2 SY5120
00328981
QSY-6
03014048-
QM.L
manual-actuation
-Y2
==TC/79.02
RP2.1
Silencer G-1/8
BU6x1PVC
00333778-
BU6x1PVC
00333778-
MM.CUL
MM.CUL
MM.CUL
MM.CUL
cylinder-left
short-stroke-40
ECDQ2B 50-40 DC
03000512-
2d6
QSL-1/8-6
03000631-
d6
QSL-1/8-6
03000631-
4 d6
QSL-1/8-6
03000631-
2 d6
QSLL-1/8-6
03000632-
BU6x1PVC
00333778-
PVC 6x1 BU
00333778-
4
5
1
2
3
KH.CUR
Valve-1 right
5/2 SY5120
00328981
BU6x1PVC
00333778-
PVC 6x1 BU
00333778-
QM.R
manual-actuation
-Y1
==TC/79.07
RP1.2
Silencer G-1/8
RP1.1
Silencer G-1/8
MM.CUR
MM.CUR
MM.CUR
MM.CUR
cylinder-right
short-stroke-40
ECDQ2B 50-40 DC
03000512-
2d6
QSL-1/8-6
03000631-
1d6
QSL-1/8-6
03000631-
2 5
1
4 3
KH.DU
KH.DU
KH.DU
KH.DU
COTi docking-unit
CO
Ti docking-unit
COTi docking-unit
COTi docking-unit
Valve 5/2
SMC SY5220-5LOU-01F-Q
RP1.2
Silencer G-1/8
RP1.1
Silencer G-1/8
12
MM.DUR2
MM.DUR2
MM.DUR2
MM.DUR2
Table docking
cylinder-right
Round-cylinder 50x60
DL-50-60-P-SA-207074
short-stroke-60mm
03047616-
2.2
PVC 4x0,75 BU
675 mm
-Y1
==03146501+Loc1/71.06
manual
actuation
1
MM.DUR2
MM.DUR2
MM.DUR2
MM.DUR2
Table eject
Cylinder right
short-stroke-cylinder
AEVC-20-10-P
03002876-
QSMY-4
Nr.3
Nr
.3
Nr.3
Nr.3
QSMY-4
Nr.4
Nr.4
Nr.4
Nr.4
QSMT-6
Nr.1
Nr.1
Nr.1
Nr.1
1d4
QSML-M5-4
03003975-
manual-
actuation
-Y1
PVC 4x0,75 BU
745 mm
QSMY-4
Nr.2
Nr
.2
Nr.2
Nr.2
PVC 4x0,75 BU
400 mm
PVC 4x0,75 BU
840 mm
PVC 4x0,75 BU
120 mm
BU4x0,75PVC
195 mm
4.2
PVC 4x0,75 BU
270 mm
2.1
PVC 4x0,75 BU
660 mm
4.4
PVC 4x0,75 BU
270 mm
4.1
BU4x0,75PVC
535 mm
4.3
BU4x0,75PVC
535 mm
12
MM.DUR2
MM.DUR2
MM.DUR2
MM.DUR2
Table docking
cylinder-left
Round-cylinder 50x60
DL-50-60-P-SA-207074
short-stroke-60mm
03047616-
1
MM.DUR2
MM.DUR2
MM.DUR2
MM.DUR2
Table eject
Cylinder left
short-stroke-cylinder
AEVC-20-10-P
03002876-
1d4
QSML-M5-4
03003975-
B
R2
P
A
R1
KH.NC
Valve NC-1
V
alve NC-1
Valve NC-1
Valve NC-1
SYJ3143-5LOZ-Q-S
00334200-
RP1.1
Silencer U-M5
RP1.2
Silencer U-M5
manual-
actuation
-KH1
12
MM.NC
MM.NC
MM.NC
MM.NC
Nozzle-changer-1
tilt-cylinder CRBW1BW10-180S
00334198-
4x0,75PUN
0,01 m
03006520-
1d4
QSMLL-M5-4
00337387-
PUN 4x0,75
1050 mm
PUN 4x0,75
1050 mm
2
1
3
KH.NS
Valve 3/2
VOVG-L-10-M32C-AH-M5-1H3
03051469-
-Y2
-
Y2
-Y2
-Y2
==03146501+Loc1/71.08
PUN 4x0,75
130 mm
PUN 4x0,75
0,01 m
03006520-
2
1 3
FU.Y1
2
1 3
FU.Y2
2
1 3
FU.Y40
1 1
-FUD
-FUD
-FUD
-FUD
electric Feeder unlock device 40-fold
electric F
eeder unlock device 40-fold
electric Feeder unlock device 40-fold
electric Feeder unlock device 40-fold
Location-1
Location-1
Location-1
Location-1
03011582-02
1
2
1 3
FU.Y3
1
RP2.2
Silencer G-1/8
Location-2
Location-2
Location-2
Location-2
3 d4
4 d4
5 d4
6 d6
XM11
COTi-pressure-distributor
QST3-6-4
03072742
1d6
Z10.5
Plug QSC-4H
00330249
QSMY-6
03049993-
BU6x1PVC
1160 mm
d6
QSL-1/8-6
03000631-
4 d6
QSL-1/8-6
03000631-
2 d6
QSLL-1/8-6
03000632-
RN1.2
AS2201F-02-06S
manual-actuation
Throttle
RN1.12
Throttle
IN
RN1.11
Throttle
manual-actuation
AS2201F-01-04S
00353412-
OUT
RN1.2
Throttle
RN1.1
Throttle
manual-actuation
AS2201F-01-04S
00353412-
QSM-4
03077743-
QSMY-4
03054806-
QSM-4
03077743-
RN1.22
Throttle
IN
RN1.21
Throttle
manual-actuation
AS2201F-01-04S
00353412-
OUT
1d6
QSL-1/8-6
03000631-
RN2.1
AS2201F-02-06S
manual-actuation
Throttle
QS-6H-4
03080645
BU4x0,75PVC
135 mm
RN.BLOW
blower
blower
blower
blower
nozzle-station
nozzle-station
nozzle-station
nozzle-station
03073328-
1d4
LCN-M3-PK-3
00305383-
Z10.3
Optional Connection
Glue-Feeder
Cutter-1
/111.05
COTi_Loc.1
/111.07
Cutter-2
/111.06
COTi_Loc.2
/111.08
....FU.Y4FU.Y39....
electric_schematic SIPLACE TX_V2
Ed.
Original
90012669-010501LE3
Pingist
Date
Date
Replaced by
Pneumatics-tubing COT-insert (only TX2i-V2) 90012669-010101XE3
Modification
Appr
Replaced by
17.04.2018
Name
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
00 01 02 03 04 05 06 07 08 09
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Pneumatics
==FLUID=TX/115
drawing number:
Size DIN A2
Sheet
115
/
5
- Docking-unit-1(2) -
- Docking-uni
t-1(2) -
- Docking-unit-1(2) -
- Docking-unit-1(2) -
- Nozzle-changer not used -
- Feeder unlocking device-1(2) -
- F
eeder unlocking device-1(2) -
- Feeder unlocking device-1(2) -
- Feeder unlocking device-1(2) -
- Nozzle station-1(2) -
- Nozzle station-1(2) -
- Nozzle station-1(2) -
- Nozzle station-1(2) -
1
unlocking
Feeder-1
1
unlocking
Feeder-2
1
unlocking
Feeder-3
03121332-
COTi change over table insert, Location-1 & Location-2
1
unlocking
Feeder-40
Variant: TX2i-V2
PVC 6x1 BU
1320 mm
RP1.2
Silencer G-1/8
RP1.1
Silencer G-1/8
12
MM.DUR2
MM.DUR2
MM.DUR2
MM.DUR2
Table docking
cylinder-right
Round-cylinder 50x60
DL-50-60-P-SA-207074
short-stroke-60mm
03047616-
2.2
PVC 4x0,75 BU
470 mm
manual
actuation
1
MM.DUR2
MM.DUR2
MM.DUR2
MM.DUR2
Table eject
Cylinder right
short-stroke-cylinder
AEVC-20-10-P
03002876-
QSMY-4
Nr.3
Nr
.3
Nr.3
Nr.3
QSMY-4
Nr.5
Nr
.5
Nr.5
Nr.5
QSMT-6
Nr.1
Nr
.1
Nr.1
Nr.1
1d4
QSML-M5-4
03003975-
manual-
actuation
PVC 4x0,75 BU
840 mm
QSMY-4
Nr.4
Nr
.4
Nr.4
Nr.4
PVC 4x0,75 BU
200 mm
PVC 4x0,75 BU
745 mm
PVC 4x0,75 BU
120 mm
BU4x0,75PVC
130 mm
4.2
PVC 4x0,75 BU
295 mm
2.1
PVC 4x0,75 BU
650 mm
4.4
PVC 4x0,75 BU
295 mm
4.1
BU4x0,75PVC
420 mm
4.3
BU4x0,75PVC
420 mm
12
MM.DUR2
MM.DUR2
MM.DUR2
MM.DUR2
Table docking
cylinder-left
Round-cylinder 50x60
DL-50-60-P-SA-207074
short-stroke-60mm
03047616-
1
MM.DUR2
MM.DUR2
MM.DUR2
MM.DUR2
Table eject
Cylinder left
short-stroke-cylinder
AEVC-20-10-P
03002876-
1d4
QSML-M5-4
03003975-
1d4
QSMLL-M5-4
00337387-
PUN 4x0,75
1050 mm
PUN 4x0,75
725 mm
PUN 4x0,75
420 mm
1 1
-FUD
-FUD
-FUD
-FUD
electric Feeder unlock device 40-fold
electric F
eeder unlock device 40-fold
electric Feeder unlock device 40-fold
electric Feeder unlock device 40-fold
Location-1
Location-1
Location-1
Location-1
03011582-02
1 1
Location-2
Location-2
Location-2
Location-2
QSMY-6
03049993-
BU6x1PVC
1160 mm
RN1.12
Throttle
IN
RN1.11
Throttle
manual-actuation
AS2201F-01-04S
00353412-
OUT
QSM-4
03077743-
QSMY-4
03054806-
RN1.22
Throttle
IN
RN1.21
Throttle
manual-actuation
AS2201F-01-04S
00353412-
OUT
QS-6H-4
03080645
BU4x0,75PVC
135 mm
RN.BLOW
blower
blower
blower
blower
nozzle-station
nozzle-station
nozzle-station
nozzle-station
03073328-
1d4
LCN-M3-PK-3
00305383-
Plug QSC-4H
00330249
QSMY-6-4
Nr.2
Nr
.2
Nr.2
Nr.2
-Y2
-
Y2
-Y2
-Y2
2
1
3
KH.NS
Valve 3/2
VOVG-L-10-M32C-AH-M5-1H3
03051469-
2 5
1
4 3
KH.DU
KH.DU
KH.DU
KH.DU
COTi docking-unit
CO
Ti docking-unit
COTi docking-unit
COTi docking-unit
Valve 5/2
SMC SY5220-5LOU-01F-Q
-Y1
==03146501+Loc1/71.06
-Y1
2
1 3
FU.Y1
2
1 3
FU.Y2
2
1 3
FU.Y40
2
1 3
FU.Y3
COTi_Loc.1
/111.07
COTi_Loc.2
/111.08
....FU.Y4FU.Y39....
electric_schematic SIPLACE TX_V2
electric_schematic SIPLACE TX_V2
electric_schematic SIPLACE TX_V2
electric_schematic SIPLACE TX_V2
90012669-010501LE3
Replaced by
Safety-Loop overview
Safety-Loop overview
Safety-Loop overview
Safety-Loop overview
contactor based safety breaker: logic
contactor based saf
ety breaker: logic
contactor based safety breaker: logic
contactor based safety breaker: logic
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
0 1 2 3 4 5 6 7 8 9
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:

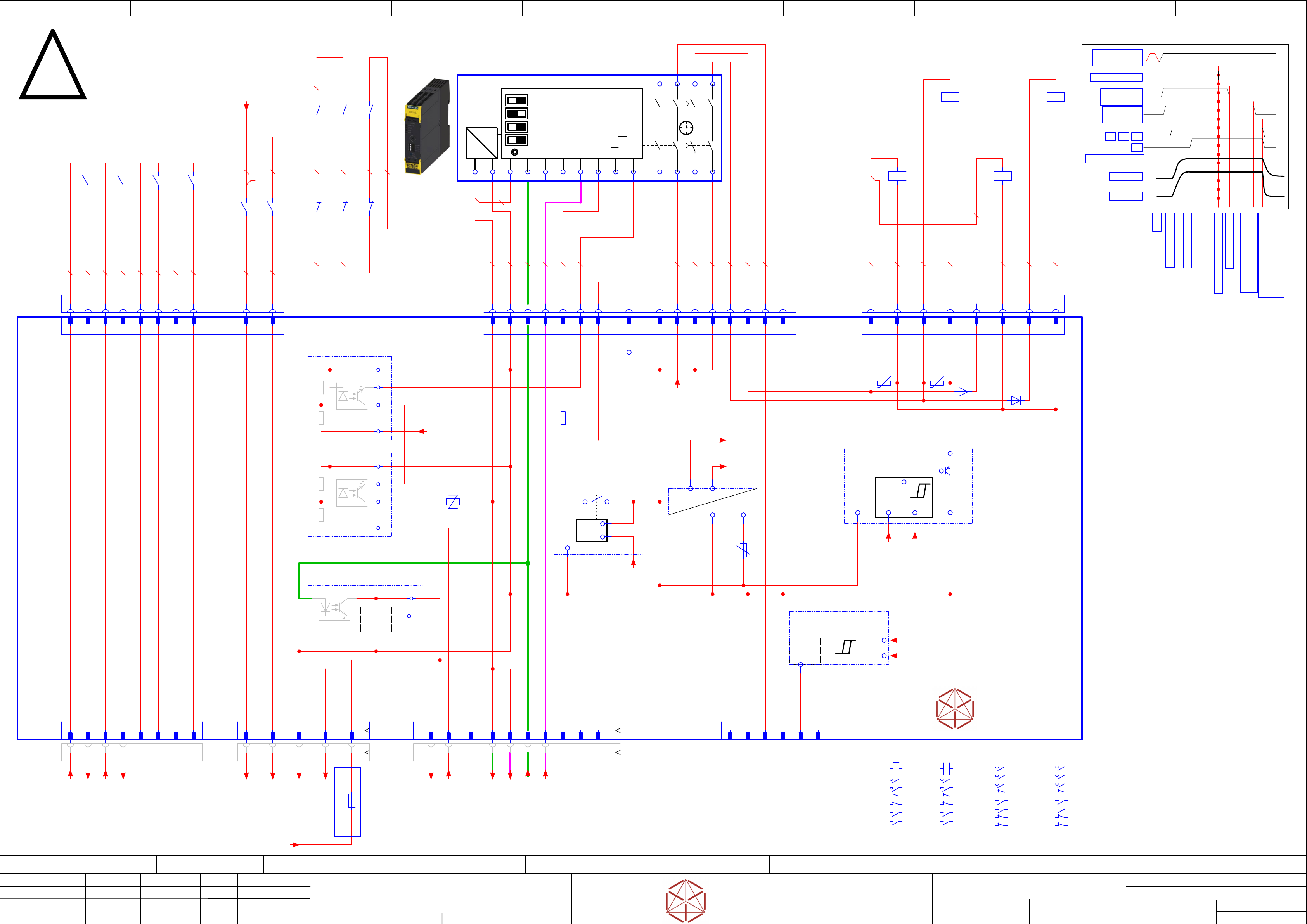

Function: Emergency
==EMG=TX_EMG+CSB/116
drawing number:
90012669- EMG
Emergency Loop Documentation
Emer
gency Loop Documentation
Emergency Loop Documentation
Emergency Loop Documentation
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Pingist
Date
Date
Modification
Appr
07.02.2018
Name
Size DIN A2
Sheet
116
/
1
LOGIC
=~
=
+ -
+ -
+ -
+ -
1 | Autostart/Monitored Start
1 | A
utostart/Monitored Start
1 | Autostart/Monitored Start
1 | Autostart/Monitored Start
2 | Cross Fault Detection Off/On
2 | Cr
oss Fault Detection Off/On
2 | Cross Fault Detection Off/On
2 | Cross Fault Detection Off/On
3 | 2 single ch. sensors / 1 double channel Sensor
3 | 2 single ch. sensors / 1 double channel S
ensor
3 | 2 single ch. sensors / 1 double channel Sensor
3 | 2 single ch. sensors / 1 double channel Sensor
4 | Startup Test Yes/No
4 | Startup T
est Yes/No
4 | Startup Test Yes/No
4 | Startup Test Yes/No
SET / RESET
SET / RESET
SET / RESET
SET / RESET
T
T
T
T
- not used -
Parts shown at this page
are for safety related purposes.
To be replaced by
original parts only!
03108631-010301le3
Timing chart
S
S
S
S
Start
Start
Start
Start
Precharge done
Precharge done
Precharge done
Precharge done
Emergency STOP event
Emergency STOP event
Emergency STOP event
Emergency STOP event
K1,K2, K3, K4 off delay;
K1,K2, K3, K4 off delay;
K1,K2, K3, K4 off delay;
K1,K2, K3, K4 off delay;
Discharge external Cap
Discharge external Cap
Discharge external Cap
Discharge external Cap
-->Power off
-->P
ower off
-->Power off
-->Power off
Safety relais off
Safety relais off
Safety relais off
Safety relais off
Safety relaais off delay
Safety relaais off delay
Safety relaais off delay
Safety relaais off delay
> 100 ms; <180 ms
> 100 ms; <180 ms
> 100 ms; <180 ms
> 100 ms; <180 ms
Precharge start
Precharge start
Precharge start
Precharge start
DC 300 V
DC 300 V
DC 300 V
DC 300 V
DC 160 V
DC 160 V
DC 160 V
DC 160 V
K2
K2
K2
K2
POWER_ENABLE
POWER_ENABLE
POWER_ENABLE
POWER_ENABLE
K1
K1
K1
K1 K4
K4
K4
K4K3
K3
K3
K3
PCC output
PCC output
PCC output
PCC output
delayed
dela
yed
delayed
delayed
PCC output
PCC output
PCC output
PCC output
not delayed
not dela
yed
not delayed
not delayed
EMG_Loop_OK
EMG_Loop_OK
EMG_Loop_OK
EMG_Loop_OK
SW_CTRL_ON
SW_CTRL_ON
SW_CTRL_ON
SW_CTRL_ON
Start
Start
Start
Start
Safety_Loop 1&2
Saf
ety_Loop 1&2
Safety_Loop 1&2
Safety_Loop 1&2
to Distributor -X22
to Distributor -
X22
to Distributor -X22
to Distributor -X22
4x Safety Loop Extern
4x Saf
ety Loop Extern
4x Safety Loop Extern
4x Safety Loop Extern
seperated circuit diagram
ITS4141
Load-switch
&
-F1
-F2
24V_PCC
24V_PCC
24V_PCC
24V_PCC
&
GND_Safety
GND_Saf
ety
GND_Safety
GND_Safety
ITS4141
Load-switch
&
A1
INK
IN1
IN2
A2
13
23
37
47
INF
INS
38
48
T2
T1
PAR
-K5
-K5
-K5
-K5
Safety relay 2-chanel
Saf
ety relay 2-chanel
Safety relay 2-chanel
Safety relay 2-chanel
Safety relay 2NO S=0, 2NO, S=1 (50 ms - 3000ms)
Saf
ety relay 2NO S=0, 2NO, S=1 (50 ms - 3000ms)
Safety relay 2NO S=0, 2NO, S=1 (50 ms - 3000ms)
Safety relay 2NO S=0, 2NO, S=1 (50 ms - 3000ms)
SIE.3SK1121-2CB41
03114826
14
24
Safety Relais connect
-X100.CSB
-
X100.CSB
-X100.CSB
-X100.CSB
-K1
-K1
-K1
-K1
Relay Safety
300V, 160V
A1
A2
A1 A2
1 2
3 4
2221
/116.2
3132
/116.2
1413
4443
/116.1
SIE.3TC4417-0AB4
-K3
-K3
-K3
-K3
Relay Safety
42V, 24V
A1
A2
1 2
3 4
5 6
2221
5453
/116.0
6463
/116.0
7271
8281
/116.2
EAT.DILM17-01(RDC24)
-K4
-K4
-K4
-K4
Relay
Pre-charge
300V, 160V
A1
A2
1 2
3 4
5 6
2122
/116.2
5453
/116.1
6463
/116.1
7271
8281
EAT.DILM17-01(RDC24)
OUT2_ND
DC 24V Safety controlled PL=d
3
GND Safety
8
Loop-CLSD
A5
Loop2-IN
B1
nc
B2
Loop1_IN
A3
Loop ext 1-1
1
Loop ext 1-2
2
Loop ext 2-1
3
Loop ext 2-2
4
Loop ext 3-1
5
Loop ext 3-2
6
Loop ext 4-1
7
Loop ext 4-2
8
A5 B18
GND Safety
2
GND Safety
4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
CH2-OK
16
16
CH1-OK
15
15 5
24V-PCC
B5
24V-PCC
B6
B5
nc
1
PPWR-present
5
nc
6
-A2
-
A2
-A2
-A2
Safety breaker
Saf
ety breaker
Safety breaker
Safety breaker
PCB Pre-/discharge assembly
PCB Pr
e-/discharge assembly
PCB Pre-/discharge assembly
PCB Pre-/discharge assembly
-X28.CSB
-
X28.CSB
-X28.CSB
-X28.CSB
AuxContacts
-X28
-
X28
-X28
-X28
AuxContacts in
-X27.CSB
-
X27.CSB
-X27.CSB
-X27.CSB
Safety
contactor
-X30
-
X30
-X30
-X30
Safety
Loop extern
-X24B
-X24B
-X24B
-X24B
Safety
control signals
-X24B.CSB
-X24B.CSB
-X24B.CSB
-X24B.CSB
Safety control
signals to FDB
-W10
-X29.CSB
-X29.CSB
-X29.CSB
-X29.CSB
Safety Loop
& Signals
extern
-W11.1
-X29
-
X29
-X29
-X29
Safety Loop
& Signals
-X31
-
X31
-X31
-X31
Auxiliary
(RFU signals)
-K2
-K2
-K2
-K2
Relay Safety
300V, 160V;
Power enable
A1
A2
A1 A2
1 2
3 4
2221
/116.2
3231
/116.2
1413
4344
/116.2
SIE.3TC4417-0AB4
START_SIG
Safety Start
Signal input
A6
A6
0,75 YE0,75 YE
-K3
-K3
-K3
-K3
81
82
-K4
-K4
-K4
-K4
22
21
-K1
-K1
-K1
-K1
21
22
-K1
-K1
-K1
-K1
32
31
-K2
-K2
-K2
-K2
21
22
-K2
-K2
-K2
-K2
31
32
0,75 YE
0,75 YE 0,75 YE
0,75 YE
0,75 YE
24V0
Safety unit
5
24V_PCC
7
7
nc
A4
nc
B3
nc
B4
B2 B3 B4A4 B6 A3
0,5 PK
0,5 WH
0,5 PK
0,5 PK
0,5 WH
0,5 WH
0,5 PK
0,5 YE
-K3
-K3
-K3
-K3
63
64
-K3
-K3
-K3
-K3
53
54
-K4
-K4
-K4
-K4
53
54
-K1
-K1
-K1
-K1
43
44
0,5 YE
0,5 YE
-K4
-K4
-K4
-K4
63
64
0,5 YE
0,5 YE
0,5 YE
0,5 YE
0,5 BN
0,5 BN
0,5 YE
0,5 YE
0,5 YE
0,5 YE
-K2
-K2
-K2
-K2
44
43
0,5 BN
0,5 WH
0,5 YE
0,5 YE
0,5 YE
0,5 BN
0,5 PK
0,5 PK
0,5 PK
0,5 YE
0,5 BN
0,5 BN
0,5
BN
-X30.CSB
-
X30.CSB
-X30.CSB
-X30.CSB
Safety
Loop Extern
-W11.2
1 2 3 4 5 6 7 8
-F11
-F11
-F11
-F11
Supp1_SSK_RDY
6,3A
6,3A
6,3A
6,3A
A2 Fuse & Distripution
1 2 3 4 5 6 7 8
nc
9 10 11
nc
12 13 14 15 16
nc
15
OUT2_ND
13
OUT2_D
16
nc
1
K1-A1
1 2
2
GND
8
8
GND
14
OUT1_D
6
6
GND
5
5
A3-K1
7
7
K4-A1
-X100
-
X100
-X100
-X100
Safety relais connect
-X27
-
X27
-X27
-X27
Safety
contactor
3 4
3
K2-A1
4
GND/K5
-R42
60VAC(100mW)
-R43
60VAC(100mW)
-D18
1
24V_PCC
2
GND
3
Loop1_IN
4
Loop2_IN
5
T2
6
START
7
TestLoopIn
8
nc
-R128
0R
Test_loop_IN
+
+
-
-K1
-K1
-K1
-K1
Safety loop
closed signal
24V0
L_CLSD
9
24V0
10
24Vext
11
24V0
12
24V0
-D50
-P300.pbc
-P300.pbc
-P300.pbc
-P300.pbc
Voltage-Trigger
300V precharge bypass control
Out
GND
24V0
24V.Safe
24V
.Safe
24V.Safe
24V.Safe
Safe DC
internal supply
24VSafe
24V0
-K2
-K2
-K2
-K2 Start_loop
-
+
+
in
out
GND
DIAGN_K_N
-K3
-K3
-K3
-K3 Start_loop
-
+
+
in
out
GND
START_SIG
24V_PCC
24V_PCC
24V_PCC
24V_PCC
PCC supply
undervoltage lockout
OUT
24V_PCC
IN
24V0
DIAG
U_Mon
-Out
-PPWR.PRESENT
-PPWR.PRESENT
-PPWR.PRESENT
-PPWR.PRESENT
Voltage-Trigger
300V/160V PPWR-present
(300V > 60V & 160V > 60V)
P300V
P160V
-DI0_Safety_Loop_OK
+DI/117.1
-Loop2-IN
-Loop2-IN
-Loop2-IN
-Loop2-IN
+DI/117.1
-Loop1_OUT
-Loop1_OUT
-Loop1_OUT
-Loop1_OUT
+DI/117.1
-Safety_Start_SSK
+DI/117.1
-Loop2_OUT
-Loop2_OUT
-Loop2_OUT
-Loop2_OUT
+DI/117.1
-Loop1-IN
-Loop1-IN
-Loop1-IN
-Loop1-IN
+DI/117.1
==+-24V_F12_Aux
-Safety_Loop1_ext.in
+DI/117.2
-Safety_Loop1_ext.out
+DI/117.2
-Safety_Loop2_ext.in
+DI/117.2
-Safety_Loop2_ext.out
+DI/117.2
-GND_1
-CH1-OK
-CH2-OK
-PCC-POWER-OK
DC 24 V
from Power Supply PS4
24V-Supply
-P300V
-P160V
VDIFFMON1
300V
VDIFFMON2
160V
24VSafe
Safe supply
P_GND
Power Ground
DIAGN_K_N
DIAGN_RD_N
