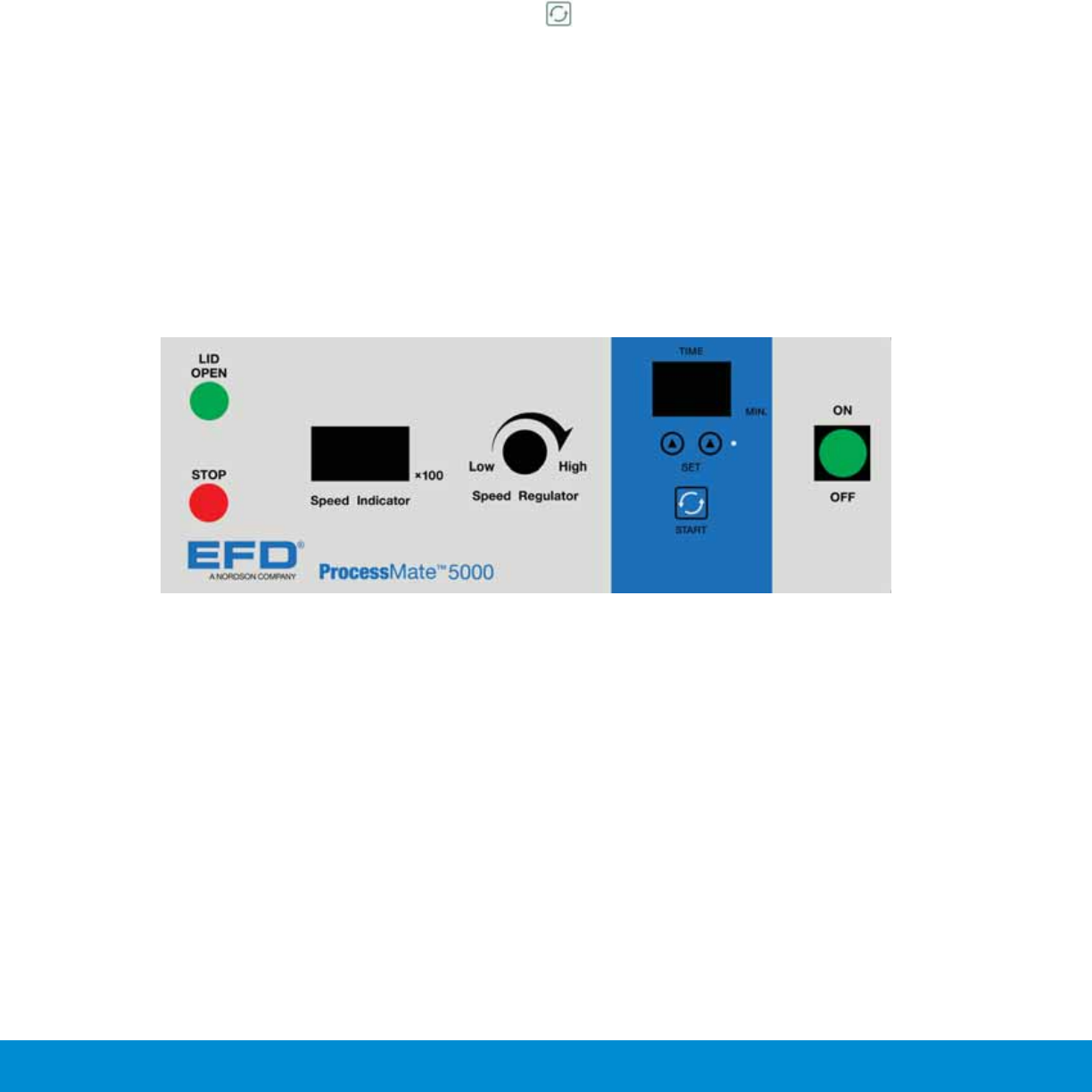

5. Set Time
The PM5000 Centrifuge has a time adjustment from 1 to 99 minutes in increments of 1 minute.
Use the “▲” UP Arrows to set minutes of operation.
6.
Start
Once time and speed is set simply press the start button to start the PM5000 Centrifuge. The
Centrifuge will spin at the speed and duration of the set parameters. Upon completion the unit will
automatically apply a brake on the rotor to slow down and stop the rotor within the centrifuge. Once
the rotor is at a complete stop, a audible buzzer will alarm notifying the user the spin cycle has
completed.
8. The Centrifuge takes approximately 15 – 20 seconds to accelerate to set speed.
9. After the set time has elapsed, the PM5000 will automatically activate the automatic braking system
to slow down and stop rotation of the rotor. The set values of TIME and RPM will reset back to 0,
and 3 audible “beep” alarm will alert you of the completion of the spin cycle.
10. Press LID OPEN button and Lid release knob to open the lid and safely remove contents.
Warning
Do not use flammable and dangerous chemical solution in centrifuge.
Caution
Inspect all components prior to installing this centrifuge.
Note: Always remember to press “LID OPEN” button & Push Lid Release Knob to open lid.
14
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe +44 (0) 1582 666334 Asia +86 (21) 3866 9006
Sales and service of EFD dispensing systems are available worldwide.
Error Codes
Err-1 Rotor is unable to rotate. (Defective drive motor or malfunctioning PCB)
Err-3 An attempt to open LID while rotor is still spinning.
Err-5 Imbalance rotor, related to weight distribution of contents.
Err-8 The set RPM is exceeding the maximum speed for rotor and contents.
WARNING
1. To avoid electrical shock, always disconnect from power supply prior to maintenance & Servicing.
2. Only qualified personnel or licensed engineers should attempt any maintenance or servicing
the PM5000.
3. Always use a properly grounded electrical outlet of correct voltage rating.
4. Inspect centrifuge unit before use of unit to make sure there are no issues before use.
15
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe +44 (0) 1582 666334 Asia +86 (21) 3866 9006
Sales and service of EFD dispensing systems are available worldwide.
Opening Lid Manually – Power Failure
Note:
In case of power failure, the lid will remain locked as designed. If the lid needs to be open in this
situation manually overriding the safety switch is required.
To manually open lid, kindly use the following procedures:
Steps:
1. Remove the hole plug (white) located on the left hand side of the PM5000 enclosure.
2. Insert a screwdriver or any sturdy object into the hole, and press down onto the magnetic interlock
assembly as shown in step #1. Simultaneously at this time push on Lid-Release-Bar on the right
(#2）to release lid
3. The lid will now open.
Maintenance & Servicing
There are very few serviceable items on the PM5000. Please check with EFD technical Service for
servicing to the ProcessMate PM5000.
