Page +$1:+$ 125 DECAN S1 Electric Power (8/8) NO. PA R T N O . P ART NAME Q'TY Old N o. Supply Supply L T Reference 1 A M03-007057 A CABLE ASS Y -TB1_FS1_F S2 1 2 A M03-027417A CABLE ASSY -PS1_PS3 AC PW T 5L 1 3 A M…
Page
+$1:+$
124
DECAN
S1
Electric Power (8/8)
1
2
4
5
3
8
9
10
76
1L2
1L1
AC220V
FROM CP1
1L21L1
-FUSE1 (AC250V,10A)
SC-CN1
+24V 24G
+24V
24G
-FUSE2 (AC250V,10A)
1L1 1L2
-PS2
24G
-PS3-PS1
AM03-027416A
A1
A2
A5
A3
A6
AM03-027417A
+24V
SM48_PW111-2
A2
A1
A4A3
T6L
(CONN)
SC-CN2
AM03-014501A
Z-DRV-PWR
B1 B2
B4 B5
B3
B6
TO FRONT
0.75mm(BLK)
0.75mm(BLK)
0.75mm(BLK)
A4
RY1
7
8
34
56
(SM511C_PW005)
0.5mm(BLK)
-TB2
1A
1B
2A
2B
AM03-014721B 0.2mm(BLK)
0.2mm(BLK)
0.5mm(BLK)
A1
A2
A5
A3
A6
B1 B2
B4 B5
B3
B6
A4
A2
A1
A4A3
1,2
3,4
1,2
3,4
FEEDERBASE
6A(Max 16A)
6A(Max 16A)
GENERAL IO
R STEP
CONV STEP
AM03-014720A
(SM511C_FD002)
D-S1_PW201-1
D-S1_PW101-1
A5
A6
B1
B2
TB1
11A
12A
11C
12C
STEP DRV(FULL DUAL)
A5
A6
B1
B2
B3 B4
B5 B6
B3 B4
B5 B6
0.8mm(BLK)
SM48C_PW202
EP18-900034
LY1N(AC200/220V)
AM03-007057A
< FRONT OPERATION>
-PS1
T5L
(CONN)
AM03-027415A
0.5mm(BLK)
D-S1_PW112-1
4A
F1A
F1-C
9C
F2-C
10C
4B 5B5A
F1B
F2A
F2B
4C
9A
DC POWER(400W)
(+)
PE06
(-)
AC IN
24VDC
DC POWER(400W)
(-)
24VDC
(+)
AC IN
PE07
DC POWER(400W)
(-)
24VDC
(+)
AC IN
PE06-1
2
2
2
2
2
F FEEDER IO CN13
REMOTE CON
PS3
2
2
REMOTE CON
AM03-026997A
D-S1_PW124
REMOTE CON
PS3
PS4
TB2-1A
RY1-5
TB2-2A
RY1-6
2
SM511C_FD004
AM03-014713A
SM511C_FD005
AM03-014714A
Changes when the front operation mode is selected
2
Page
+$1:+$
125
DECAN
S1
Electric Power (8/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-007057A CABLE ASSY-TB1_FS1_FS2 1
2 AM03-027417A CABLE ASSY-PS1_PS3 AC PW T5L 1
3 AM03-027416A CABLE ASSY-PS1_PS3 AC PW T5L 1
4 AM03-027415A CABLE ASSY-PS1_PS3 DC PW T6L 1
5 AM03-014501A #N/A #N/A
6 AM03-014713A CABLE ASSY-F LEFT FEEDER BASE PWR 1
7 AM03-014714A CABLE ASSY-F RIGHT FEEDER BASE PWR 1
8 AM03-014720A CABLE ASSY-AC_RELAY_ POWER 1
9 EP18-900034 RELAY LY1N(AC200/220V) 6
10 AM03-014721B CABLE ASSY-F FDR PWR RELAY 1
Page
+$1:+$
126
DECAN
S1

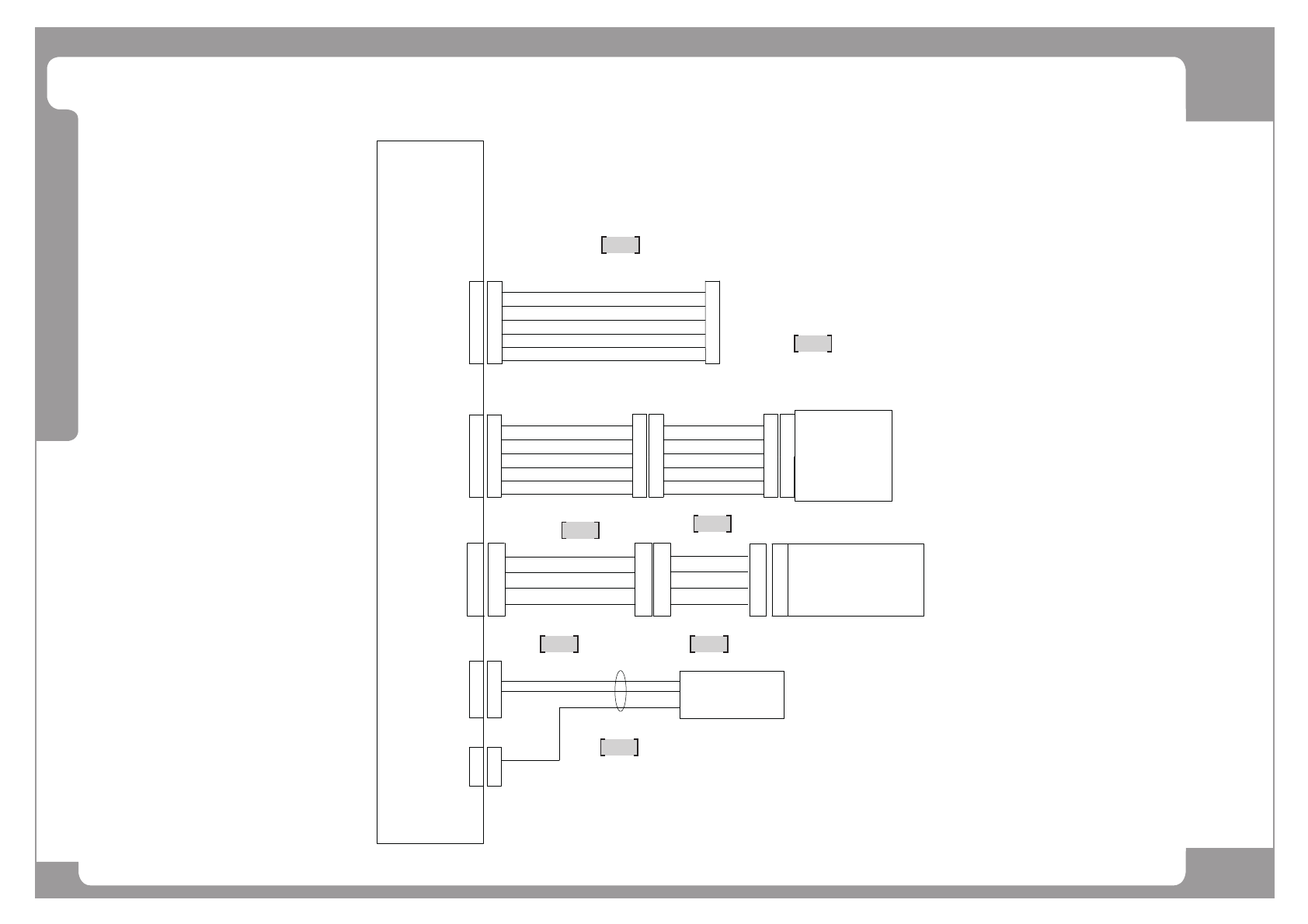

Front Feeder Board Interface (1/2)
1
2
3
4
5 6
7
AM03-026603A
FRONT FEEDER I/F
BOARD
CAN_H
CAN_L
/IO_RESET
+24G
+12G
+12V
4
5
6
4
5
6
4P
CN4P
6P
CN2P
3
3
CN2S
1
2
1
2
HEAD CAN
D-S1_FL002(13)
D-S1_CA104
3
4
5
6
2
1
FRONT FEEDER BASE
RIGHT B/D
FEEDER OUTPUT #31~#60
~
~
12 12
CN8P
12P
1
CN12S
1
11
60
60P
~
60
~
CN6P
CN6S
CAN_H
CAN_L
/IO_RESET
+24G
+12G
+12V
4
5
6
4
5
6
6P
CN3P
3
3
CN3S
1
2
1
2
4
5
6
3
2
1
D-S1_CA104-1
4
5
6
3
2
1
4
5
6
3
2
1
4
5
6
3
2
1
SM48_CA104
FFD-CAN
CV-CN2
CONVEYOR IF BD
22
44
33
1 1
SAFETY CONTROL BD
24G
24G
+24V
+24V
SM511_FD101-1
4
4
SACO-CN21
2
3
1
2
3
1
FFD-PW
SM511_FD101
2
4
3
1
2
4
3
1
SM_FD004
J90800839D
AM03-010866C
AM03-010867B
AM03-027092A
AM03-006942A
AM03-027093A
