SP22P Mechanical20091001 - 第45页
1 18A5C211162 TABLE 1 2 18A5C211171 TABLE 1 3 18A5C211561 SHAFT 3 4 18A5C261040 PW003C1 1 5 18A5C261051 NUT 8 6 18A5C261093 DOG 1 7 18A5C281092 BALL-SCREW W1400-170Y-C3T2(DA) 3 8 KXF07JRAA00 PH-SENSOR PM-L53-C1 1 A 9 18A…
1 18A5C211162 TABLE 1
2 18A5C211171 TABLE 1
3 18A5C211561 SHAFT 3
4 18A5C261040 PW003C1 1
5 18A5C261051 NUT 8
6 18A5C261093 DOG 1
7 18A5C281092 BALL-SCREW W1400-170Y-C3T2(DA) 3
8 KXF07JRAA00 PH-SENSOR PM-L53-C1 1 A
9 18A5C262141 BRACKET 1
10 KXF07AAAA00 T-BELT 050-XL-0315E-F 1
11 KXF00KSAA00 BEARING 6200ZZ 6
12 KXF02JNAA00 LM-BEARING LMF16LUU 4
13 18A5C281581 LM-SHAFT SF16h5-219L(DA) 4
14 KXF03LVAA00 BOLT STBA6-40 3
15 KXF04U1AA00 BOLT Hexagon socket head cap screw M8×35L(DA) 4
16 18A5C262092 BRACKET 1
17 18A5C281032 BALL-SCREW W1400-169Y-C3T2(DA) 1
18 KXF08AWAA00 SPACER CU-310 2
19 KXF04UJAA00 NUT Hexagon nut M10 3-type 2
20 KXF00JZAA00 BEARING 6000ZZ 10
21 18A5C262084 BRACKET 1
22 KXF07JSAA00 PH-SENSOR PM-L53B-C1 6 A
23 18A5C262150 PLATE 1
24 KXF0861AA00 AMP F10CR 2 A
25 KXF00JZAA00 BEARING 6000ZZ 8
26 KXF04EHAA00 SCREW Cross recessed truss head screw M3×6L 8
27 KXF05UDAA00 WASHER MSRB10-1.0 19
28 18A5C212120 ROLLER 2
29 18A5C261150 BRACKET 2
30
NO
番号
ＭＯ機番
ユニット名称
基板位置決め&ﾘﾌﾄ:SP22P-M
UNIT NAME
PART NUMBER
品番 部品名 型式 数量 ﾗﾝｸ 備考

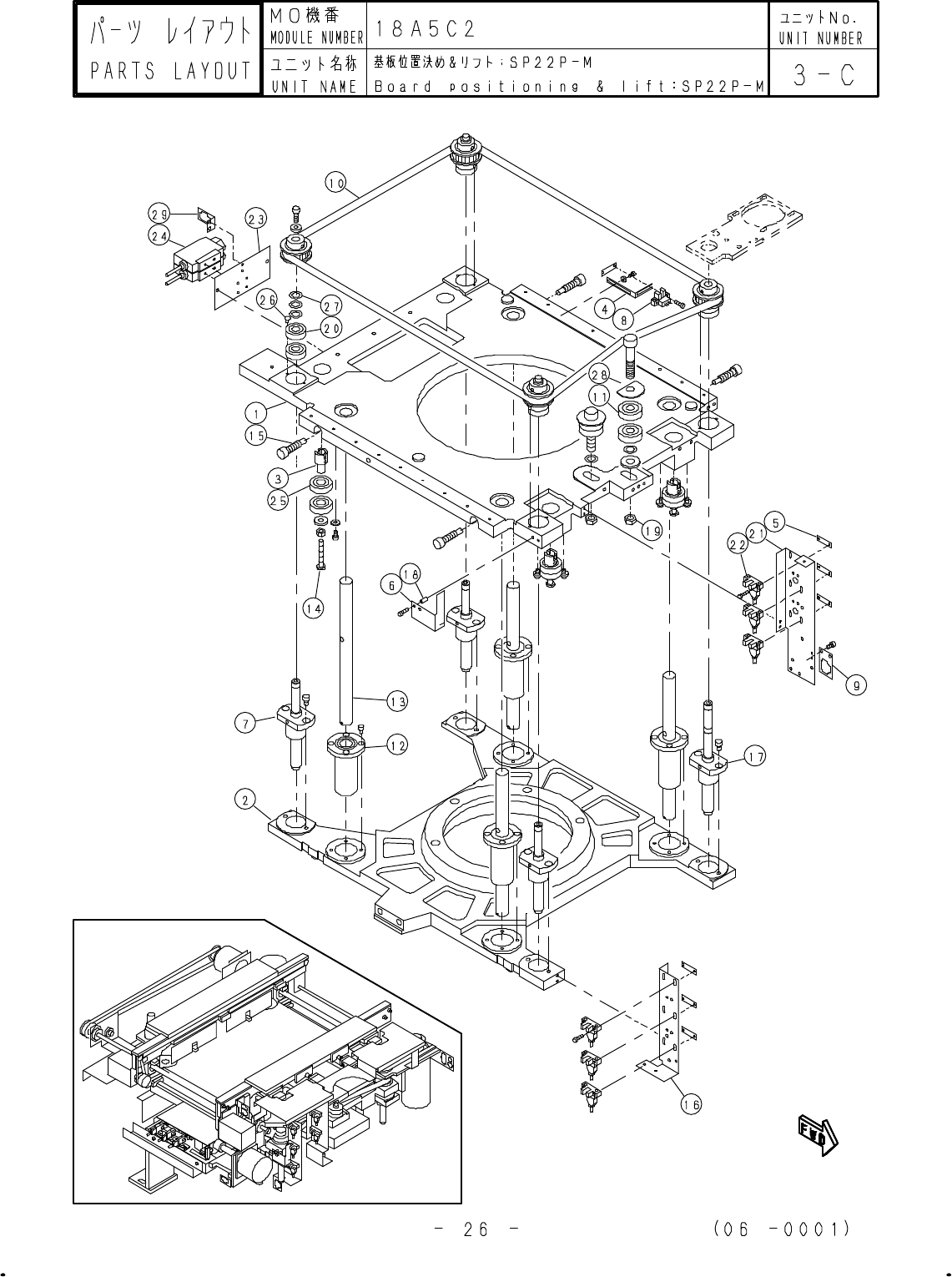

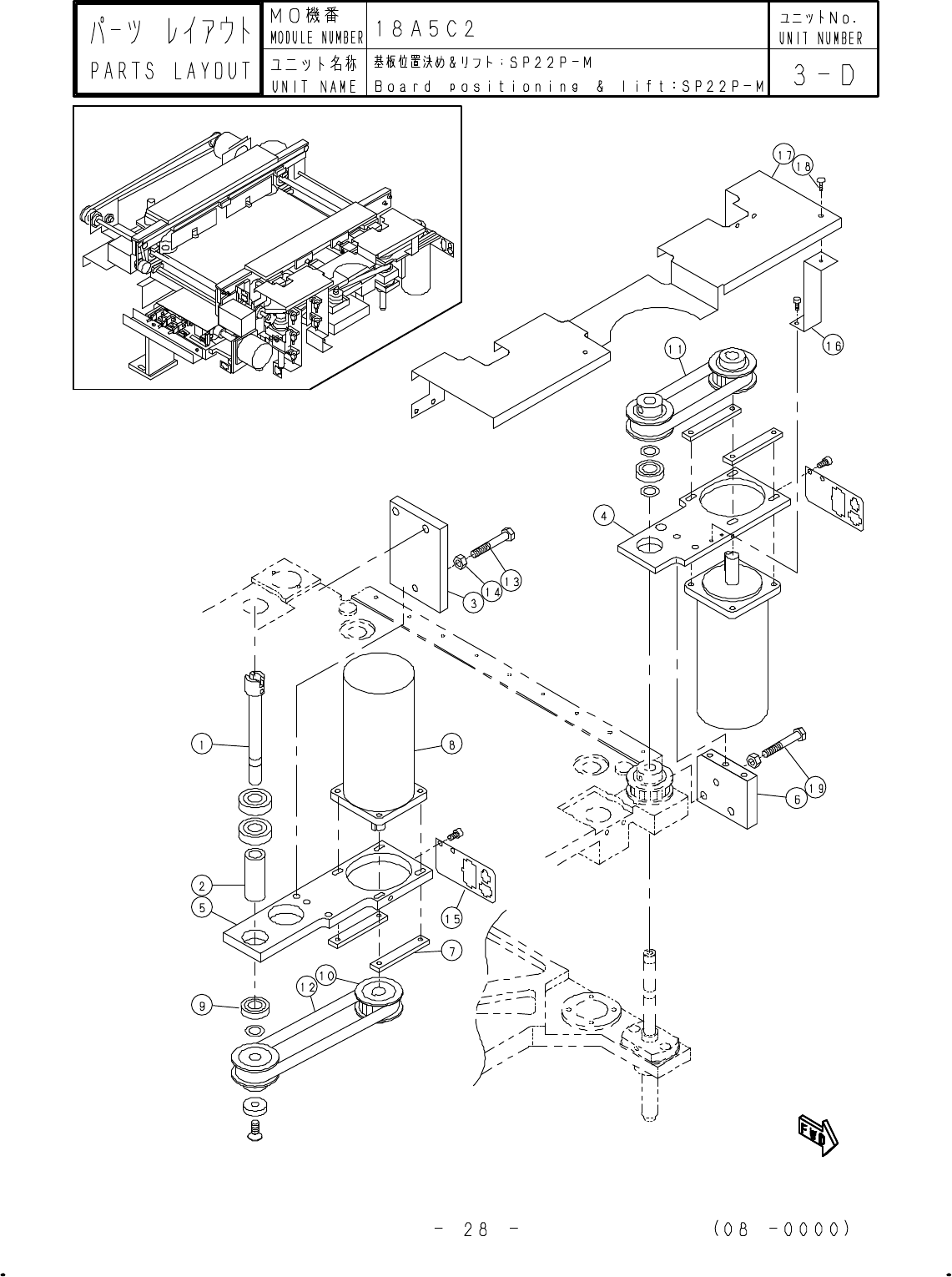

Board positioning ＆ lift:SP22P-M
PART LIST
MODULE NUMBER
パーツリスト
18A5C2M0000
3-C
UNIT NUMBER
ユニットＮｏ.
PART NAME TYPE Q'TY RANK REMARKS
− −27 07 0001−（ ）
