1 11DKC211042 FRAME 1

2 11DKC211162 SPACER 1

3 11DKC261011 BRACKET 1

4 11DKC261021 BRACKET 2

5 11DKC261070 PW107C1-T 1

6 11DKC261090 PW109C1 1

7 11DKC261100 PW112A1 1

8 11DKC261111 BRACKET 2

9 11DKC261130 PW004A0 2

10 KXF03G0AA00 BEARING SFB38-10 2

11 KXF002MAA00 MOTOR 103-770-1 1

12 KXF01VQAA00 PH-SENSOR DS4R 2

13 KXF01PDAA00 CYLINDER CJPB15-15-B 1

14 KXF02SZAA00 JOINT M-5ALU-4 1

15 KXF08BXAA00 COUPLING MOL-25-φ6.35×φ6.35 1

16 KXF04BEAA00 WASHER Thick washer for M4 6

17 KXF04BGAA00 WASHER Thick washer for M5 10

18 KXF08W0AA00 COLLAR ASC10-16-5.5 1

19 11DKC261150 BRACKET 1

20 11DKC211180 GUIDE 1

21 11DKC261160 BRACKET 1

22

23

24

25

26

27

28

29

30

NO

番号

ＭＯ機番

ユニット名称

右搬送ｺﾝﾍﾞｱ:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Right transfer conveyor:SP22P-M

PART LIST

MODULE NUMBER

パーツリスト

11DKC2M0000

11-B

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −80 04 0003−（）

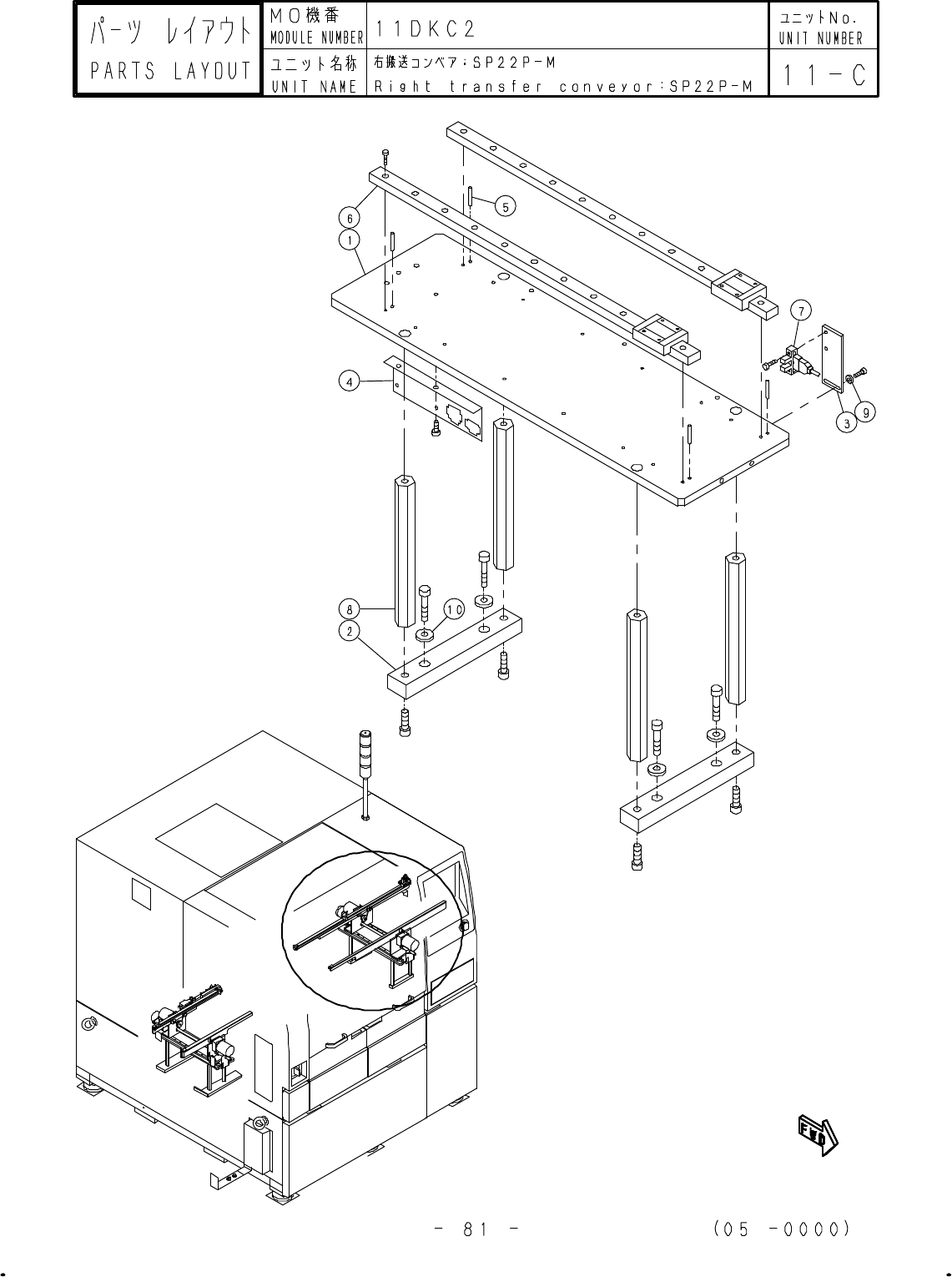

1 11DKC211071 PLATE 1

2 11DKC211082 PLATE 2

3 11DKC261050 PLATE 1

4 11DKC261121 BRACKET 1

5 KXF052EAA00 S-PIN Spring pin φ3×18L 4

6 KXF08B4AA00 LINEAR-WAY LWL15C1R430CSH 2

7 KXF07JRAA00 PH-SENSOR PM-L53-C1 1 A

8 KXF08SPAA00 POST LSBF17-164-M6-N6 4

9 KXF04BDAA00 WASHER Thick washer for M3 8

10 KXF04BJAA00 WASHER Thick washer for M6 4

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

NO

番号

ＭＯ機番

ユニット名称

右搬送ｺﾝﾍﾞｱ:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Right transfer conveyor:SP22P-M

PART LIST

MODULE NUMBER

パーツリスト

11DKC2M0000

11-C

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −82 06 0000−（）
