1 KXFP01LAA00 NF FN223-6-06 1

2 KXFP02JAA00 CP NRF110-8A 1

3 KXF003CAA00 FAN 109-601 1

4 EC55CAM0000 PCB 1

5 SCMYEDM0000 PCB 1

6 ELL2EAM0000 PCB 1

7 NFM0CGM0000 P.C.B.ASSY 1

8 MCMAENM0000 PCB 2

9 PRMEEQM0000 PCB 1

10 MTMEEAM0000 PCB 1

11 310BS1M0000 UNIT 1

12 EC14E0M0000 PCB 1

13 PU02E290010 POWER KMS-01/CPU-B 1

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

NO

番号

ＭＯ機番

ユニット名称

CPUBOX&配線

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

CPU box & wiring

PART LIST

MODULE NUMBER

パーツリスト

33T9CBM0000

1

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −4 02 0009−（）

1 KXFP585AA00 METER TH142U 1

2 330DC090020 MAGNET-CONTACTER SC-4-0 1

3 330DC090030 MAGNET-CONTACTER SC-03 1

4 KXFP57QAA00 SK R･A･V-781BXZ-2A 1

5

6 KXFP5JCAA00 CP CP31V/10DN 1

7 KXFP58LAA00 CP CP31V/5DN 2

8 KXFP58JAA00 CP CP31V/1DN 1

9 KXFP5XCAA00 THERMAL-RELAY TR13EH-T 1

10 KXFP4EYAA00 TERMINAL-BLOCK BTBH30CU4 1

11 KXFP546AA00 TERMINAL-BLOCK BTBH15CU10 1

12 KXFP4ETAA00 TERMINAL-BLOCK BTBH30CU12 1

13 KXFP57EAA00 POWER-SUPPLY RWS50A-24/A 1

14 KXFP02BAA00 TRANS NBD-1KF 1

15 KXFP51QAA00 TERMINAL-BLOCK BTBH50CU8 1

16 KXFP4EXAA00 TERMINAL-BLOCK BTBH30CU2 1

17 330DC090180 RELAY G6B-1114P-FD-US 12 2

18 330DC090190 RELAY G6B-1114P-FD-US 24 2

19 330DC090200 RELAY-SOCKET P6BF-4BND 24V 1

20 330DC090210 SSR G3TA-OA202SZ DC12V 5

21 KXFP49DAA00 SSR-SOCKET P7TF-05 5

22 330DC090230 FAN 109S-485UL 2

23 330DC090260 SAFETY-RELAY SNO2004-17(A) 1

24 KXFP507AA00 SWITCH S-422T 2

25 KXFP037AA00 SW TR-M100-60B 1

26 KXFP5DHAA00 PCB DVOP0850 1

27 330DC090750 CAPACITOR MZAX-039 5

28 KXFP5RNAA00 MO-DRIVER MSD3DE0DDDYP 1

29 34KCS096010 POWER-UNIT 1

30 34KCS096020 DRIVER-UNIT 4

NO

番号

ＭＯ機番

ユニット名称

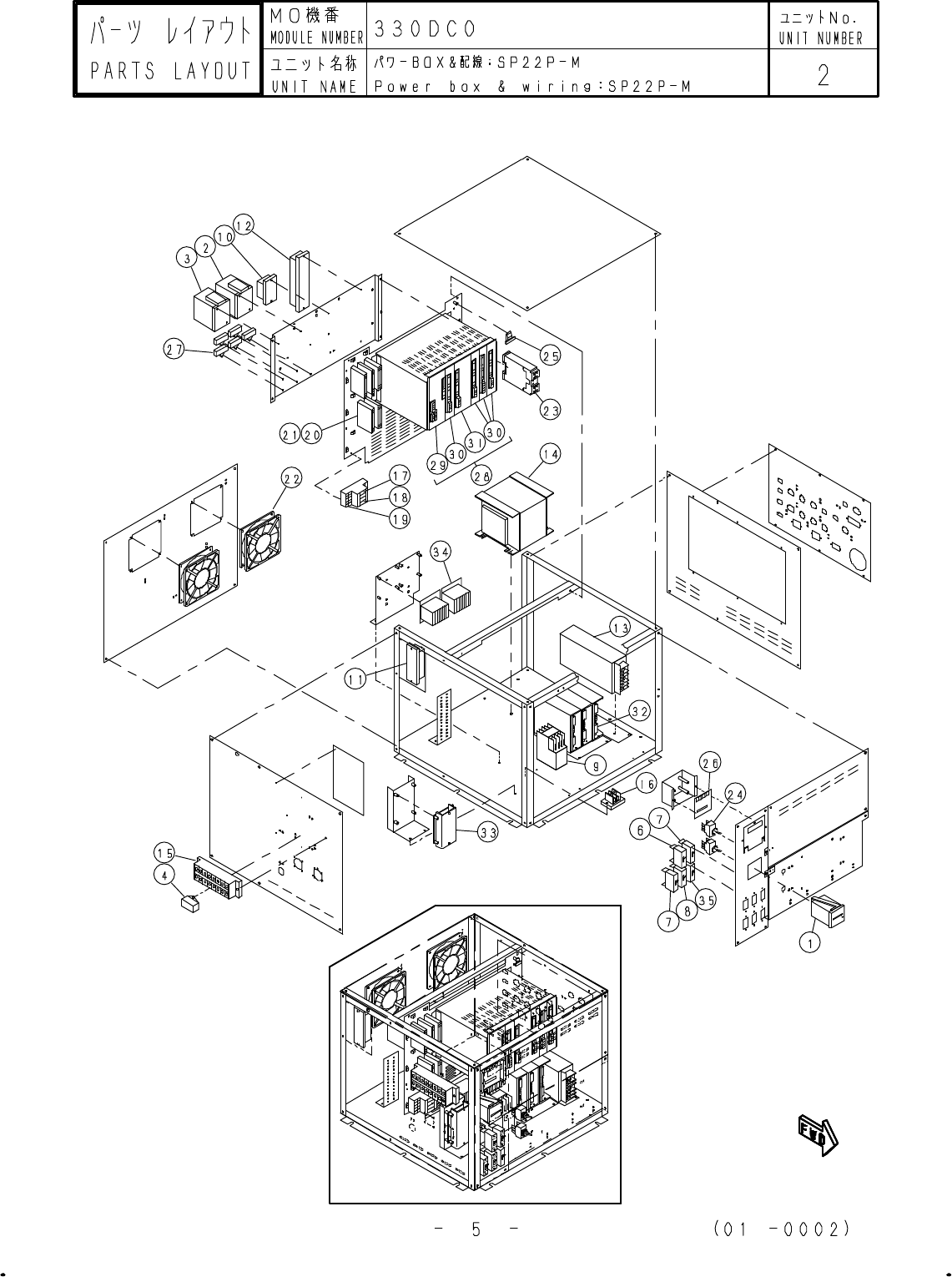

ﾊﾟﾜｰBOX&配線:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Power box & wiring: SP22P-M

PART LIST

MODULE NUMBER

パーツリスト

330DC0M0000

2

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −6 02 0004−（）
