1 18A4C011020 BAR 4

2 18A4C011031 PLATE 1

3 18A4C011050 BRACKET 4

4 18A4C011060 PLATE 5

5 18A4C011071 PLATE 5

6 18A4C011080 PAD 29

7 18A4C081010 RAIL AFD3090B-270(DA) 1

8 KXF082UAA00 CYLINDER CXSL15-15-Z73S 1

9 KXF00YSAA00 SPEED-CONTROLLER AS1211F-M5-04 2

10 KXF07D1AA00 VALVE SY3120-5LOZ-M5 1

11 KXF07CXAA00 GASKET SY3000-11-3 1

12 KXF08D8AA00 SCREW SY3000-23-4 2

13 KXF02D3AA00 JOINT KQS04-M5 2

14 KXF04VPAA00 NUT Hexagon nut M6 3-type 4

15 KXF0779AA00 KNOB KNM-24-M6×16 4

16 18A4C081110 SCREW Hexagon socket head fixing screw M3×4L 29

17 18A4C081120 SCREW Hexagon socket head fixing screw M4×8L 29

18 18A4C081130 PIN C-20E φ2.6 53L(DA) 29

19 18A4C011110 PLATE 1

20

21 18A4C011100 BRACKET 4

22 KXF05PNAA00 KNOB Round knob M3 10

23 18A4C081160 TUBE TFU0425B-2(1.5m) 1

24

25

26

27

28

29

30

NO

番号

ＭＯ機番

ユニット名称

基板上押えﾕﾆｯﾄ:SP20P-MA1

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Board top retaining unit:SP20P-MA1

PART LIST

MODULE NUMBER

パーツリスト

18A4C0M0000

1

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −4 02 0002−（）

1 15V6C011130 BRACKET 1

2 15V6C011041 BRACKET 1

3 15V6C011051 SLEEVE 1

4 15V6C011060 BLOCK 1

5 15V6C061030 BRACKET 1

6 KXF08JCAA00 JOINT KSH08-02S 1

7 KXF08JDAA00 SENSOR CX-21 1 A

8 KXF077WAA00 BALL-PLUNGER BPJ6 2

9 KXF08JEAA00 CAP ACO1 Aluminum cap(17705) 1

10 15V6C081080 HOLDER MH170(17728)(DA) 1

11 KXF08JFAA00 BRACKET MS-CX-3 2

12 KXF02SZAA00 ELBOW M-5ALU-4 1

13 KXF07D1AA00 VALVE SY3120-5LOZ-M5 1

14 KXF07CXAA00 GASKET SY3000-11-3 1

15 KXF08D8AA00 SCREW SY3000-23-4 2

16 KXF02D3AA00 JOINT KQS04-M5 2

17 KXF02CQAA00 JOINT KQP-04 1

18 KXF03T9AA00 TUBE TU0425B(3m) 1

19 KXF00YAAA00 SPEED-CONTROLLER AS1001F-04 1

20 KXF08WJAA00 CARTRIDGE PC170(Hard-type) 2 A

21 KXF08WKAA00 PLUNGER PC01 2 A

22 KXF08WLAA00 PLUG PC03 2 A

23 KXF08WMAA00 NOZZLE LOP-32-63 5 A

24

25

26

27

28

29

30

NO

番号

ＭＯ機番

ユニット名称

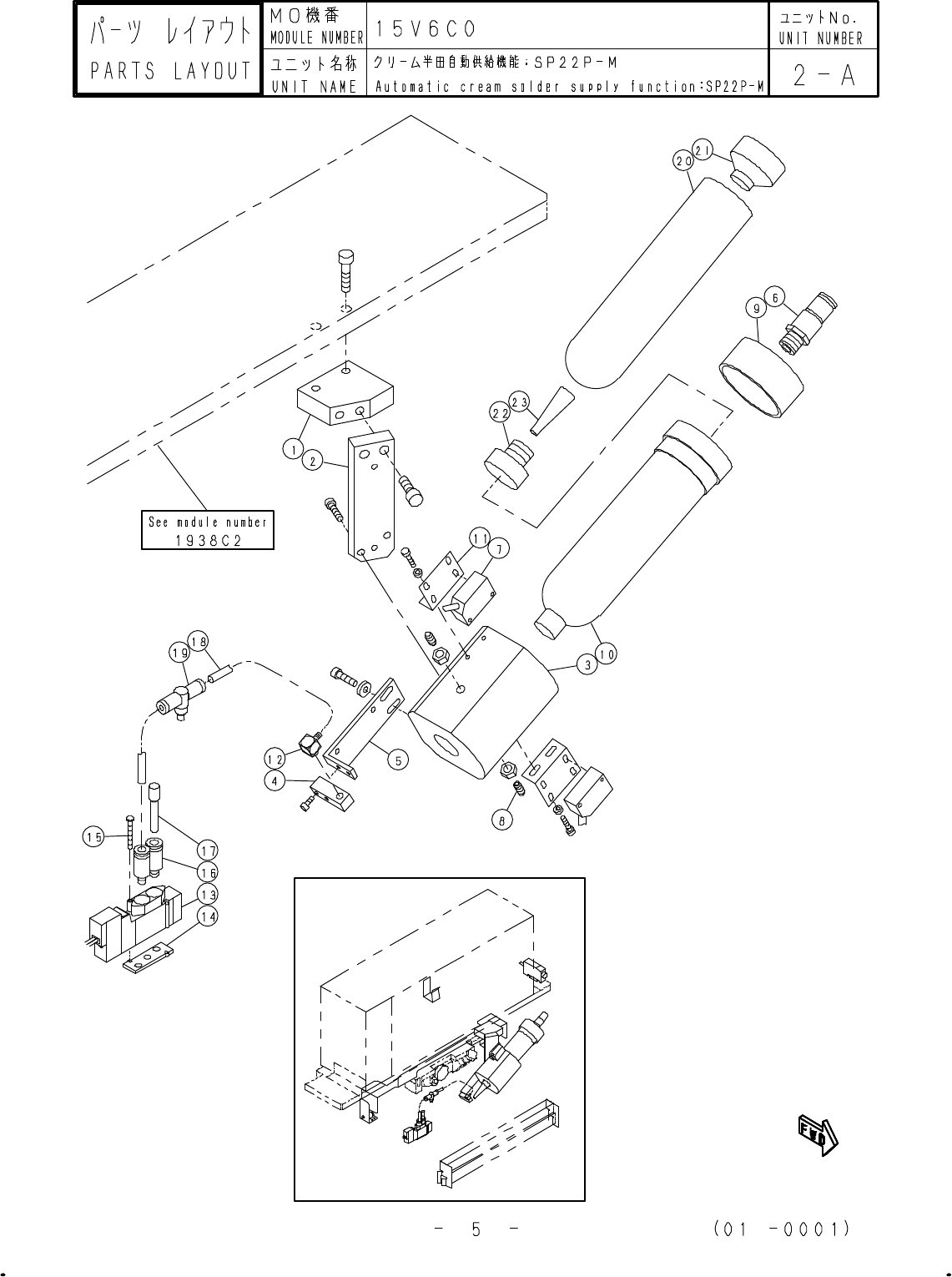

ｸﾘｰﾑ半田自動供給機能:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Automatic cream solder supply functio

PART LIST

MODULE NUMBER

パーツリスト

15V6C0M0000

2-A

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −6 02 0001−（）
