31 00DQC064130 BRACKET 1

32 00DQC017010 GUARD 2

33 00DQC065090 BRACKET 1

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

NO

番号

ＭＯ機番

ユニット名称

本体部:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Main body : SP22P-M

PART LIST

MODULE NUMBER

パーツリスト

00DQC0M0000

1-F

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −18A 12A 0002−（）

1 00DQC064060 BRACKET 1

2 00DQC064070 BRACKET 1

3 00DQC064100 PLATE 1

4 00DQC064110 BRACKET 1

5 KXF02A2AA00 MANIFOLD KM12-08-03-10 1

6 KXF09UQAA00 PRESSURE-SWITCH IS1000E-202Y-X202 1

7 KXF0568AA00 NIPPLE Nipple 3/8 4

8 KXF04ZLAA00 ELBOW Elbow 3/8 2

9 KXF056AAA00 NIPPLE Reducing nipple 3/8×1/4 2

10 KXF0115AA00 REGULATOR AWM2000-02BDG-R 1

11 KXF01TZAA00 VALVE DBV-12C 1

12 KXF054JAA00 TEES Cheese 3/8 2

13 KXF00EAAA00 COUPLER 30PM 1

14 KXF02T2AA00 JOINT M-5AN-6 1

15 KXF00EJAA00 COUPLER 30SH 1

16 KXF00EKAA00 COUPLER 30SM 1

17 KXF05HYAA00 BOTTLE KW-250(DA) 1

18 KXF02CYAA00 JOINT KQR06-08 2

19 KXF02CWAA00 JOINT KQR04-08 2

20 KXF02CRAA00 JOINT KQP-06 1

21 KXF02CQAA00 JOINT KQP-04 1

22 KXF02CSAA00 JOINT KQP-08 4

23 KXF085VAA00 SPACER BSF-460 2

24 KXF03U8AA00 TUBE TU0604BU(1m) 1

25 KXF096YAA00 MANIFOLD SS5Y3-20P-X396 1

26 KXF03TEAA00 TUBE TU0425B-20 1

27 KXF02CMAA00 JOINT KQL12-03S 1

28 KXF02CUAA00 JOINT KQP-12 1

29

30

NO

番号

ＭＯ機番

ユニット名称

本体部:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Main body : SP22P-M

PART LIST

MODULE NUMBER

パーツリスト

00DQC0M0000

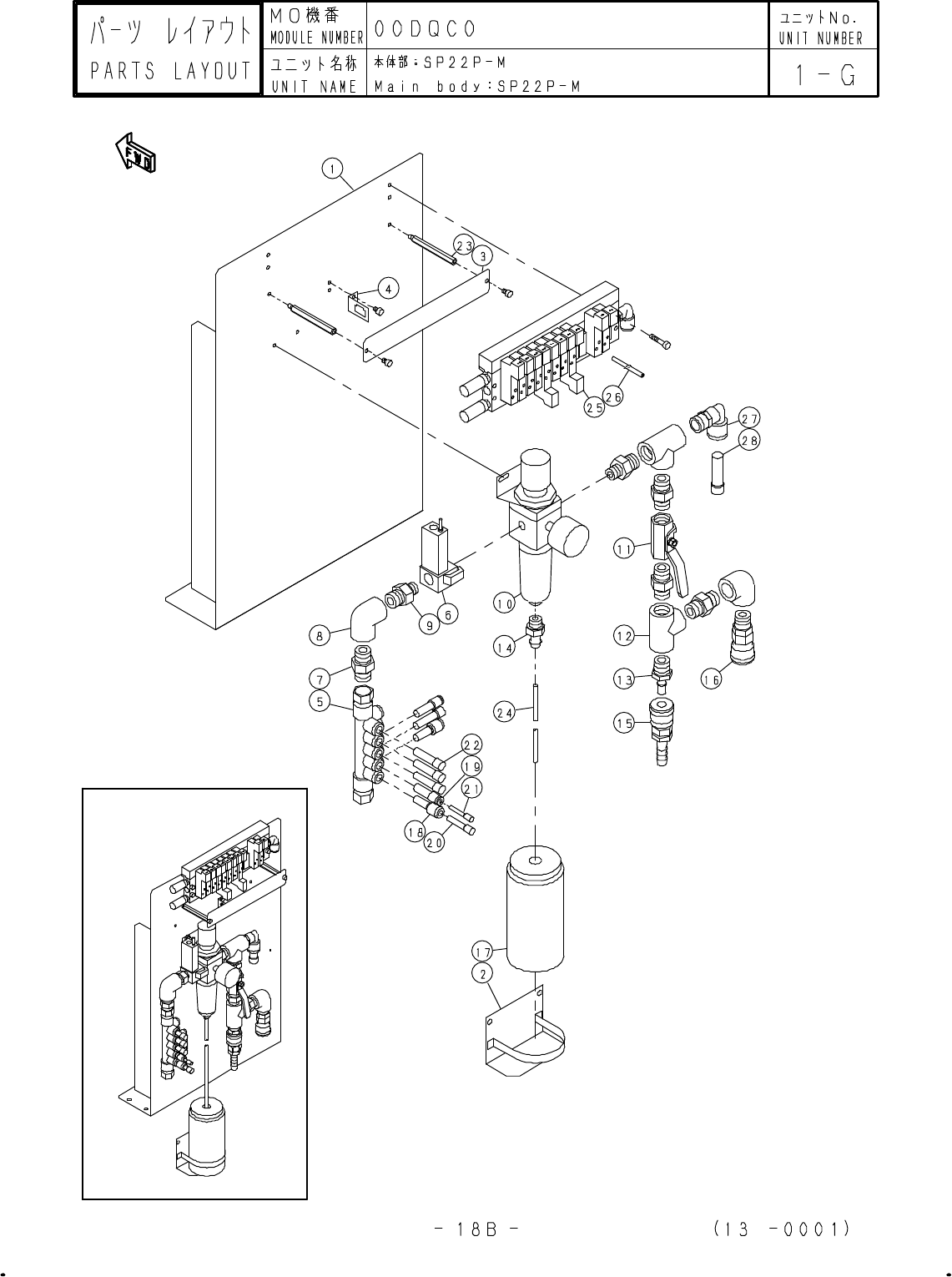

1-G

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −18C 14 0004−（）
