1 18A5C211020 MANIFOLD 1 2 18A5C211035 FRAME 1 3 18A5C211062 GUIDE 2 4 18A5C211112 PLATE 2 5 KXF063VAA00 BOLT Hexagon socket button head screw M4×8L 8 6 18A5C211223 CLAMPER 1 7 8 18A5C211251 NUT 2 9 18A5C211271 BRACKET 1…

1 18A5C211020 MANIFOLD 1

2 18A5C211035 FRAME 1

3 18A5C211062 GUIDE 2

4 18A5C211112 PLATE 2

5 KXF063VAA00 BOLT Hexagon socket button head screw M4×8L 8

6 18A5C211223 CLAMPER 1

8 18A5C211251 NUT 2

9 18A5C211271 BRACKET 1

10 18A5C211476 FRAME 1

11 18A5C211482 BRACKET 2

12 18A5C211502 BRACKET 2

16 18A5C216031 CLAMPER 1

17 18A5C211771 BRACKET 1

18 18A5C266090 PLATE 2

19 KXF07TKAA00 BELT 006-F10-1190Z-JVYY 2 A

20 KXF08ULAA00 FIBER-SENSOR FTV74BC 2 A

21 KXF016EAA00 CYLINDER BDA10×5 2

22 18A5C281291 LINEAR-WAY 1RSR12WVMUUC1+70LPM-Ⅱ(DA) 2

23 KXF0520AA00 S-PIN Spring pin φ2×15L 2

27 KXF02SZAA00 ELBOW M-5ALU-4 8

28 KXF02T3AA00 JOINT M-5AU-4 2

29 KXF04KEAA00 SCREW Hexagon socket set screw M3×6L 4

30 18A5C211711 PLATE 1

番号

ＭＯ機番

ユニット名称

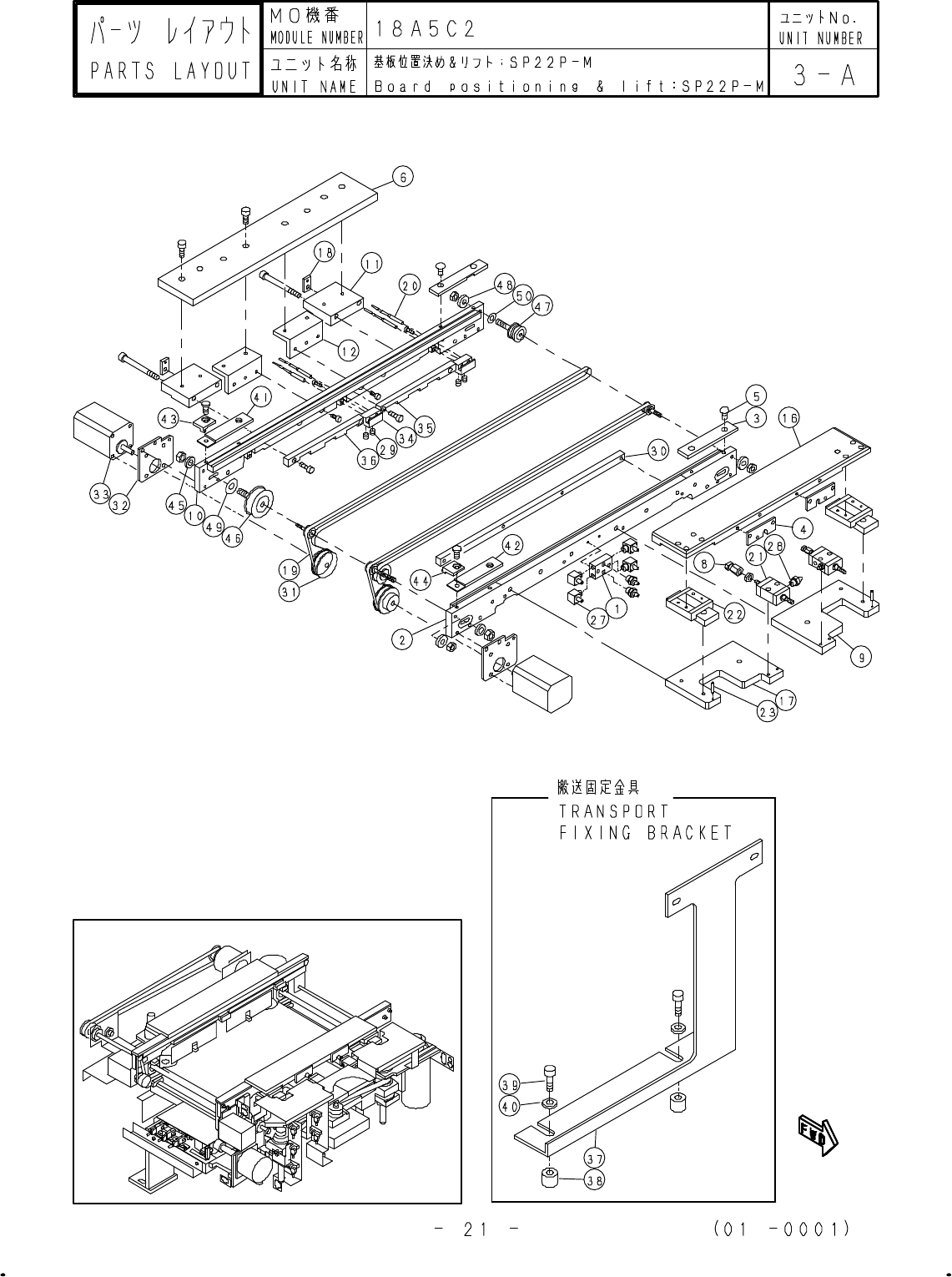

基板位置決め&ﾘﾌﾄ:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Board positioning ＆ lift:SP22P-M

PART LIST

MODULE NUMBER

パーツリスト

18A5C2M0000

3-A

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −22 02 0001−（）
