1 1939C214050 PLATE 1 2 1939C214020 HOUSING 1 3 1939C214030 GUIDE 1 4 1939C264011 BRACKET 1 5 1939C264020 BRACKET 1 6 KXF053LAA00 SOCKET Socket 1 1/4(DA) 8 7 KXF00TLAA00 FILTER AF4000-005 1 8 KXF04ZPAA00 ELBOW Elbow 1 1/…

1 1939C214050 PLATE 1

2 1939C214020 HOUSING 1

3 1939C214030 GUIDE 1

4 1939C264011 BRACKET 1

5 1939C264020 BRACKET 1

6 KXF053LAA00 SOCKET Socket 1 1/4(DA) 8

7 KXF00TLAA00 FILTER AF4000-005 1

8 KXF04ZPAA00 ELBOW Elbow 1 1/4 2

9 KXF060GAA00 HOSE-BAND S-60 8

10 KXF055WAA00 NIPPLE Nipple 1 1/4 7

11 KXF0564AA00 NIPPLE Reducing nipple 2×1 1/4 2

12 KXF0A7FAA00 PUMP PB1011-01-X8 1

13 KXF02BXAA00 JOINT KQL06-01S 1

14 KXF0861AA00 AMP F10CR 1 A

15 KXF04KHAA00 SCREW Hexagon socket set screw M4×4L 2

16 1939C284271 TANK MG5-355-02(DA) 1

17 1939C284282 FIBER-SENSOR FL-7013-1(DA) 1 A

18 KXF07RJAA00 JOINT L4N6×4-PT1/8 4

19 1939C284302 TUBE PN4-6×4(milk-white)5m 1

20 KXF07ZFAA00 C-RING C-type fixing ring for wheel nominal 32 1

21 KXF07ZUAA00 FILTER 150-type Bronze Y-type filter nominal 3/8 1

22 1939C284341 BUSH M-3/8×1/8 SUS 1

23 1939C284321 TUBE PN4-10×6.5(milk-white)5m 1

24 KXF09LEAA00 NIPPLE EN-25×1 1

25 KXF09D4AA00 ELBOW Reducing elbow 1 1/4×1 1

26 KXF00Y7AA00 SPEED-CONTROLLER AS1000-M5 1

27 KXF02TKAA00 NIPPLE M-5UN 2

28 KXF00X6AA00 REGULATOR AR1000-M5B-X507 2

29 KXF02T0AA00 ELBOW M-5ALU-6 4

30 KXF09DHAA00 BOLT Ships Steel Pipe U-Bolts Nominal dimension 50 1

番号

ＭＯ機番

ユニット名称

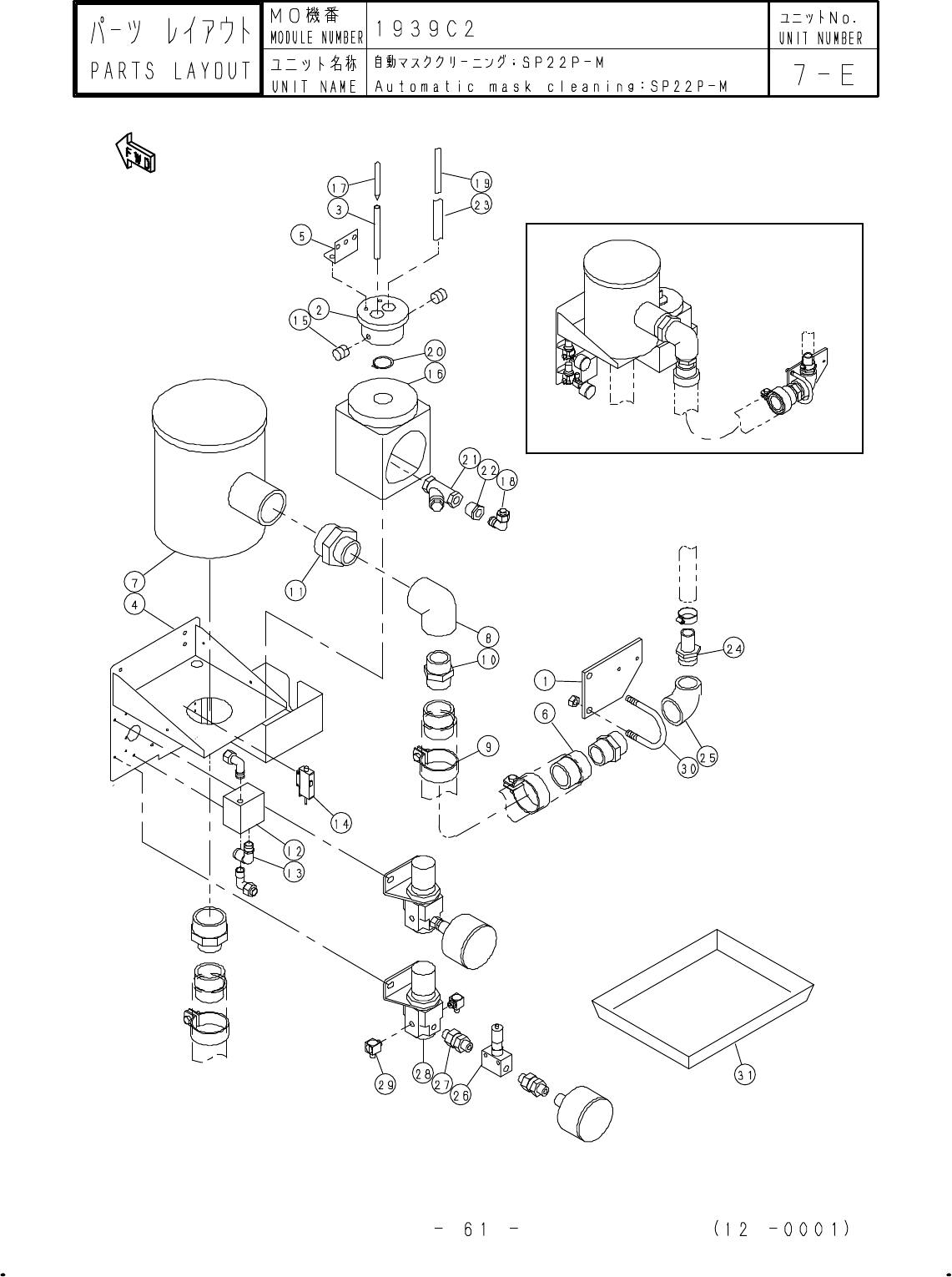

自動ﾏｽｸｸﾘ-ﾆﾝｸﾞ:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Automatic mask cleaning:SP22P-M

PART LIST

MODULE NUMBER

パーツリスト

1939C2M0000

7-E

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −62 13 0003−（）
