DIVISIO 3000 Series
DIVISIO 3100
Compact Depaneling System
Description

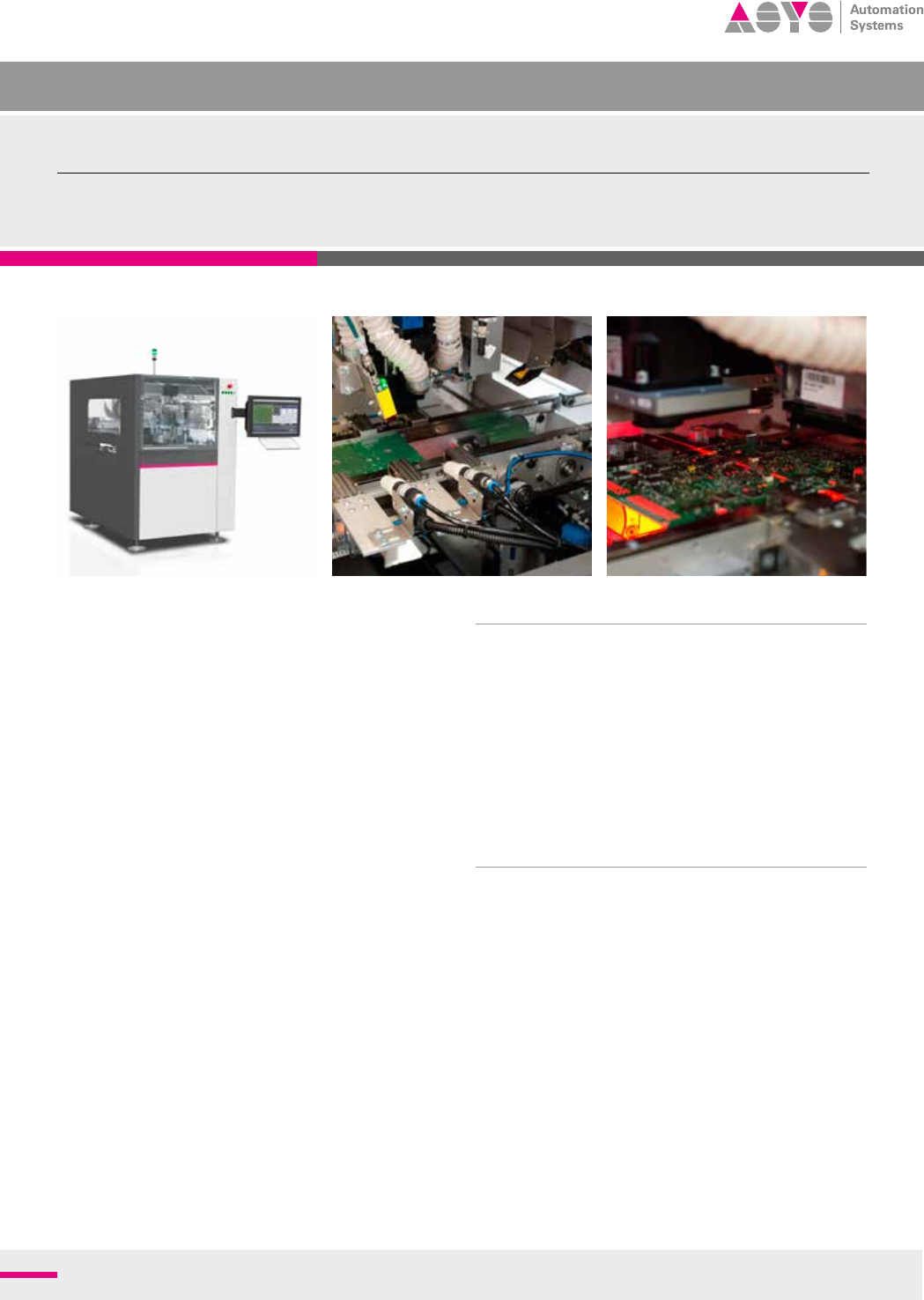

The DIVISIO 3100 is an automatic inline depaneling system
with the smallest footprint. It is the ideal solution for separa-
ting single-row, frameless panels.
The machine has an X/Y/Z-axis system above the transport
level and can be equipped with a saw or router. PCB positio-
ning is done with an integrated stopper unit mounted at the
X-axis. Therefore routing could be done at free definable Y-
positions. Restriction is that no waste could be handled (e.g.
borders, waste corners). With the devided transport system
inside the machine the PCB can be separated.
Subsequently the cut PCB can be transfered out of the machi-
ne. The manual width adjustment is done by a clamping lever.
Features
_ Linear motors for highest dynamics and accuracy
_ Segmental inlet
_ Complete tool management
+ Breakage control
+ Length verification
+ Diameter check
+ Life span monitoring
+ Dynamic utilization of full router bit
_ Automatic tool change
_ Ionization unit
_ Automatic maintenance schedule
Options
_ Saw module or routing spindle 500W
_ ASYCAM CAD data conversion
_ Dust extraction
_ Camera system
+ Fiducial recognition
+ Cut inspection
+ Teach function
+ Correction function
+ Bad mark recognition
+ Code read
_ Automatic width adjustment
_ MES interface
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical specifications are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany
ASYS Automatisierungssysteme GmbH
Benzstrasse 10
89160 Dornstadt, Germany
Tel (+49) 7348 9855 0
Fax (+49) 7348 9855 91
info@asys.de
For more information visit
www.asys-group.com

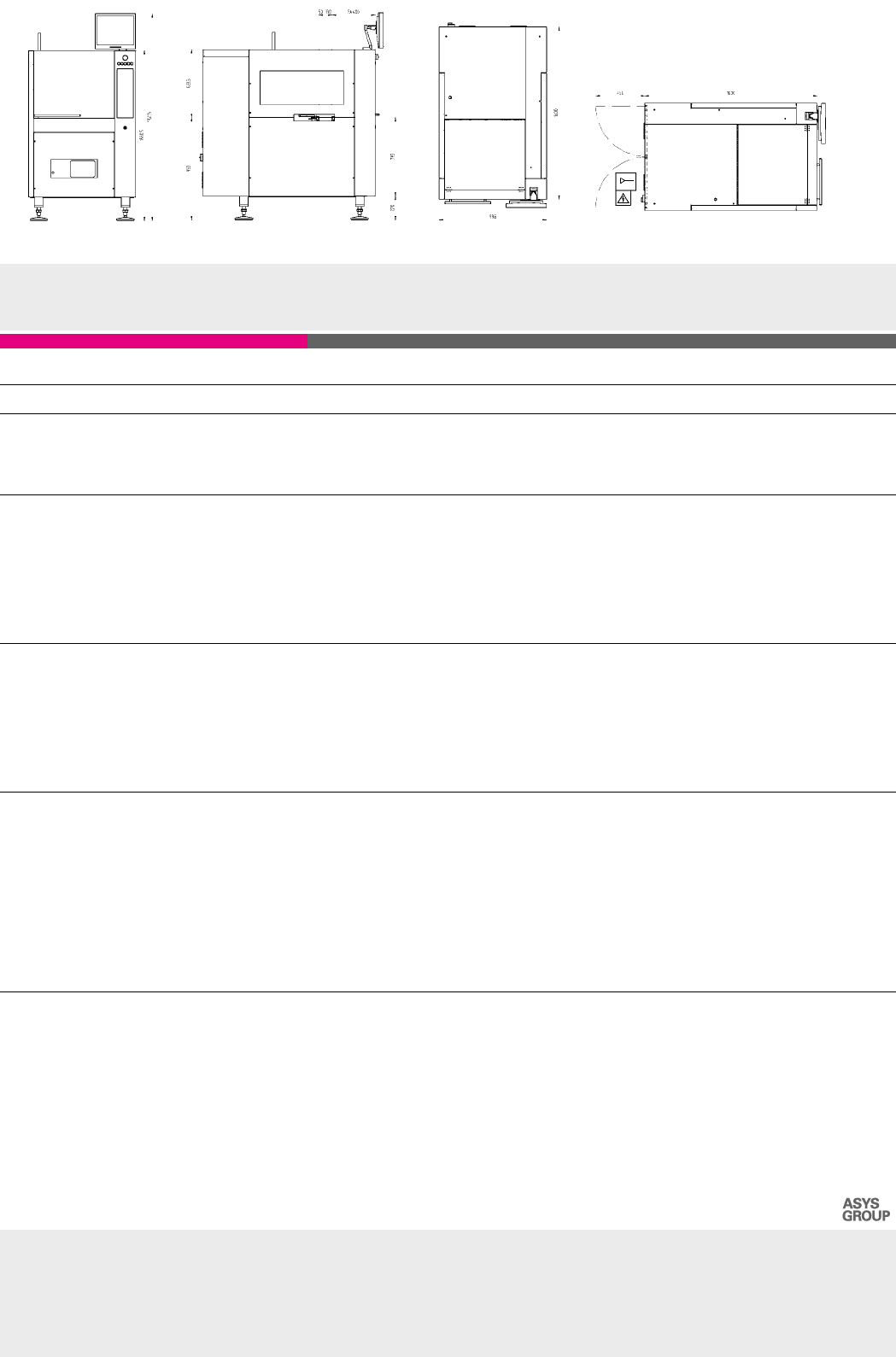

DIVISIO 3100
Routing and/or sawing
Machine Configuration
Transport height
Max. transport width
Operating side
850mm ±50mm
330mm
Front of the machine
Panel Dimensions
Panel length
Panel width
Panel thickness
Panel weight max.
PCB weight max.
Component height, spindle-side
Component height, transport-side
50 to 360mm
50 to 330mm
0.8 to 4.5mm
4.5kg
2.25kg
8mm; partial 18mm (other height on request)
40mm
Installation Requirements
Power supply
Power supply system
Fuse protection
Connection type
Power consumption (without suction)
Air supply
Air consumption
400V, 208V 50/60Hz, ±10%
3L + N + PE
3x C32 A
Fixed connection
0.6kW
6bar
120Nl/min
Machine Description
Length x Width x Height
Weight
Axis speed max.
Axis acceleration max.
Positioning
Repeatability
Cut accuracy
Noise Level
1000 x 1600 x 1580mm
1150kg (standard equipped)
X/Y= 1000mm/s, Z= 500mm/s
X/Y= 10m/s², Z= 15m/s²
±0.01mm (20°C ±1°C)
±0.005mm (20°C ±1°C)
±0.08mm with Vision System (20°C ±1°C)
±0.12mm without Vision System (20°C ±1°C)
< 75dB(A) (possible deviations due to
material mix of the panel)
