8 − 10
8.2.1.2.3 Deleting a registered nozzle
To delete a registered nozzle, use the [Registered nzl no table] command that is
described in Section 8.2.1.1.
(1) Basic Operations
① Select the [File] command on the menu bar, and then select the
[Registered nzl no table] command on the displayed menu to open the
necessary dialog box.
② Select the nozzle number, and press the <DEL> key (see Figure 8.2.1.2.7).

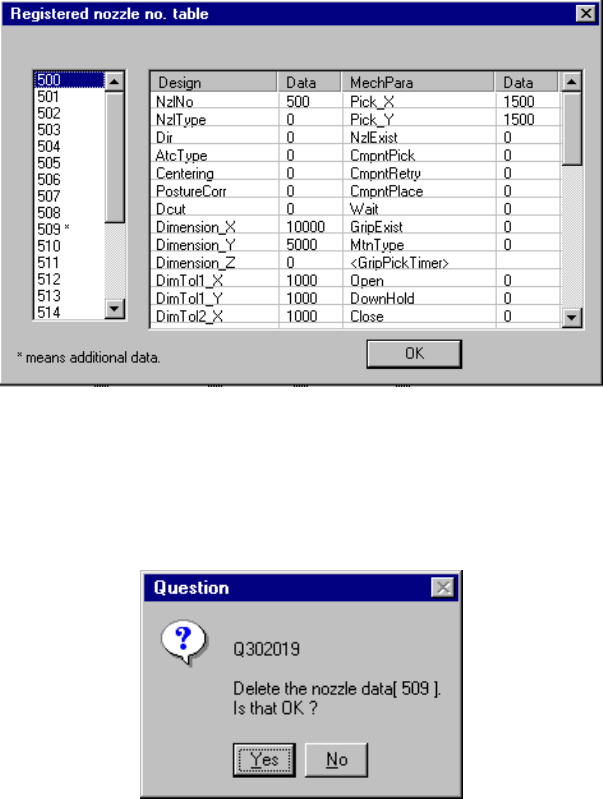

Figure 8.2.1.2.7 “Registered nozzle no. table” dialog box
③ When you click the <Yes> button on the “Question” dialog box, the
selected nozzle is deleted from the registered nozzle number table (see
Figure 8.2.1.2.8).
Figure 8.2.1.2.8 “Question” dialog box
Note: You can delete only additional registered data. You cannot delete any
standard nozzle.
8 − 11
8.2.1.3 Exit
Select [File] on the menu bar, then [Exiting Application], or click the close button (X)
at the upper right corner of the dialog box. The system quits the Machine Setup
menu.
8.2.1.3.1 Saving the settings
Although push buttons <OK>, and <Cancel> and <Apply> are available with each
setup group dialog box, pressing the <OK> or <Apply> button will not save the
data onto the hard disk.
When you change the setting(s) on each Setup group dialog box, a dialog box
appears asking you whether to save the setting(s) or not (see Figure 8.2.1.3.1.5).
When you click the <Yes> button, the setting(s) is (are) saved onto the hard disk.
Figure 8.2.1.3.1.5 Save confirmation screen
Table 8.2.1.3.1.1 Save confirmation buttons
No. Button Action
1 Yes Saves the setting data onto the hard disk.
2 No Cancels the setting data.
3 Cancel Cancels the Exiting Application command.
8.2.1.3.2 Setting the safe direction of each I/O
After you select the [Exiting Application] command, the dialog box shown in Figure
8.2.1.3.2.1 appears on the screen.
Figure 8.2.1.3.2.1 “Reset I/O” dialog box
Table 8.2.1.3.2.1 Buttons for setting the safe direction of each I/O
No. Button Action
1 Yes Sets each I/O safe direction, then quits the Machine Setup menu.
8 − 12
8.2.2 Setting group commands
When you select the [Setting Group] command on the menu bar, the commands
shown in Figure 8.2.2.1 appears on the screen.
Figure 8.2.2.1 Setting Group command items
Note: 1) You cannot select any dimmed menu item. (The displayed available
depending on the model you use)
2) If you have to drive any mechanical part at setup, see Section 8.3
"Mechanical Setup" to drive it.
