13.13.4.2 Coplanarity
−
You have to set the following menu item on the “Option Device enable” tab
shown in Figure 13.13.4.2.
−
Check to see if you check the check box “Coplanarity” in the “Others”
column.
Select the [Setup] command from the menu bar, and the [Machine setup] command.
Next, select the [Setting Group] command on the “Machine setup” menu, then the
[Coplanarity] command. The “Coplanarity” setting dialog box appears on the
screen as shown in Figure 13.13.4.3.
Figure 13.13.4.3 “Coplanarity” setting dialog box
−
For a ball component: the system measures this type of component in the
least squares method regardless of the setting of the menu item “Measure
plane.”
−
For a unidirectional lead connector: the system measures only colinearity
of this type of component in the least squares method regardless of the
setting of the menu item “Measure plane.”
(1) Setting items
No. Item Description
1 Number of Retry Sets the number of a retry operation to be done for a coplanarity check.
2 Measure plane Sets the reference plane used for a coplanarity check.
13 − 37
(2) How to set
① Number of Retry
− Specify a value in the range from 0 to 10 (default: 0).
② Measure plane
− With using the radio button, select either “three-Point problem” or “least
squares method” (default: “three-Point problem”).
13 − 38
13.13.5 Operation options
Select the [Setup] command from the menu bar, then the [Options] and [Operation
option] commands in this order. Click the “Production (Check)” tab. (For details,
see Section 12.4.6 “Setting the Production (Check) option” of Chapter 12
“OPTIONS”.)

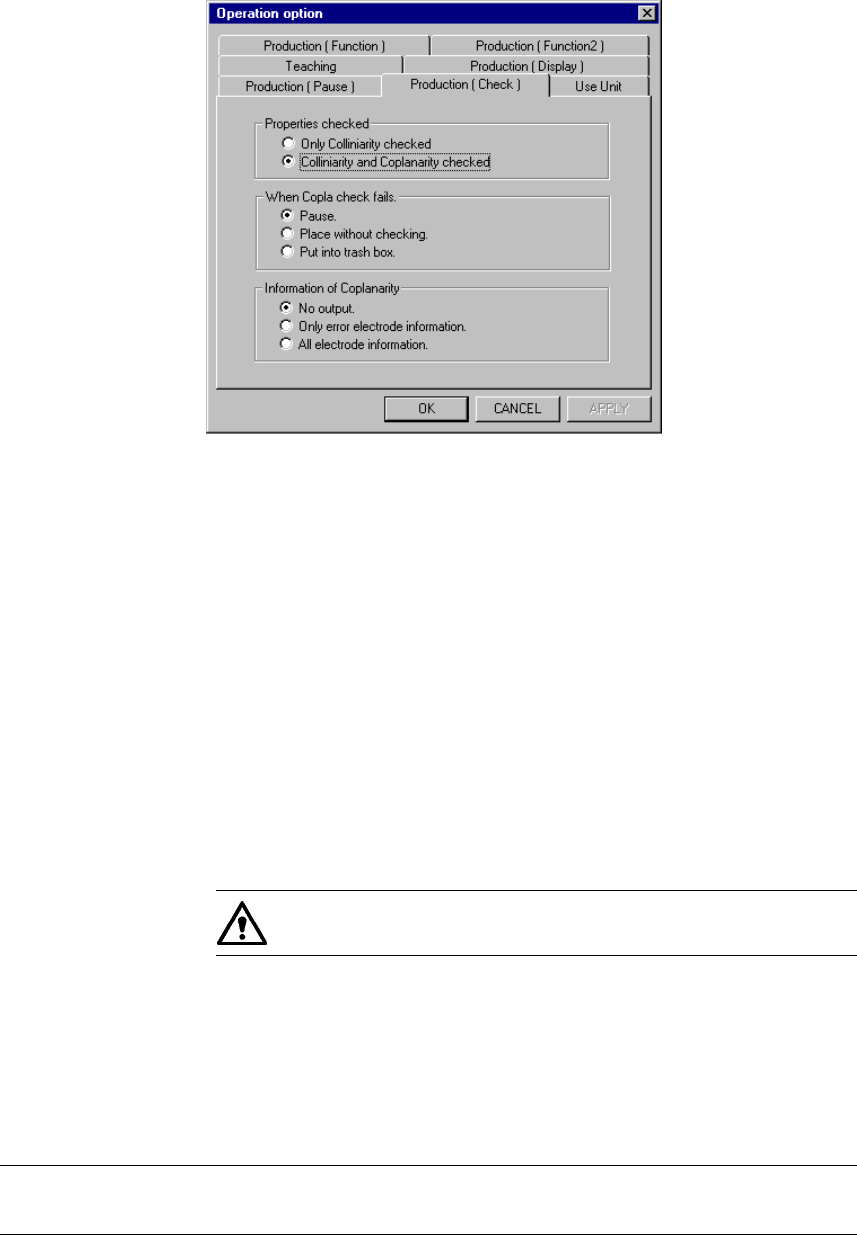

Figure 13.13.5.1 Production (Check) options settings
(1) How to set each menu item
① Properties checked
− Only Colinearity checked
− Colinearity and Coplanarity checked
Click either of the corresponding radio buttons above.
② When Copla check fails.
− Pause.
− Place without checking.
− Put into trash box.
Click one of the corresponding radio buttons above.
Only when you check the radio button “Pause.”, it allows
you to set the menu item “Information of Coplanarity.”
② Information of Coplanarity
− No output
− Only error electrode information
− All electrode information
Click one of the corresponding radio buttons above.
When you make all of the necessary settings, click the <OK> button. If you do
not have to make/change any setting, click the <CANCEL> button.
