14 − 15
14.3.2 Transport sensors
Remove dirt and dust on the sensors.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, turn off the power of the machine before
following the operation above.

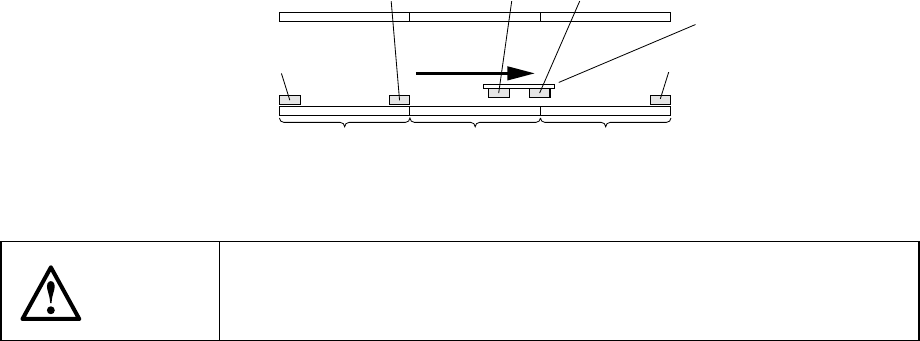

Wait sensor Stop sensor C-OUT sensor
Stopper
Out sensor
Transport
direction
In sensor
Input buffer
station
Centering
station
Output buffer
station
14 − 16

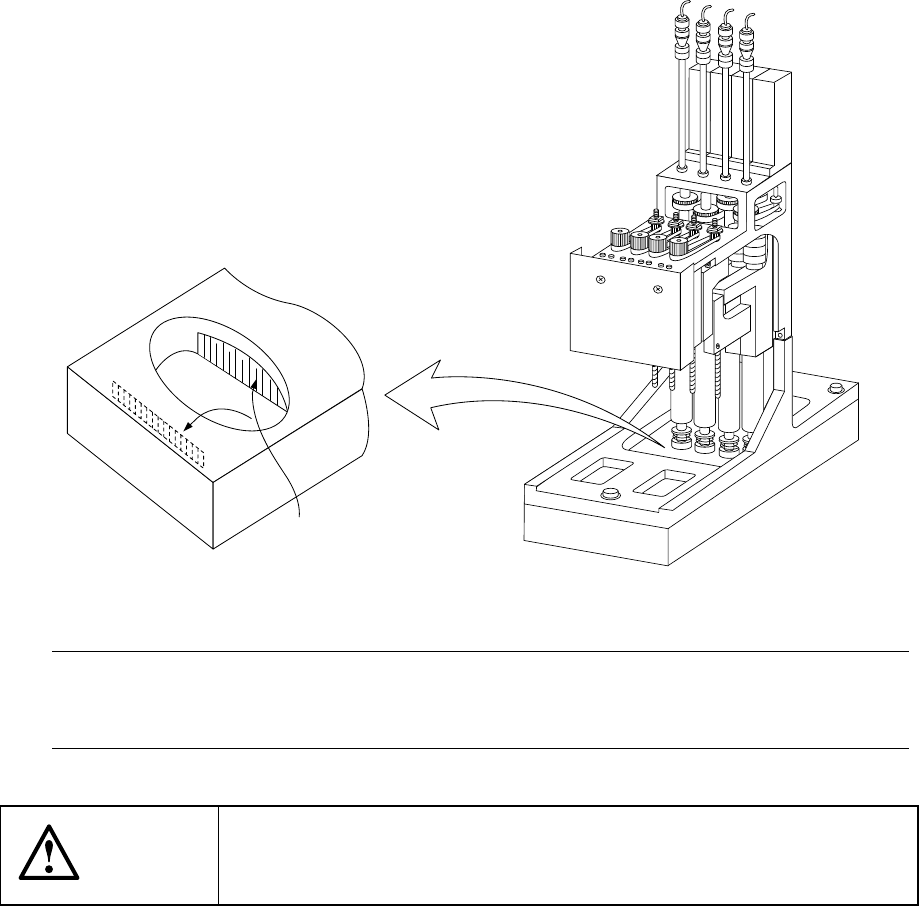

14.3.3 Laser align sensor (MNLA/FMLA head)
14.3.3.1 MNLA head
Check to see if there is any dirt on the sensor window.
If the sensor window is dirty or unclear, clean it with clean cloth or gauze lightly
moistened with alcohol.
Note: If you use not alcohol but any solution such as acetone and thinner, the resin
part around the sensor window may fuse. Never use any solvent other than
alcohol.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before
starting to work.
Sensor window
14 − 17
14.3.3.2 FMLA head
Check to see if there is any dirt on the sensor window.
If the sensor window is dirty or unclear, clean it with clean cloth or gauze lightly
moistened with alcohol.
Note: If you use not alcohol but any solution such as acetone and thinner, the resin
part around the sensor window may fuse. Never use any solvent other than
alcohol.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before
starting to work.
Sensor window
