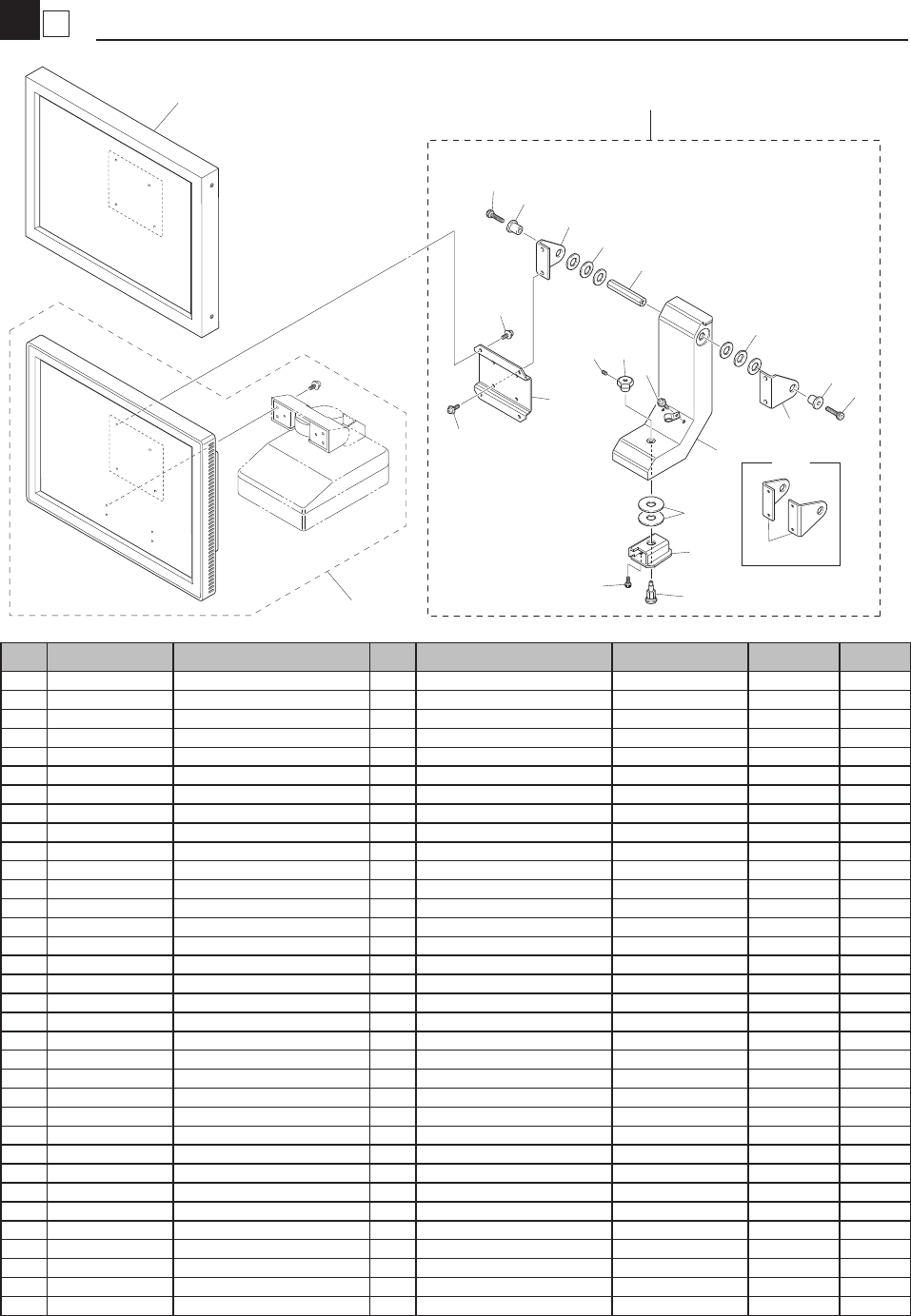

1 8 Operation Panel Sel. Operation Panel KGT -081 105 1 3 4 5 6 7 19 8 18 9 10 1 1 1 1 14 14 17 15 16 16 12 12 2 13 16 OLD No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KGT -M5106-00X 15N…
1
8
Operation Panel Sel.
Operation Panel
KGT-081105
1
3
4
5
6
7
19
8
18
9
10
11
11
14
14
17
15
16
16
12
12
2
13
16
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M5106-00X 15NORMAL LCD" 2
1-1 KGT-M5106-A0X 15NORMAL LCD ASSY" 2 (2005/7/20) MB70031 OK
1-2 KGT-M5106-01X 15NORMAL LCD" 2 (2006/6/21) MC60059 OK
2 KGA-M1380-20X STAY,LCD UNIT 2
2-1 KGA-M1380-21X STAY,LCD UNIT 2 (2005/7/20) MB70031 OK
3 KGA-M1381-20X BASE STAND 1
4 KGA-M1382-20X WASHER 1
4-1 KGA-M1382-21X WASHER 2 (2002/11/7) M200080 Set
4-2 90990-28J009 WASHER,PLAIN 2 (2007/12/7) MDX0084 OK
5 KGA-M138C-00X NUT 1
5-1 KGA-M138C-01X NUT 1 (2004/2/18) M420103 Set
6 KGA-M1384-21X SHAFT 1 M6x1.0
6-1 KGA-M1384-22X SHAFT 1 M8x1.25 (2004/2/18) M420103 Set
7 92A08-04308 SCREW, SET 1
8 KGA-M1383-20X BRACKET 2
8-1 Delete (2005/7/20) MB70031
9 KGA-M1385-21X BODY STAND 1
10 KGA-M1387-20X PLATE, LCD 1
11 KGA-M1388-20X BUSH 2
12 KGA-M1389-10X WASHER,BELLEVILLE 4
12-1 90990-37J001 WASHER,BELLEVILLE 4 (2008/4/15) ME20075 OK
13 90562-26J500 SPACER 1
14 91314-06025 BOLT HEX.SOCKET HEAD 2
14-1 91312-06025 BOLT HEX.SOCKET HEAD 2 (2006/1/26) MBY0159 OK
15 91314-05008 BOLT HEX.SOCKET HEAD 4
15-1 91312-05008 BOLT HEX.SOCKET HEAD 4 (2006/1/26) MBY0159 OK
16 97604-04308 SCREW,PAN HEAD W/W 9
16-1 97602-04308 SCREW,PAN HEAD W/W 9 (2006/2/14) MBY0144 OK
16-2 90990-11J003 SCREW,PAN HEAD W/W 9 (2006/3/13) MC30052 OK
17 KGT-M5119-00X 15 TOUCH LCD ASSY" 2
17-1 KGT-M5119-01X 15 TOUCH LCD ASSY" 2 (2004/12/22) MAY0039 OK
17-2 KGT-M5119-02X 15 TOUCH LCD ASSY" 2 (2006/4/12) MC30085 OK
18 KGA-M1383-30X BRACKET R 1 (2005/7/20) H8971
19 KGA-M1383-50X BRACKET L 1 (2005/7/20) H8971
