KGT_200_PL - 第10页
19 24 20 21 21 14 4 19 23 23 3 7 4 1 1 1,33 15 23 32 25 1 4 23 23 22 5 30 8 20 20 9 23 28 5 3 2 31 6 26 23 28 16 13 23 10 18 17 12 24 4 27 29 29 39 39 39 39 38 38 35 39 24 37 36 4 3 YT -axis Moving-axis KGT -081105 No. P…
7
1
2
2
6
15
5
11
13
11
13
12
14
3
4
19
19
19
19
1
16
17
8
9
10
8
9
10
20
23
21,22
19
19
19
19
19
19
17
17
18
15
18
12
14
16
19
19
17
3
3
Y-axis-2
Moving-axis
KGT-081105
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M2694-00X BRACKET A, GUIDE 2
2 KGT-M2695-00X BRACKET B, GUIDE 2
3 KGT-M26F1-00X FRAME 1 1
4 KGT-M26F2-00X FRAME 2 1
5 KGT-M26F3-00X FRAME 3 1
6 KGT-M26F4-L0X DUCT, HARNESS L 1
7 KGT-M26F4-R0X DUCT, HARNESS R 1
8 KGT-M260B-00X TAPE, Y DUCT 2
9 KGT-M260C-00X TAPE 2, Y DUCT 2
10 KGT-M260D-00X TAPE 3, Y DUCT 2
11 KGT-M2667-00X PLATE 2
12 KV7-M2266-00X PLATE, NUT 2
13 KV7-M2268-00X BRACKET 1, TAPE 2
14 KV7-M2269-00X BRACKET 2, TAPE 2
15 KGT-M2678-00X GUIDE, CABLE Y 2
15-1 KGT-M2678-A1X GUIDE,CABLE Y 2 (2004/7/12) MA70035 OK
16 KGT-M2698-00X PLATE 1, CLAMP 2
17 91314-04008 BOLT HEX.SOCKET HEAD 8
17-1 91312-04008 BOLT HEX.SOCKET HEAD 8 (2006/1/16) MBY0158 OK
18 91317-05010 BOLT HEX. SOCKET HEAD 6
19 91314-06010 BOLT HEX.SOCKET HEAD 32
19-1 91312-06010 BOLT HEX.SOCKET HEAD 32 (2006/1/26) MBY0159 OK
20 KGT-M36A1-00X DUMP BOX 4
21 KGT-M36A2-00X PLATE 1, DUMP BOX 2
22 KGT-M36A3-00X PLATE 2, DUMP BOX 2
23 91317-05010 BOLT HEX. SOCKET HEAD 8
19
24
20
21
21
14
4
19
23
23
3
7
4
1
11,33
15
23
32
25
1
4
23
23
22
5
30
8
20
20
9
23
28
5
3
2
31
6
26
23
28
16
13
23
10
18
17
12
24
4
27
29
29
39
39
39
39
38
38
35
39
24
37
36
4
3

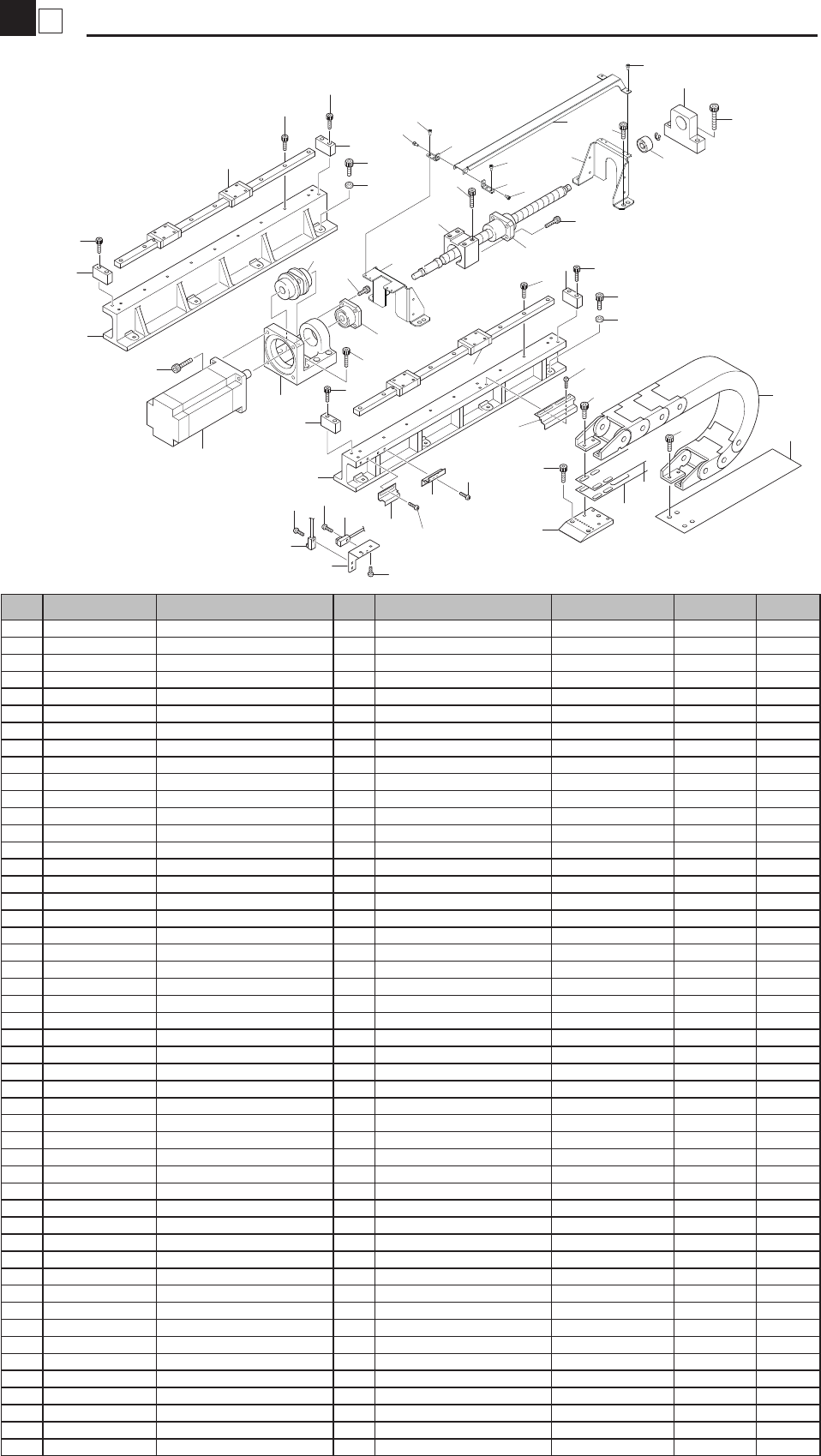

YT-axis
Moving-axis
KGT-081105
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M2801-S0X FRAME 1, YT AXIS 2
2 KV1-M2803-00X SCREW BALL,YT AXIS 1
2-1 KV1-M2803-01X BALL SCREW,YT AXIS 1 (2003/9/26) M390110 OK
3 KG2-M2604-00X SUPPORT UNIT 1
4
KV1-M2606-00X DAMPER
4
5 KV1-M280A-00X HOLDER SET YT AXIS 1
6 KGT-M2809-00X HOLDER NUT, YT AXIS 1
7 KM5-M2611-00X COUPLING, Y-AXIS :LCD 1
8 KV1-M2816-00X DOG, YT AXIS 1
9 KV1-M2816-11X
DOG, YT AXIS
1
10 KGT-M2816-00X DOG2, YT AXIS 1
11 KGT-M2818-L0X BRKT.L,SENSOR 1
L side
11-1 KGT-M2818-L1X BRKT.L,SENSOR 1
L side
(2003/11/17) M3X0042 OK
12 KV1-M2821-00X DUCT,CABLE 1
12-1 KV1-M2821-01X DUCT,CABLE 1 (2006/2/24) MC20108 OK
13 KGT-M2822-00X BRKT., DUCT 2
14 KGA-M260A-00X SENSOR ORG(L=300) 1
15 KGA-M260B-00X SENSOR OT(L=300) 1
16 KV1-M2824-00X TAPE, YT AXIS 1
17 KV1-M2825-00X TAPE 1, YT AXIS 1
18 KV1-M2826-00X TAPE 2, YT AXIS 1
19 KV1-M2877-S0X GUIDE SET, YT AXIS 1
20 98903-03006 SCREW BINDING HEAD 6
20-1 98502-03006 SCREW PAN HEAD 6 (2006/2/17) MBY0200 OK
21 98904-03008 SCREW BINDING HEAD 2
21-1 98902-03008 SCREW BINDING HEAD 2 (2006/1/9) MBY0166 OK
22 91317-04006 BOLT HEX. SOCKET HEAD 2
23 91317-04014 BOLT HEX. SOCKET HEAD 33
24 91317-06010 BOLT HEX.SOCKET HEAD 8
24-1 91317-06010 BOLT HEX.SOCKET HEAD 12 (2006/8/22) MC70097
25 91317-06020 BOLT HEX.SOCKET HEAD 4
25-1 91317-06018 BOLT HEX.SOCKET HEAD 4 (2005/12/8) MBY0049 OK
26 91317-06030 BOLT HEX. SOCKET HEAD 2
27 91317-06040 BOLT HEX. SOCKET HEAD 4
28 91317-08020 BOLT HEX. SOCKET HEAD 16
29 92903-08200 WASHER, PLAIN 16
30 90K63-611404 AC SERVO MOTOR 1
31 91317-06016 BOLT HEX. SOCKET HEAD 4
32 91317-05016 BOLT HEX. SOCKET HEAD 4
33 KGT-M2818-R0X BRKT.R,SENSOR 1
R side
33-1 KGT-M2818-R1X BRKT.R,SENSOR 1
R side
(2003/11/17) M3X0042 OK
34
35 KGT-M2872-00 COVER 1,YT 1 (2006/8/22) MC70097
35-1
KGT-M2872-01 COVER 1,YT 1 (2006/11/13) MCX0021 NG
36
KGT-M2871-00 FRAME 1,COVER YT 2 (2006/8/22) MC70097
36-1
KGT-M2871-00 FRAME 1,COVER YT 1 (2006/11/13) MCX0021 OK
37 KGT-M2873-00 FRAME 3,COVER YT 1 (2006/11/13) MCX0021
38 KHM-M2873-00 FRAME 2, COVER YT 2 (2006/8/22) MC70097
39
91317-03006 BOLT HEX.SOCKET HEAD
8
(2006/8/22) MC70097
1
4

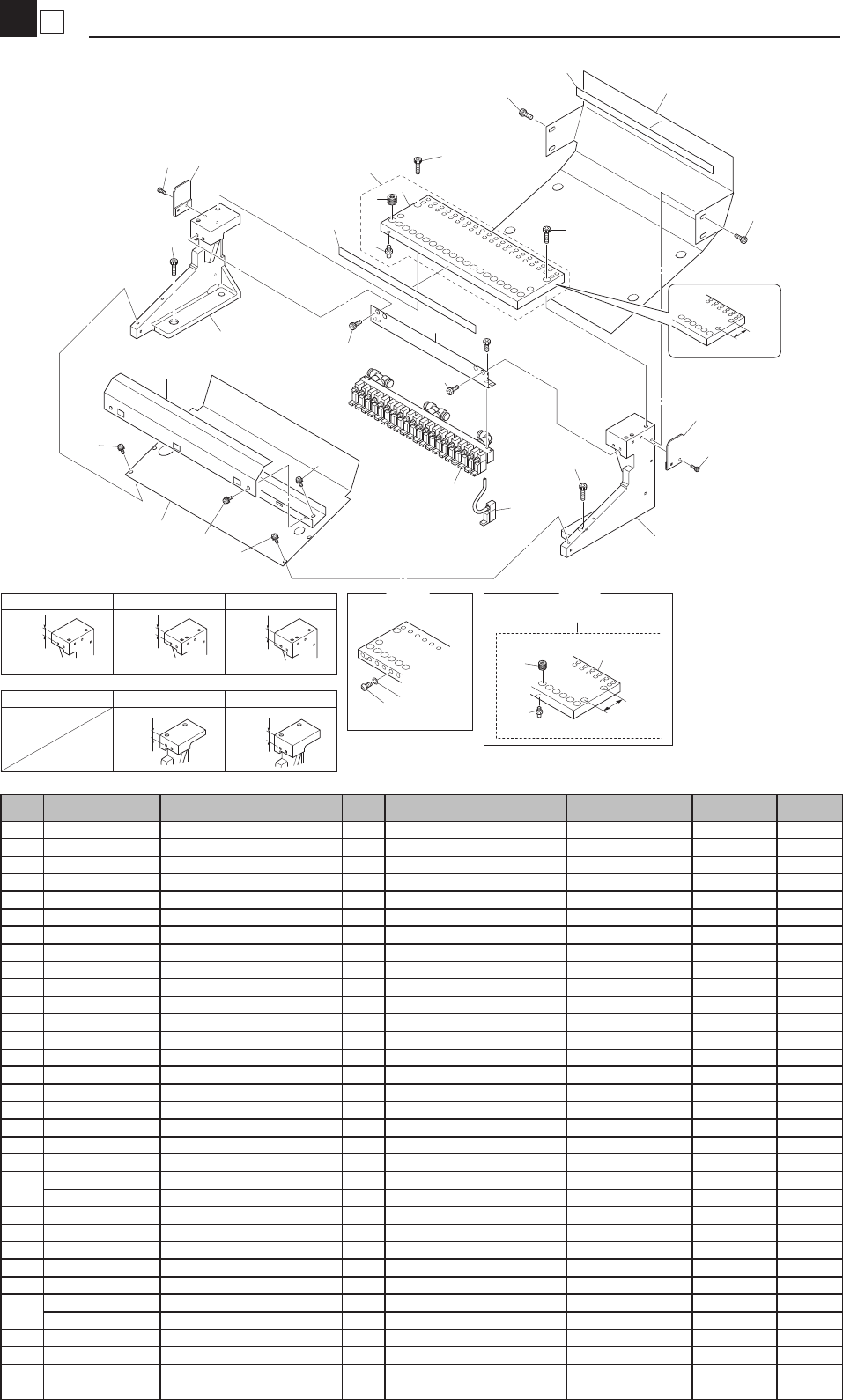

Feeder Holder 20
Feeder
KGT-1011
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
24mm
17
19
1
10
19
18
19
18
22
13
9
15
23
22
19
2
21
17
20
19
11
4
12
20
14
19
24
20
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21
20
3
8
OLD
2
4
24
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM9-M3401-H0X PLATE H,FEEDER 1
1-1 KM9-M3401-H1X PLATE H,FEEDER 1 (2005/2/14) MB20042 NG
2 $BF4BU JOINT 20
3 98907-03004 SCREW BINDING HEAD 20
3-1 Delete (2005/2/14) MB20042
4 KG2-M3407-A0X AIR JOINT 20
5
6
7
8 KM0-M3416-00X GASKET 20
8-1 Delete (2005/2/14) MB20042
9 KM9-M3402-H0X GUIDE H-1, TAPE 1
10 KM9-M3403-H0X GUIDE H-2, TAPE 1
11 KM0-M3405-01X STAND,1 1 Fig D
11-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) M440062 OK
11-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) MA00129 NG
12 KM0-M3406-01X STAND,2 1 Fig G
12-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) MA00129 NG
13 KM9-M3408-H0X BRACKET H VALVE 1
14 KM9-M3409-H0X COVER H VALVE 1
15
KGA-M3410-40X VALVE ASSY, 20-L 1 Type L
KGA-M3410-20X VALVE ASSY, 20-R 1 Type R
17 KM0-M3417-00X GUIDE 4 2
18 91317-06020 BOLT HEX. SOCKET HEAD 4
19 91317-04010 BOLT HEX.SOCKET HEAD 12
20 90990-12J005 SCREW BINDING HEAD 8
21 KU5-M3430-00X LABEL, FEEDER 1
21-1
KU5-M3430-01X LABEL,FEEDER 1 No.1~60 (2007/12/24) MDY0110 OK
KU5-M3430-20X LABEL,FEEDER 1 No.101~160 (2007/12/24) MDY0110 OK
22 91317-08020 BOLT HEX. SOCKET HEAD 4
23 KGA-M37P0-00X VALVE KIT 1
SPARE PARTS
24
KM9-M34A0-00X FEEDER PLATE ASSY. 1
24-1
KM9-M34A0-01X FEEDER PLATE ASSY.20 1 (2000/4/19) M440062 NG
