3 9 Side Clamp Pos.Assy Conveyor Unit KGT -081105 12 1 1 10 25 22 24 26 9 9 21 8 7 15 19 19 6 13 22 14 13 22 14 17 23 23 16 17 9 17 23 16 17 17 16 17 18 21 21 21 5 4 20 20 3 5 3 2 20 20 1 Fig C 27 10 1 Fig A 1 Fig B 2 8 …
2
9
PCB Stopper
Conveyor Unit
KGT-081105
3
10
4
7
5
8
Exit Stopper
Main Stopper Sub Stopper
9
11
12
13
14
15
16
17
18
19,20
21
22
25
28
26
27
27
23
24
31
29,30
39
37
32
38
36
38
33
33
35,41
34,40
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
2
3 KGT-M9181-00X STOPPER 1
4 KGT-M9182-00X CYLINDER 1
SMC
4-1 KGT-M9182-01X CYLINDER 1
KOGANEI
(2004/2/18) M410131 NG
5 KGT-M655E-00X SENSOR,CYLINDER 1
5-1 KGT-M655E-01X SENSOR,CYLINDER 1 (2003/7/23) M370103 OK
5-2
Delete
(2004/2/18) M410131 OK
6
7 $SL4-M5
JOINT 2
7-1 $TL4-M5M JOINT 2 (2004/2/18) M410131 OK
8 KGT-M9183-00X BASE, CYLINDER 1
8-1 KGT-M9183-01X BASE, CYLINDER 1 (2004/2/18) M410131 NG
8-2 KGT-M9183-02X BASE,CYLINDER 1 (2006/5/19) MC50030 OK
9 91317-03025 BOLT HEX.SOCKET HEAD 2
9-1 91312-03022 BOLT,HEX.SOCKET HEAD 2 (2007/6/29) MD60133 OK
10 91317-05050 BOLT HEX.SOCKET HEAD 2
10-1 91312-05045 BOLT HEX.SOCKET HEAD 2 (2008/1/25) ME10074 OK
11 KGT-M9281-00X PLATE, SUB STOPPER 1
12 KGT-M9282-00X STOPPER, SUB 1
13 KV7-M9283-00X CYL., YMDA16X35 1
14 KGT-M9284-00X BRKT., SENSOR 3 1
15 KV1-M9285-00X SPACER, CYLINDER 1
16 KGT-M9286-00X BRKT., CYILINDER 1
17 KV1-M9287-00X GUIDE, SUB STOPPER 1
18 KV1-M9288-00X PLATE, NUT 1
19 KGT-M928C-01X SENSOR, POS (N00652) 1
R > L
20 KGT-M928A-11X SENSOR, POS (N006C1) 1
L > R
21 $SL4-M5 JOINT 2
22 KGT-M912A-00X BRKT.,SENSOR 1
22-1 KGT-M912A-01X BRKT.,SENSOR 1 (2005/9/19) MB90034 OK
23 91317-03005 BOLT HEX. SOCKET HEAD 3
24 91317-03006 BOLT HEX. SOCKET HEAD 4
25 91317-03015 BOLT HEX. SOCKET HEAD 4
26 91317-04008 BOLT HEX. SOCKET HEAD 2
27 91317-04025 BOLT HEX. SOCKET HEAD 2
28 91317-06010 BOLT HEX. SOCKET HEAD 1
29 KGT-M9271-00X PLATE, EXIT STOPPER 1
R > L
30 KGT-M9271-10X PLATE, EXIT STOPPER 1
L > R
31 KV7-M9282-00X STOPPER, SUB 1
32 KV7-M9283-00X CYL., YMDA16X35 1
33 KG7-M912A-00X BRACKET, SENSOR 2
34 KGT-M928F-01X SENSOR, SLOW (N00666) 1
35 KGT-M928G-01X SENSOR, POS(N00667) 1
36 $SL4-M5 JOINT 2
37 91317-03006 BOLT HEX. SOCKET HEAD 4
38 91317-03015 BOLT HEX. SOCKET HEAD 4
39 91317-04008 BOLT HEX. SOCKET HEAD 2
40 KGT-M928B-01X SENSOR, SOW(N00651) 1
L > R
41 KGT-M928A-01X SENSOR, ENT(N00650) 1
R > L
3
9
Side Clamp Pos.Assy
Conveyor Unit
KGT-081105
12
11
10
25
22
24
26
9
9
21
8
7
15
19
19
6
13
22
14
13
22
14
17
23
23
16
17
9
17
23
16
17
17
16
17
18
21
21
21
5
4
20
20
3
5
3
2
20
20
1 Fig C
27
10
1 Fig A
1 Fig B
2
8
7
OLD
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M9221-00X PLATE 1 Fig A
1-1 KGT-M9221-01X PLATE 1 Fig B 2004/5/18 M410030 NG
1-2 KGT-M9221-02X PLATE 1 Fig C 2004/6/24 M420075 NG
2 KGT-M9222-00X PLATE 1,CLAMP 3
2-1
KGT-M9222-01X PLATE1,CLAMP
3
2004/6/24
M420075 NG
3 KGT-M9223-00X LINER BUSHING 6
4 KGT-M9224-00X STOPPER, BUSHING 6
5 KGT-M9225-00X SHAFT 1 6
6 KGT-M9226-00X SPRING PLUNGER 9
6-1
KGT-M9226-00X SPRING PLUNGER
6
(2004/2/12)
M420075 OK
7 KGT-M9227-00X BASE 1,CLAMP 6
7-1 KGT-M9227-01X BASE1,CLAMP 6 2004/6/24 M420075 NG
8 KGT-M9228-00X HEAD,CLAMP 6
8-1 KGT-M9228-01X HEAD,CLAMP 6 2004/6/24 M420075 NG
9 KGT-M9229-00X HOLDER, CYLINDER 3
10 KGT-M922A-00X KEY 1
10-1 KGT-M915L-01X KEY 1 2004/5/18 M410030 NG
11 KGT-M922B-00X GUIDE,PCB 3
11-1 KGT-M922B-01X GUIDE,PCB 3 (2005/3/7) MB30028 OK
12
KGT-M922C-00X LOW HEAD CAP SCREW 6
12-1 90990-01J017 BOLT,HEX.SOCKET HEAD 6 (2007/10/29) MD00030 OK
13 KGT-M922D-00X BASE , STOPPER 2
14 KGT-M922E-00X STOPPER 2
15 KGT-M922F-00X SHAFT 2 6
16 KGT-M922G-00X JOINT 5
16-1 $UTF4BU-M3 JOINT 5 (2007/9/14) MD80065 OK
17 KGD-M9244-00X CYLINDER 6
18 $UEF4BU-M3 JOINT 1
19 90440-01J030 CIRCLIP 12
20 91317-03006 BOLT HEX. SOCKET HEAD 34
21 91317-03010 BOLT HEX. SOCKET HEAD 14
22 91317-04010 BOLT HEX.SOCKET HEAD 6
22-1 91317-04010 BOLT HEX.SOCKET HEAD 9 (2004/2/12) M420075 OK
23 98980-03012 SCREW BINDING HEAD 12
23-1 98904-03012 SCREW BINDING HEAD 12 (2005/12/12) MBY0041 OK
23-2 98902-03012 SCREW BINDING HEAD 12 (2006/1/9) MBY0166 OK
24 KGT-M922H-00X REGULATOR 1
25 KGT-M922J-00X BRACKET,REGULATOR 1
25-1 KGT-M922J-01X BRACKET,REGULATOR 1 (2005/9/10) MB90045 OK
26 $TS4-M5 JOINT 1
26-1 $TSH4-M5 JOINT 1 (2006/4/24) MC40056 OK
27 KGT-M916W-00X PIN 9
27-1 KGT-M916W-01X PIN 9 (2005/6/20) MB60092 OK
27-2 90990-43J014 PIN 9 (2008/6/3) ME30136 OK
4
9

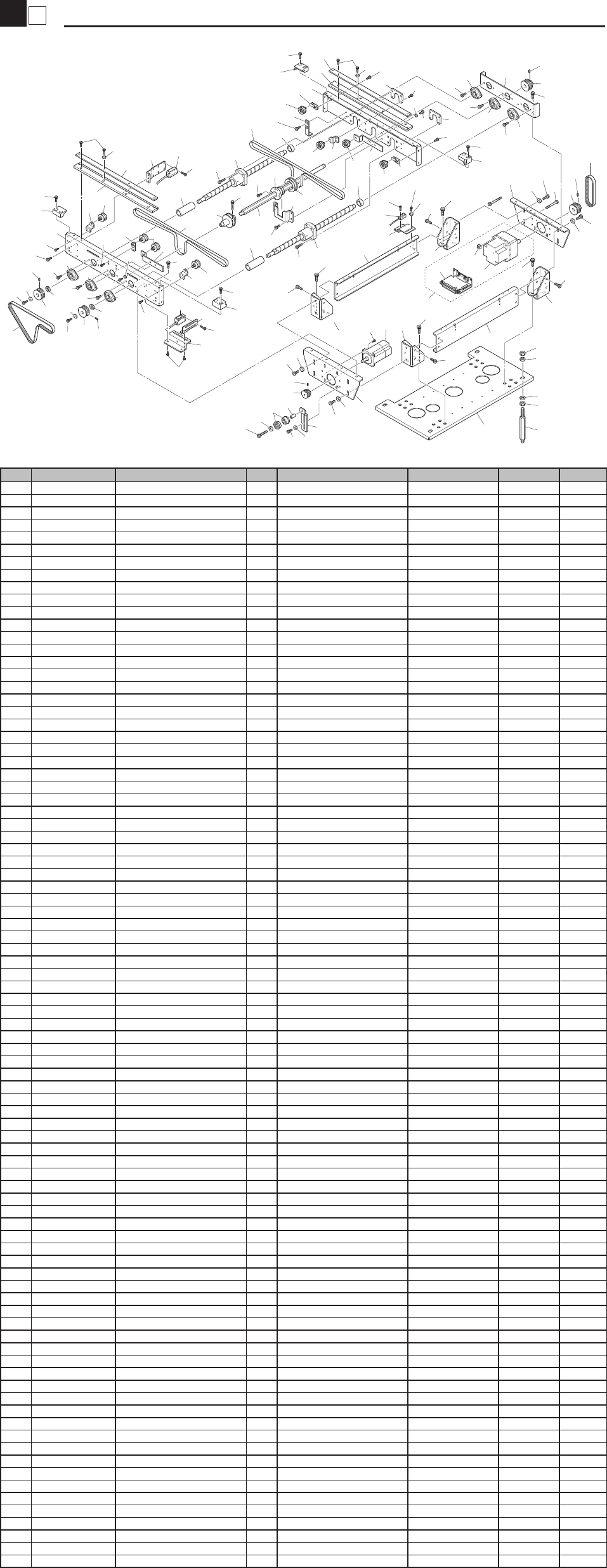

Fixed Conveyor Ent./Exit
Conveyor Unit
KGT-090604
1
1
2
26
68
72
68
72
25
19
64
61
61
61
69
53
61
64
64
24
18
14
53
42
56
56
47,48
41
66
61
71
7
50
57
70
62
71
36
3
61
71
61
71
61
71
54
22
23
58
37
39
34
34
58
58
4
31
9
43
43
31
57
57
57
57
57
57
44
44
53
57
53
53
57
53
53
69
70
44
66
63
63
66
21
16
58
53
70
54
69
54
17
37
39
39
39
39
39
20
37
40
15
45,46
19
24
18
5
13
37
37
37
11
33
60
59
59
32
55
30
38
37
40
57
57
57
16
17
51
51
66
66
61
52
61
29
8
43
2
12
49
65
1
35
64
74
3
27
1
6
44
44
10
10
44
73
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M9101-00X STAND 1 8
2 KGT-M9103-00X FRAME 1 4
3 KGT-M9104-00X FRAME 2 4
4 KGT-M9106-00X PLATE 1, CONV. 2
5 KGT-M9107-00X PLATE 2, CONV. 2
6 KGT-M9108-00X PLATE 3, CONV. 2
7 KGT-M9109-00X PLATE, TENSION IDLER 2
8 KGT-M910A-00X BELT (231-3GT-9) 2
9 KGT-M910B-00X BELT (471-3GT-9) 2
10 KV1-M9110-00X COLLAR,BALL SCREW 4
10-1 90990-41J106 COLLAR 4 (2008/4/11) ME30019 OK
11 KGT-M9111-00X BRKT., COLLAR 2
12 KGT-M9112-00X BRKT., SENSOR ORG 2
13 KV1-M9113-00X DOG, ORG CONV. 2
14 KGT-M9114-00X BRKT. 1, SENSOR 1
15 KGT-M9115-02X BRKT. 2,SENSOR 2
15-1 KGT-M9115-03X BRKT. 2,SENSOR 2 (2005/9/19) MB90034 OK
16 KGT-M9116-00X GUIDE 1 4
17 KGT-M9117-00X GUIDE 1-1 4
18 KV1-M9118-01X DAMPER 1, W 4
19 KV1-M9119-00X DAMPER 2, W 4
20 KM7-M9113-01X GUIDE 1, END 2
21 KM7-M9114-01X GUIDE 2, END 2
22 KGA-M9113-00X GUIDE 1, END 2
23 KGA-M9114-00X GUIDE 2, END 2
24 KV1-M9126-00X BALL SCREW F-CONV. 4
24-1 KW8-M9A00-20X BALL SCREW 4 (2008/11/3) ME50036 OK
25 KGT-M9127-00X PLATE, BASE 2
26 KGT-M9128-00X HEX. POST 8
27 KGK-M9171-00X MOTOR 2
28 KGK-M9170-00X DC MOTOR ASSY 2
29 KGK-M9173-00X DRIVER 2
30 KGT-M9135-00X PULLEY 1, SPLINE 2
31 KV1-M9137-00X WASHER,M4 13D 2T 4
31-1 90990-28J070 WASHER,PLAIN 4 (2007/12/18) MDX0125 OK
32 KGT-M913B-00X SPLINE 2
33 KGT-M913C-00X PULLEY, MOTOR 2
34 KGT-M913J-00X BELT 1, CONVEYOR 4
35 90K63-001606 AC SERVO MOTOR 2
36 90933-03J608 BEARING 4
37 KV1-M9140-A0X PULLEY CONV.ASSY. 16
37-1 KV1-M9140-A0X PULLEY CONV.ASSY. 8 (2007/2/12) MD20003 OK
38 KG2-M9108-11X COLLAR, CONVEYOR 2
39 KG2-M9120-01X PLATE PULLEY CON 12
40 KG2-M9121-00X PLATE TENSION PULLEY 4
41 KG7-M9113-01X PULLEY 3 2
42 KG7-M912A-00X BRACKET, SENSOR 1
43 KH2-M9105-11X PULLEY, MOTOR: P30-3GT 6
44 KH2-M9121-00X BEARING 12
45 KGT-M928D-01X SENSOR, EDGE (N00653) 1 RIGHT Type
46 KGT-M928E-01X SENSOR, EDGE (N00665) 1 LEFT Type
47 KGT-M928A-01X SENSOR, ENT (N00650) 1 R>L
48 KGT-M928G-01X SENSOR, ENT (N00667) 1 L>R
49 KGA-M260A-00X SENSOR, ORG (L=300) 2
50 KV7-M9149-00X COLLER,BRG 2
50-1 90990-41J057 COLLAR 2 (2008/4/17) ME20197 OK
51 KV1-M910C-00X NUT, PLATE 4
52 KGT-M912D-00X PULLEY 2
53 91317-03006 BOLT HEX.SOCKET HEAD 31
53-1 91317-03006 BOLT HEX.SOCKET HEAD 7 (2005/8/16) MB80030 OK
54 91317-03008 BOLT HEX. SOCKET HEAD 40
55 91317-03010 BOLT HEX. SOCKET HEAD 8
56 91317-03014 BOLT HEX. SOCKET HEAD 6
57 91317-05008 BOLT HEX.SOCKET HEAD 52
57-1 91317-05008 BOLT HEX.SOCKET HEAD 48 (2005/8/16) MB80030 OK
58 91317-04008 BOLT HEX. SOCKET HEAD 16
59 91317-04014 BOLT HEX. SOCKET HEAD 16
60 91317-04020 BOLT HEX. SOCKET HEAD 2
61 91317-05008 BOLT HEX. SOCKET HEAD 48
62 91317-05020 BOLT HEX. SOCKET HEAD 2
63 91317-04010 BOLT HEX. SOCKET HEAD 4
64 91317-06010 BOLT HEX. SOCKET HEAD 32
65 98907-03008 SCREW BINDING HEAD 2
66 92A08-04306 SET SCREW M4X6 20
67 95307-04600 NUT HEXAGON 18
67-1 Delete (2005/8/16) MB80030
68 95307-08600 NUT HEXAGON 16
69 92907-03200 WASHER PLAIN 20
69-1 92907-03200 WASHER PLAIN 27 (2005/8/16) MB80030 OK
70 92907-04200 WASHER PLAIN 12
70-1 92907-04200 WASHER PLAIN 16 (2005/8/16) MB80030 OK
71 92907-05200 WASHER PLAIN 2
71-1 92907-05200 WASHER PLAIN 20 (2005/8/16) MB80030 OK
72 92907-08200 WASHER PLAIN 16
72-1 92907-08200 WASHER PLAIN 8 (2005/8/16) MD10062 OK
73 KGT-M9193-00X NUT PLATE 8
74 91317-04050 BOLT HEX. SOCKET HEAD 8
