KGT_200_PL - 第5页

2 2 T op Cover-2 Cover KGT -1003 20 21 1 9 9 2 3 4 5 6 7 7 12 12 10 1 1 13 15 27 16 15 16 15 18 22 18 17 23 17 14 29 28 8 19 25 1 1 1 6 18 26 24 OLD 30 21 9 9 9 2 4 5 3 6 7 7 12 12 12 12 10 10 1 1 1 1 15 16 16 18 17 17 1…

100%1 / 32
1
2

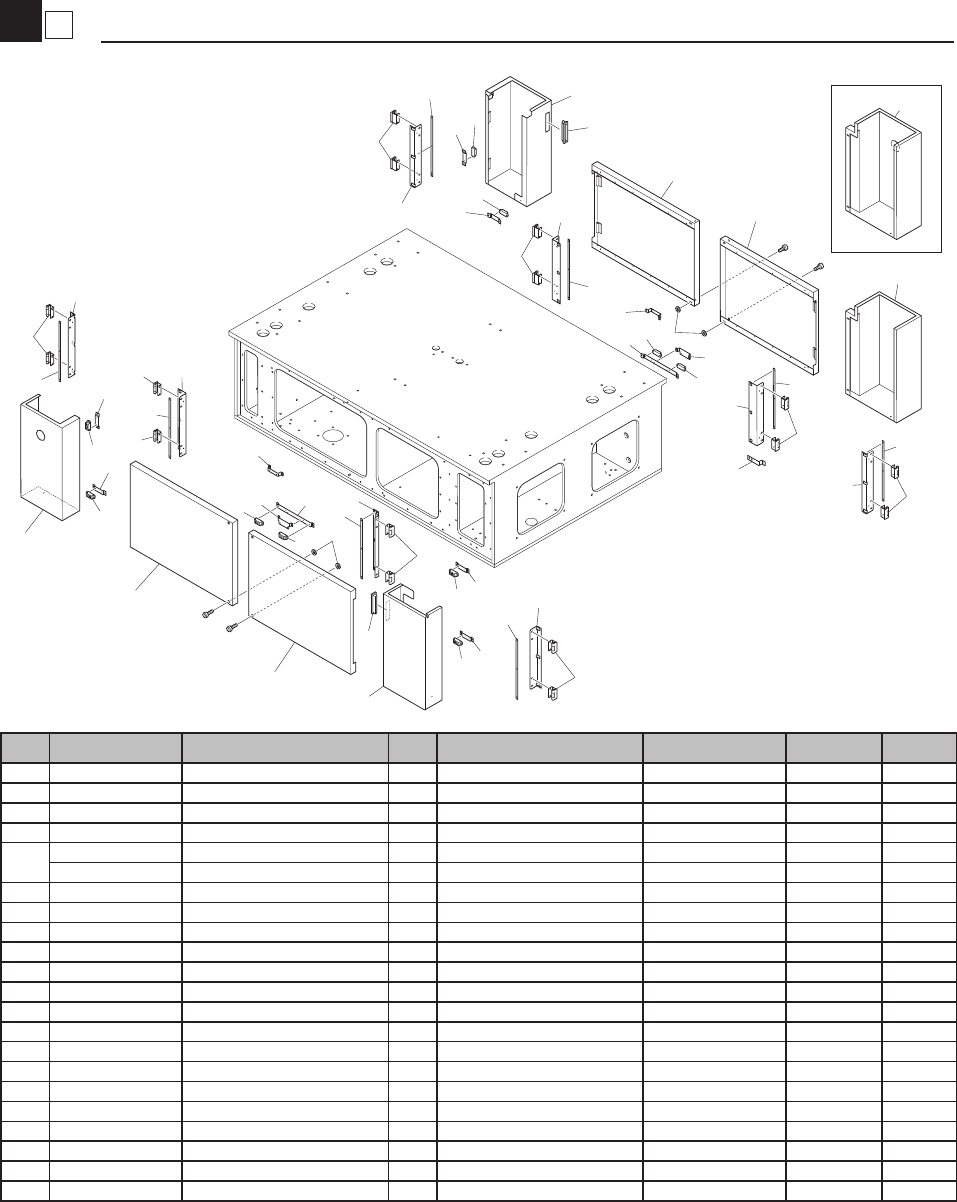

Top Cover-1
Cover
KGT-1003
1
2
4
3
5
5
6
7
8
11
20
11
11
13
11
12
15
15
15
15
15
15
16
16
17
17
18
19
21
21
22
22
23
23
24
24
28
28
28
28
10
10
27
29
29
9
30
9
9
14
9
34
33
35
39
36
26
25
26
25
30
31
41
40
42
43
38
37
32
20
40
26
25
26
25
44
OLD
1
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M1301-A0X COVER 1 ASSY 1
1-1 KGT-M1301-A1X COVER 1 ASSY 1 2006/7/18 MC20128 NG
2 KGT-M1302-A0X COVER 2 ASSY 1
3 KGT-M1303-A0X COVER 3 ASSY 1
4 KGT-M1304-A0X COVER 4 ASSY 1
5 KGT-M1305-00X COVER 5 2
6
KGT-M1306-A0X COVER 6 ASSY
1
7
KGT-M1307-A0X COVER 7 ASSY 1
8 KGT-M1308-A0X COVER 8 ASSY 1
9 KV7-M1317-01X COVER 17 4
10 KGA-M1318-00X COVER 18 2
11 KM0-M1335-00X BRACKET 1 GATE COVER 4
12 KGT-M1336-00X BKT CORNER L, BACK 1
13 KV7-M1337-00X BKT CORNER L, FRONT 1
14 KV7-M1339-00X BKT CORNER R, BACK 1
15 K46-M1374-10X HINGE 2 6
15-1 K46-M1374-11X HINGE 2 6 (2009/7/13) MF70096 OK
15-2 K46-M1374-12X HINGE 2 6 (2013/2/13) MK20039 OK
16 KGT-M1356-00X PLATE 1, JOINT 2
17 KGT-M1357-00X PLATE 2, JOINT 2
18 KL3-M1381-02X PLATE 1 KEY BOARD 2
19 KGT-M1382-00X PLATE 2 KEY BOARD 2
20 98904-04006 SCREW BINDING HEAD 200
20-1 90990-12J006 SCREW BIND HEAD W/W 200 (2003/10/2) M300009 OK
21 KGT-M130B-A0X COVER,SIDE 1 ASSY 2
21-1 KGT-M130B-00X COVER,SIDE 1 2 (2008/9/1) ME80139 OK
22 KGT-M130C-A0X COVER,SIDE 2 ASSY 2
22-1 KGT-M130C-00X COVER,SIDE 2 2 (2008/9/1) ME80139 OK
23 KGT-M1329-L0X COVER 29, L 2
24 KGT-M1329-R0X COVER 29, R 2
25 KW8-M1386-00X BRACKET, MAGNET 4
26 KJ9-M1354-10X MG. CATCH: TL272-2 4
27 KV7-M1350-00X CAP, PATLIGHT 1
28 KV7-M1391-10X PLUG 4
28-1 Delete (2004/6/25) MA60111
29 KW7-M13D8-00X WARNING,SEAL 1
29-1 90K41-000360 LABEL,ALERT 2 (2004/7/16) MA70069 OK
30 KM0-M531G-00X PANEL PLUG 2
31 KGA-M13B9-00X HOOK 1
32 KV7-M8880-20X BRUSH, FEEDER 1
33 KGS-M130B-00X BASE, PLATE USB 1
34 KGS-M130C-00X STAY, BASE 1
35 KGS-M130E-00X DOOR USB 1
36 KW3-M1349-00X MINI LATCH 1
37 KGJ-M1351-01X PLATE, MINI LATCH 1
38 KHM-M1397-00X BRACKET, FDD 3 1
39 90K41-000540 LABEL, ALERT 1
40 90990-12J001 SCREW BINDING HEAD 6
41 90990-12J006 SCREW BINDING HEAD 2
42 91312-03006 BOLT HEX. SOCKET HEAD 4
43 KGK-M6680-20X HNS, USB-MEMORY 2M AS 1
44 KGK-M536A-22X HNS, PE 150 1 GROUND WIRE
2
2

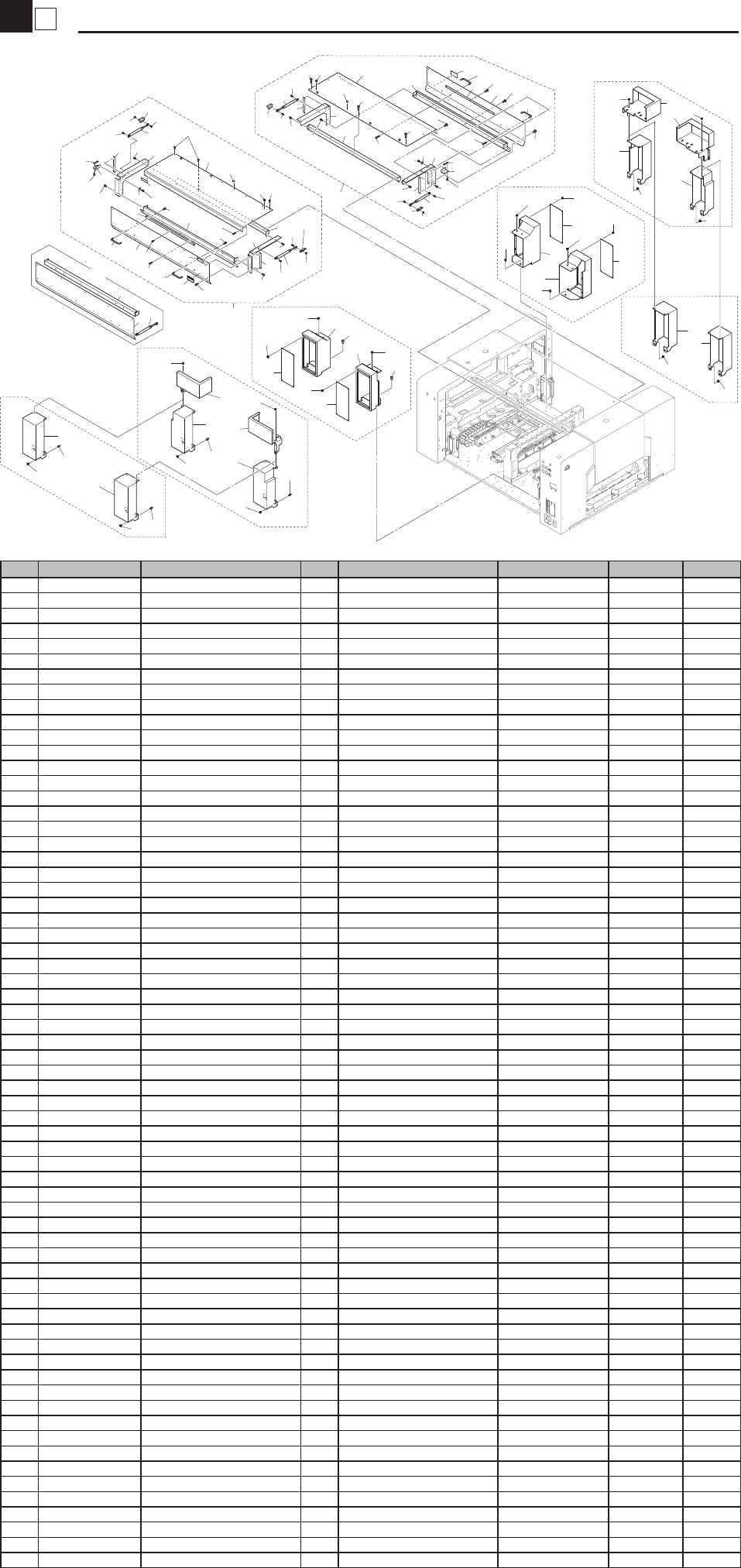

Top Cover-2
Cover
KGT-1003
20
21
1
9
9
2
3
4
5
6
7
7
12
12
10
11
13
15
27
16
15
16
15
18
22
18
17
23
17
14
29
28
8
19
25
1
11
6
18
26
24
OLD
30
21
9
9
9
2
4
5
3
6
7
7
12
12
12
12
10
10
11
11
15
16
16
18
17
17
13
15
15
14
8
25
26
18
24
19
18
22
18
29
27
28
30
12
12
10
11
28
FES20
FES
FIXD
45
45
33
33
46
46
32
31
44
44
44
44
47
47
47
47
44
44
44
44
43
40
36
41
37
45
45
FIXD
FES20
FES
35
34
45
33
33
46
46
44
44
44
44
44
44
44
44
39
38
40
41
42
43
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M1309-00X COVER 9-1 1
1-1 KGT-M1309-01X COVER 9-1 1 (2006/12/28) MCY0006 NG
2 KGT-M130A-00X COVER 9-2 2
3 KV7-M1340-01X BRACKET 1, COVER 9 2
3-1 KV7-M1340-02X BRACKET 1,COVER 9 2 (2008/10/17) ME60115 NG
4 KV7-M1341-02X BRACKET 2, COVER 9 2
4-1 KV7-M1341-03X BRACKET 2,COVER 9 2 (2008/10/17) ME60115 NG
5 KGT-M1342-00X BRACKET 3, COVER 9 2
5-1 KGT-M1342-01X BRACKET 3,COVER 9 2 (2008/10/17) ME60115 NG
6 KGT-M1343-00X BRACKET 4,COVER 9 1
6-1 KGT-M1343-01X BRACKET 4,COVER 9 1 (2006/12/28) MCY0006 NG
7 KV7-M1349-00X PLATE 2, NUT 4
8 K93-M1392-00X SPACER (TM-180-303) 8
9 KH2-M1324-00X GRIP 4
9-1 KH2-M1324-01X GRIP 4 (2008/10/15) (ME00034) OK
10 KM0-M1331-01X BRACKET GAS DAMPER 4
11 KL3-M1348-10X GAS SPRING 4
11-1 KGS-M1348-00X GAS SPRING 4 Repulsion 50% Up (2006/12/28) MCY0006 NG
12 KM0-M1346-00X SHOULDER,BOLT 4
12-1 90990-31J006 BOLT,SHOULDER 4 (2008/6/3) ME30136 OK
13 KL0-M1373-01X BRACKET 1 SCHMEASAL 2
14 KL0-M1374-00X PLATE 1 SCHMESAL 2
15 91317-04008 BOLT HEX.SOCKET HEAD 12
15-1 91317-04008 BOLT HEX.SOCKET HEAD 8 (2007/2/16) MD20040
16 91317-04010 BOLT HEX. SOCKET HEAD 8
16-1 91317-06010 BOLT HEX.SOCKET HEAD 8 (2008/10/17) ME60115 NG
17 91317-05014 BOLT HEX. SOCKET HEAD 8
18 K16-90101-08X BOLT:TP-M4X8 14
18-1 90990-46J002 BOLT,THIN HEAD 14 (2008/6/3) ME30136 OK
19 K16-90101-12X BOLT:TP-M4X12 18
19-1 90990-46J004 BOLT,THIN HEAD 18 (2008/6/3) ME30136 OK
20 KW7-M13D7-00X SEAL 2(YAMAHA) 1
20-1 KW7-M13D7-01X SEAL 2(YAMAHA) 1 (2004/6/30) MA60120 OK
21 90K41-000230 WARNING SEAL(2) 2
21-1 90K41-000350 LABEL,ALERT 2 (2004/7/16) MA70069 OK
22 KV8-M3759-00X BLIND BUSH 2
23 KGT-M13D6-00X SEAL 1 (YG200) 1
24 KGT-M1349-00X NUT PLATE 1 (2006/12/28) MCY0006
25 K16-90101-06X BOLT:TP-M4X6 6 (2006/12/28) MCY0006
25-1 90990-46J001 BOLT,THIN HEAD 6 (2008/6/3) ME30136 OK
26 K16-90101-10X BOLT:TP-M4X10 5 (2006/12/28) MCY0006
26-1 90990-46J003 BOLT,THIN HEAD 5 (2008/6/3) ME30136 OK
27 92907-04200 WASHER PLAIN 2
27-1 92903-04200 WASHER PLAIN 2 (2007/2/16) MD20040 OK
28 95307-06600 NUT HEXAGON 2 (2006/12/28) MCY0006
29 KGS-M1360-00X BOLT 4 (2007/2/16) MD20040
30 KGT-M1309-A0X COVER 9 ASSY 2
30-1 KGT-M1309-A1X COVER 9 ASSY 2 (2006/12/28) MCY0006 OK
31 KHM-M13A1-00 COVER 1,FEEDER SIDE 1
32 KHM-M13A2-00 COVER 2,FEEDER SIDE 1
33 KHM-M13A3-00 COVER FEEDER 4
34 KGT-M13A3-20 COVER 3,FEEDER SIDE 1
35 KGT-M13A4-20 COVER 4,FEEDER SIDE 1
36 KHM-M13A1-12 COVER 1,FEEDER SIDE 2
37 KHM-M13A2-12 COVER 2,FEEDER SIDE 2
38 KGT-M13A3-30 COVER 3,FEEDER SIDE 2
39 KGT-M13A4-30 COVER 4,FEEDER SIDE 2
40 KHM-M13A3-10 COVER A,FEEDER(FES) 2
41 KHM-M13A4-10 COVER B,FEEDER(FES) 2
42 KHM-M13A3-20 COVER C,FEEDER(FES) 2
43 KHM-M13A4-20 COVER D,FEEDER(FES) 2
44 90990-12J001 SCREW BIN. HEAD W/W 64
45 91317-08012 BOLT HEX. SOCKET HEAD 4
46 90990-12J005 SCREW BINDING HEAD 16
47 90563-04J120 SPACER 8
3
2

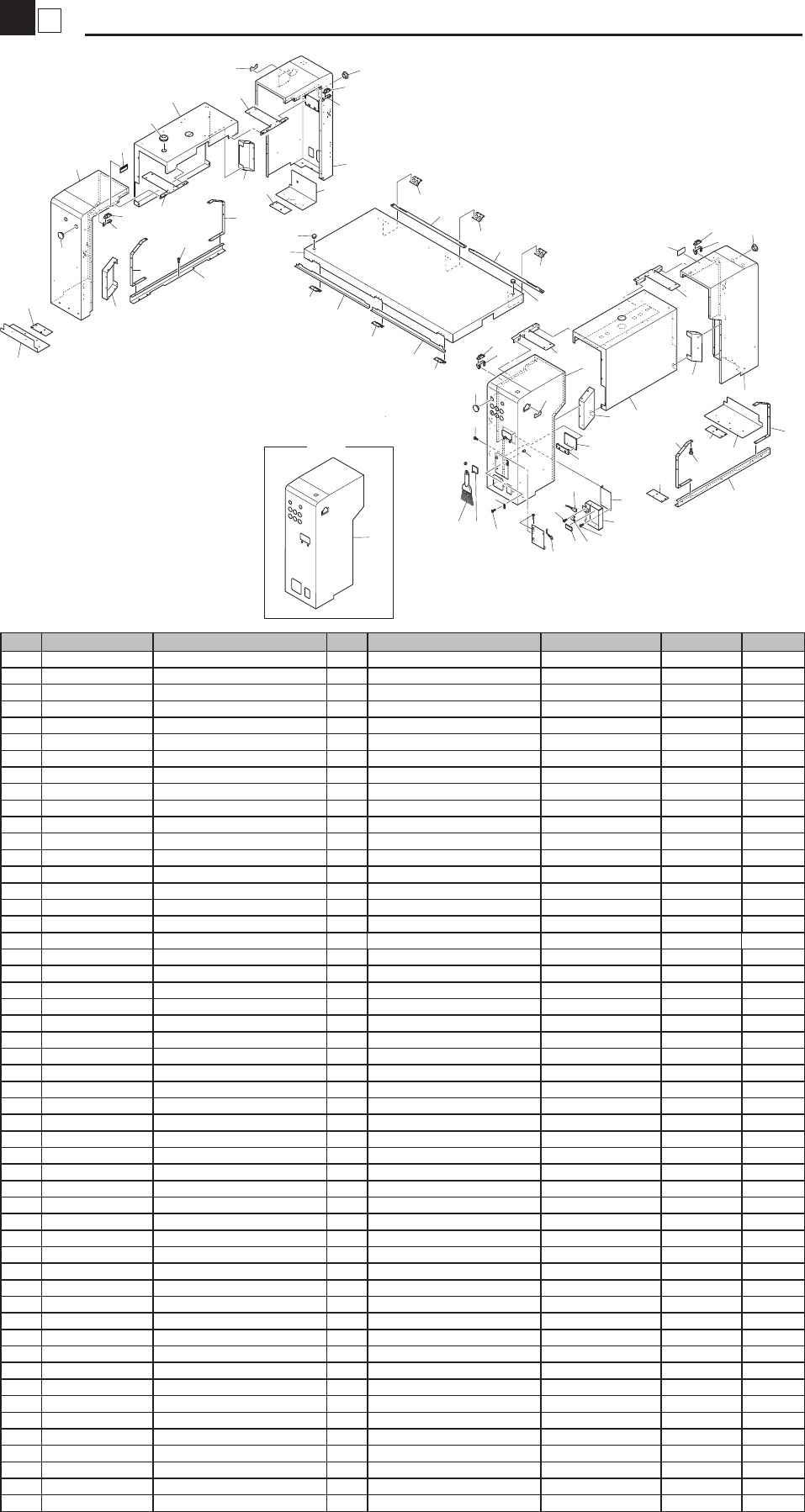

Base Cover
Cover
KGT-081105
1
3
2
6
3
5
4
7
7
7
7
7
7
7
7
7
8
10
10
10
10
11
11
11
14
12
17
17
15
15
16
9
8
8
16
18
9
8
8
18
18
18
18
18
18
18
13
8
13
8
8
13
13
8
13
8
13
19
19
4
3
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M1310-02X COVER 10 1
1-1 KGA-M1310-00X COVER 10 1 (2005/6/2) MB60004 OK
2 KGT-M1311-00X COVER 11 1
3 KGT-M1312-00X COVER 12 3
4
KV7-M1313-00X COVER 13 1
KV7-M1313-10X COVER 13 1
5 KGT-M1314-00X COVER 14 1
6 KGT-M1315-00X COVER 15 1
7 KG2-M1370-00X HINGE ASSY 16
8 K44-M1354-00X MG. CATCH (TL-152-2) 10
9 KH1-M1396-00X WASHER 10
10 KV7-M1326-00X BRACKET 1-1 4
11 KV7-M1328-00X BRACKET 2 3
12 KGA-M1328-00X BRACKET 2 1
13 KV7-M1370-00X BRACKET MAGNET 6
14 KV7-M1371-00X BRACKET,FIX 2
14-1 KGS-M1371-00X BRACKET,FIX 2 (2006/2/20) MC20122 OK
15 KW8-M1323-00X BRACKET MAGNET 2
16 KW8-M1328-00X BRACKET 9 2
17 KW8-M1330-00X BRACKET 9 2
18 KV7-M1347-00X PLATE BRACKET 8
19 KV7-M1372-00X HANDLE 1 2
