Page SAMSUNG TECHWIN 103 DECAN L2 Backup Table NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 2 J7053105 2C LOWER_PLA TE 1 3 J7053105 1C BACK_UP_PLA TE 1 5 EP19-900108 PHOTO SE NSOR 1 6 FC18-90199…
Page
SAMSUNG TECHWIN
102
DECAN
L2

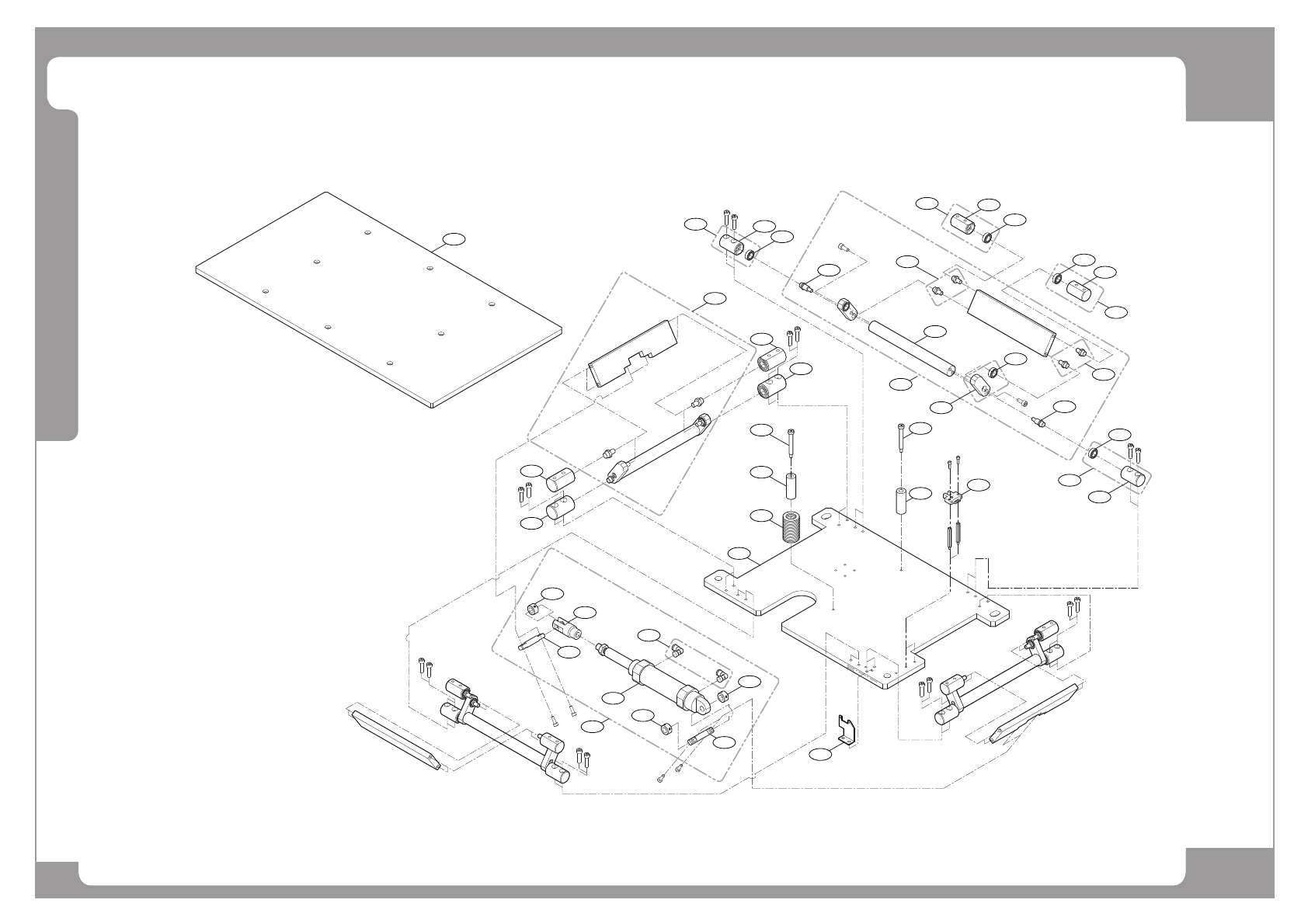

Backup Table
8
7
17
10
24
22
2
22
26
23
24
22
24
22
24
3
5
6
8
6
9
11
11
12
13
15
14
16
18
18
19
19
19
20
21
12
23
15
25
15
15
25
15
Page
SAMSUNG TECHWIN
103
DECAN
L2
Backup Table
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
2 J70531052C LOWER_PLATE 1
3 J70531051C BACK_UP_PLATE 1
5 EP19-900108 PHOTO SENSOR 1
6 FC18-901994 SHOULDER SCREW[MSB6-40] 2
7 FC38-900013 SPRING[SWU26-70] 1
8 FC29-900536 URETHAN CUSHION[AXNSK15-40] 1
9 HP06-900056 ELBOW FITTING [KQ2L04-01] 2
10 J90531003A DRIVING_LINK_ASSY 2
11 J7053792A UPPER LINK PIN[J7053792A] 4
12 J7053793A LOWER LINK PIN[J7053793A] 2
13 J7053796A LOWER LINK SHAFT[J7053796A] 1
14 J90531008A LINK_END_ASSY 8
15 MC03-900022 BALL BEARING 1
16 J90531004A FREE_LINK_ASSY 2
17 J90531005A BUT_CYLINDER_ASSY 1
18 J70530794B CYLINDER JOINT PIN 2
19 J7053795A RING FIXER[J7053795A] 3
20 FC14-900506 CYLINDER JOINT[Y-032B] 1
21 HP03-900013 CYLINDER CM2C32-50-XC3BB 1
22 J90531006A LOWER_BEARING_ASSY 8
23 J7053790A LOWER BEARING HOLDER[J7053790A] 1
24 J90531007A UPPER_BEARING_ASSY 8
25 J7053791A UPPER BEARING HOLDER[J7053791A] 1
J7500003B BACKUPPIN
J9053333A BACKUPPIN
26 J7053802A UP SENSOR BRACKET[J7053802A] 1
Page
SAMSUNG TECHWIN
104
DECAN
L2

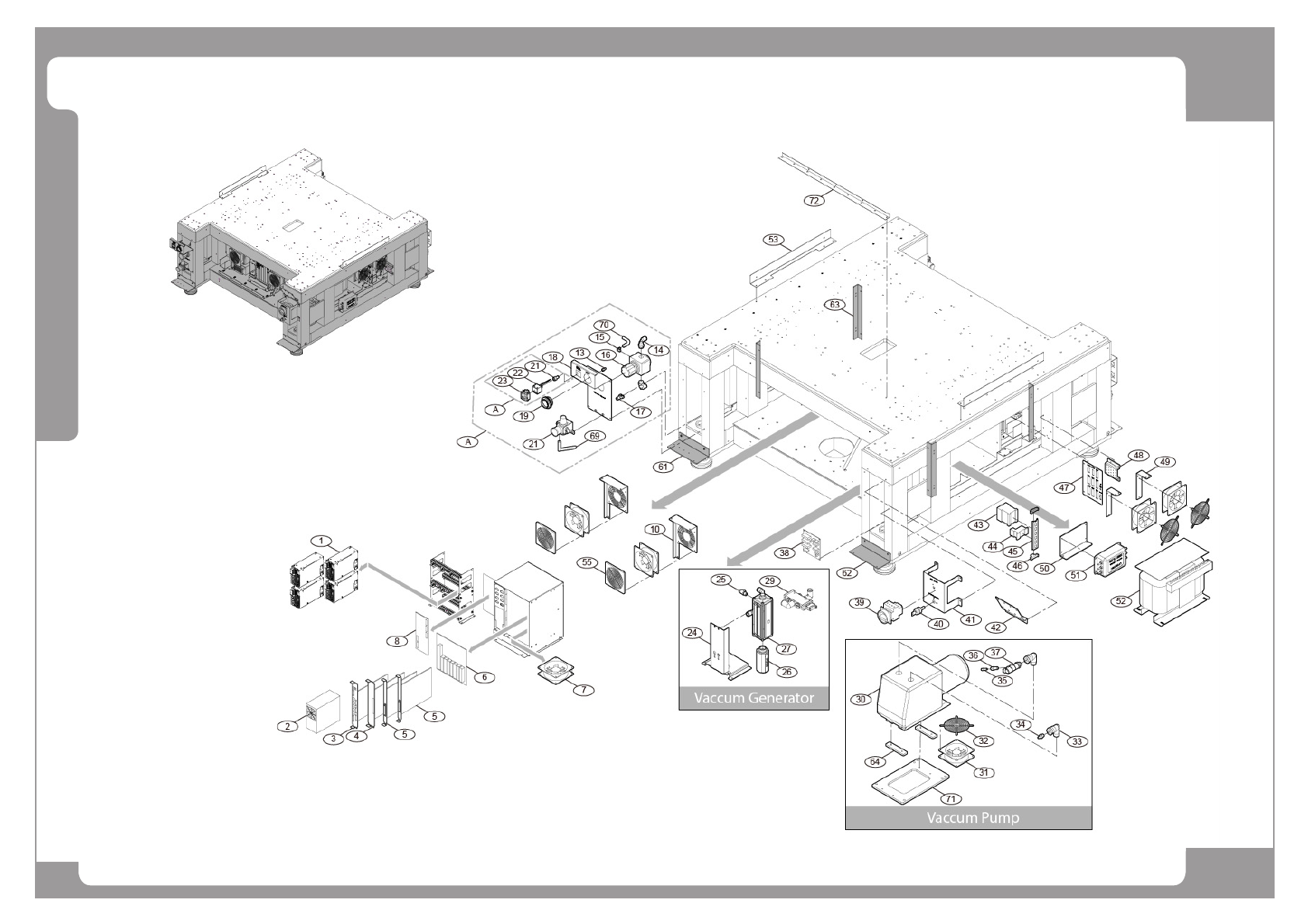

Base Frame (Front)
