Page SAMSUNG TECHWIN 108 DECAN L2 Base Frame (Rear)
Page
SAMSUNG TECHWIN
107
DECAN
L2
Page
SAMSUNG TECHWIN
108
DECAN
L2

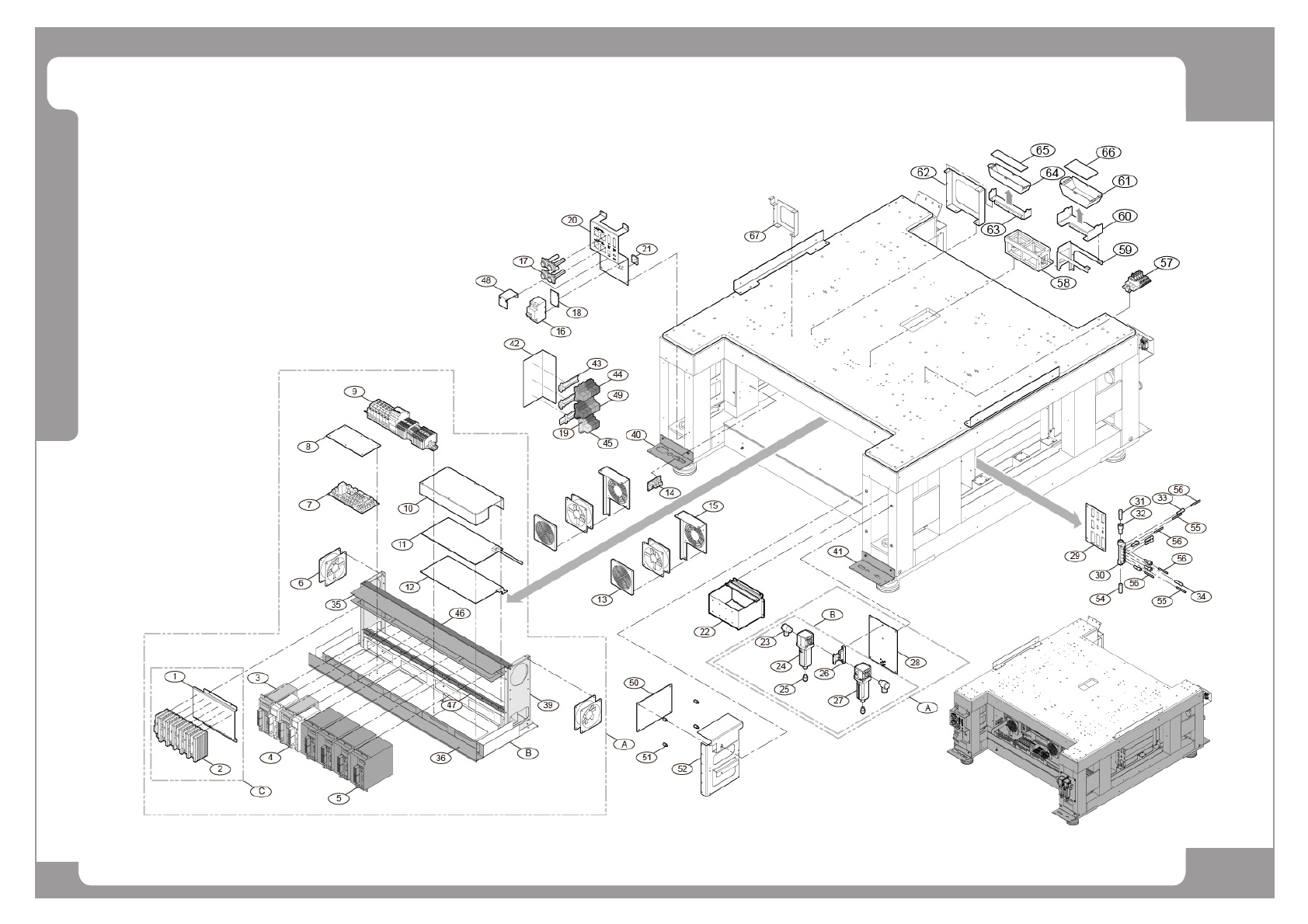

Base Frame (Rear)
Page
SAMSUNG TECHWIN
109
DECAN
L2
Base Frame (Rear)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-011569A ASSY,ELECTRIC-REAR ELEC PANEL 1
A AM03-011179A ASSY,ELECTRIC-R ELEC PANEL BKT 1
A AM03-011015A ASSY,CONTROLLER-CONVEYORSTEPDRVV1_0 1
1 FC09-000879A STEP_DRIVER_BRACKET 1
2 EP06-000390A CONTROL-DRIVER-STEBRO-SPB-WW-V1.0 2
EP06-000391A CONTROL-DRIVER-STEBRO-SPB-ST-V1.0 4
3 EP06-000389 SERVO CONTROL-DRIVE-MCDKT3520E 2 EP06-900170
FC09-000381A BRACKET-S/W DRIVER UPPER BKT 2
FC09-000382A BRACKET-S/W DRIVER BOTTOM BKT 2
4 EP06-000492 SERVO MOTOR DRIVER A5E MADHT1505E 2 EP06-900172/ EP06-000445
FC09-000385A X-MOTOR DRIVER UPPER BKT 2
FC09-000386A X-MOTOR DRIVER BOTTOM BKT 2
5 EP06-000316 SERVO CONTROL DRIVER MDDHT5540LA2 4
FC09-000387A Y-MOTOR DRIVER UPPER BKT 4
FC09-000388A BRACKET-Y-MOTOR DRIVER BOTTOM BKT 4
6 EP07-901508 COOLING FAN 4
7 AM03-001814A ASSY,BOARD-SAFETY_FROP_REV 2.0 1
8 J7251007A BOARD_COVER 1
9 AM03-005825B TERMINAL_BLOCK 1
EP18-900018 MAGNETIC CONTACTOR 1
EP07-000576 BREAKER,CIRCUIT-SH202-C16;MCBs,2P,440V 2
EP07-000731 BREAKER,CIRCUIT-SH203-C16;MCBs,3P,440V 1
J7051105B DIN RAIL 1
EP10-900438 FUSE[250V 5A] 3
EP10-900439 FUSE[250V 10A] 2
EP21-000093 BLOCK,TERMINAL-281-611 5
EP21-000094 BLOCK,TERMINAL-2002-1301 10
EP21-000095 BLOCK,TERMINAL-2002-1401 10
EP21-000096 BLOCK,TERMINAL-2002-2201 2
EP21-000097 ACCESSORY,TERMINAL BLOCK-JUMPER BAR 2
EP21-000098 ACCESSORY,TERMINAL BLOCK-JUMPER BAR 6
