Page SAMSUNG TECHWIN 11 4 DECAN L2 Head (1/5)
Page
SAMSUNG TECHWIN
113
DECAN
L2
Page
SAMSUNG TECHWIN
114
DECAN
L2

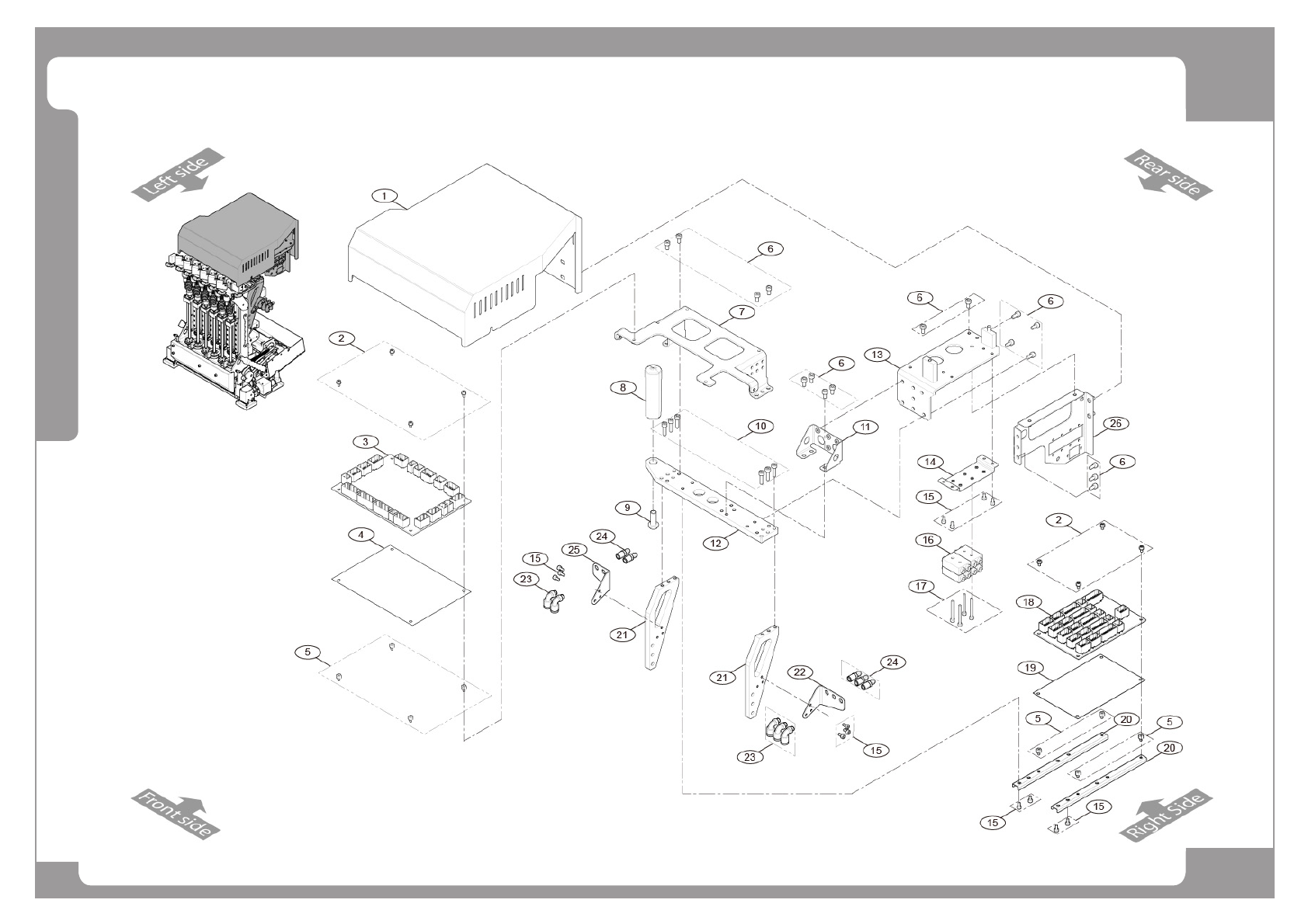

Head (1/5)
Page
SAMSUNG TECHWIN
115
DECAN
L2
Head (1/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-001388A COVER-HEAD TOP COVER SM481 1
2 FC18-902837 SEMUS NABE SCREW 24
3 AM03-014130A HEAD IF BOARD 1
4 FC36-000193A SHEET-IF_BOARD_SHEET 1
5 FC29-900610 HEX SUPPORT 18
6 FC18-902740 SOCKET HEAD CAP SCREW 17
7 FC09-004866A BRACKET-HEAD_BRD_BRACKET 1
8 FC29-900148 HANDLE 1
9 FC18-902795 BUTTON_HEAD_CAP_SCREW 1
10 FC18-902745 SOCKET HEAD CAP SCREW 6
11 FC09-001690A HEAD_BKT_FIX 1
12 FC09-001575A HARNESS_PLATE 1
13 FC09-001568A FLAT_CABLE_BKT 1
14 FC09-001847A FITTING_BKT 1
15 FC18-902719 SOCKET HEAD CAP SCREW 58
16 J1301070 STRAIGHT_CONNETOR_FITTING 4
17 FC18-902735 SOCKET HEAD CAP SCREW M3*30 (NI/ZN) 4
18 AM03-005341A MOTOR_IF_BOARD 1
19 FC30-000991A MOTOR_IF_BOARD_SHEET 1
20 FC09-001576A MOTOR_IF_BOARD_BKT 2
21 J71541016B HARNESS_SUPPORT 2
22 J70541016A 3-NIPPLE_BRACKET 1
23 HP06-900079 ELBOW_UNION_FEMALE 5
24 FC28-900369 GREASE NIPPLE 5
25 J70541017A 2-NIPPLE_BRACKET 1
26 FC09-001573A HEAD_BKT_PANEL 1
