Page SAMSUNG TECHWIN 179 DECAN L2 Electric Power (4/6) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01 1275A CABLE ASSY -R Y_BRK_220V_24V_PC_P WR 3 2 AM03-01 1274A CAB LE ASSY -RELA Y_BRK…
Page
SAMSUNG TECHWIN
178
DECAN
L2

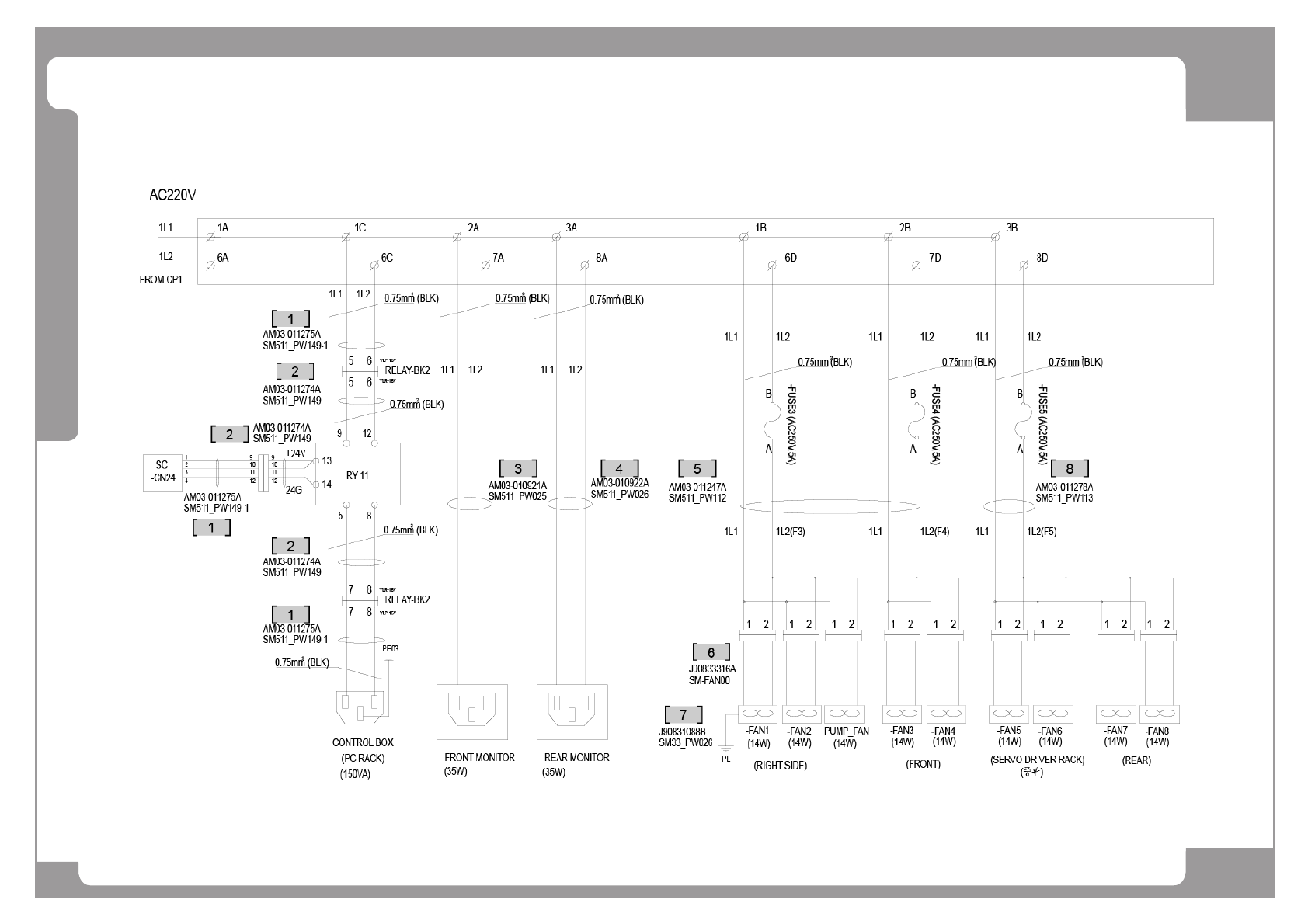

Electric Power (4/6)
Page
SAMSUNG TECHWIN
179
DECAN
L2
Electric Power (4/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 3
2 AM03-011274A CABLE ASSY-RELAY_BRK_MODULE_AC_DC 3
3 AM03-010921A CABLE ASSY-FRONT_MONITOR_PW 1
4 AM03-010922A CABLE ASSY-REAR_MONITOR_PW 1
5 AM03-011247A CABLE ASSY-FAN_POWER 1
6 J90833316A FAN_CABLE_ASSY SM-FAN00 1
7 J90831088B SERVO_FAN_FG_CABLE_ASSY 1
8 AM03-011278A CABLE ASSY-SERVO_REAR_FAN_POWER 1
Page
SAMSUNG TECHWIN
180
DECAN
L2
Electric Power (5/6)
