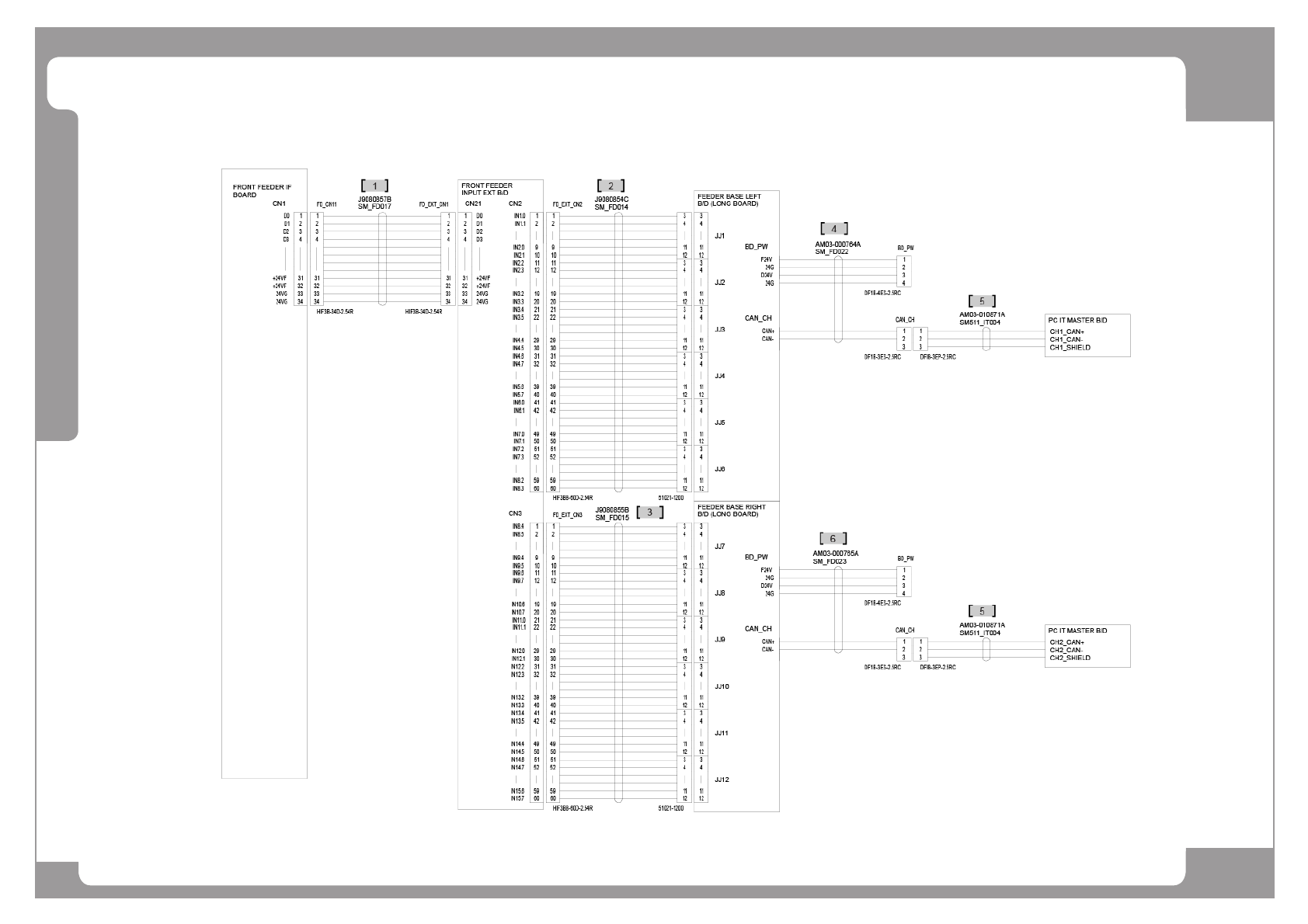

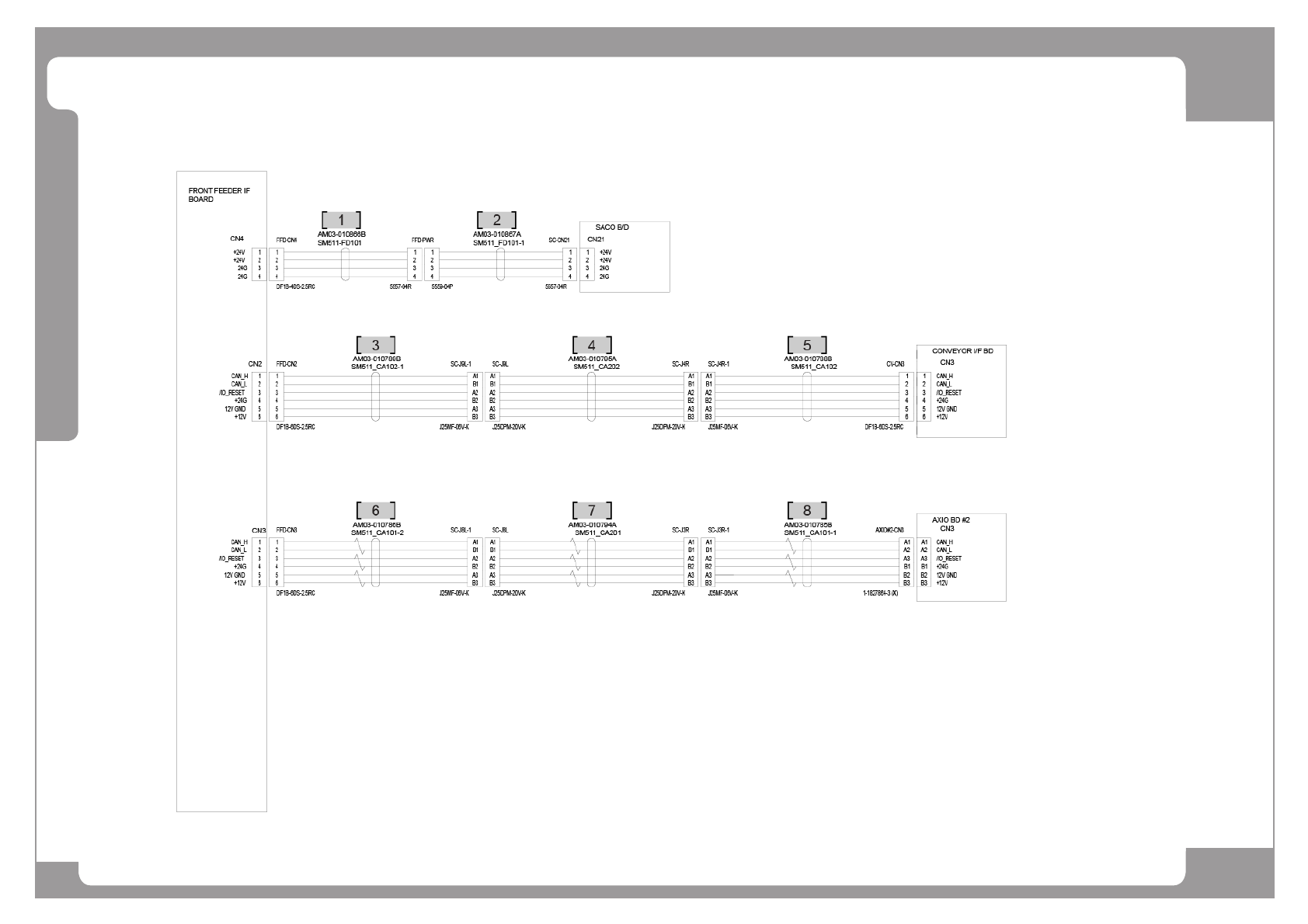

Front Feeder Board Interface (1/3)
Page
SAMSUNG TECHWIN
197
DECAN
L2
Front Feeder Board Interface (1/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010866B CABLE ASSY-FRONT FDR CTRL PWR_J1L 1
2 AM03-010867A CABLE ASSY-FRONT FDR CTRL PWR-EXT 1
3 AM03-010789B CABLE ASSY-FFDR-CVIF_CAN_J9L 1
4 AM03-010795A CABLE ASSY-CAN_TW_J4R-J9L 1
5 AM03-010788B CABLE ASSY-FFDR-CVIF_CAN_J4R 1
6 AM03-010786B CABLE ASSY-AXIO_BD_2_FFD_CAN_J8L 1
7 AM03-010794A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1
8 AM03-010785B CABLE ASSY-BD_2_FFD_CAN_J3R 1
