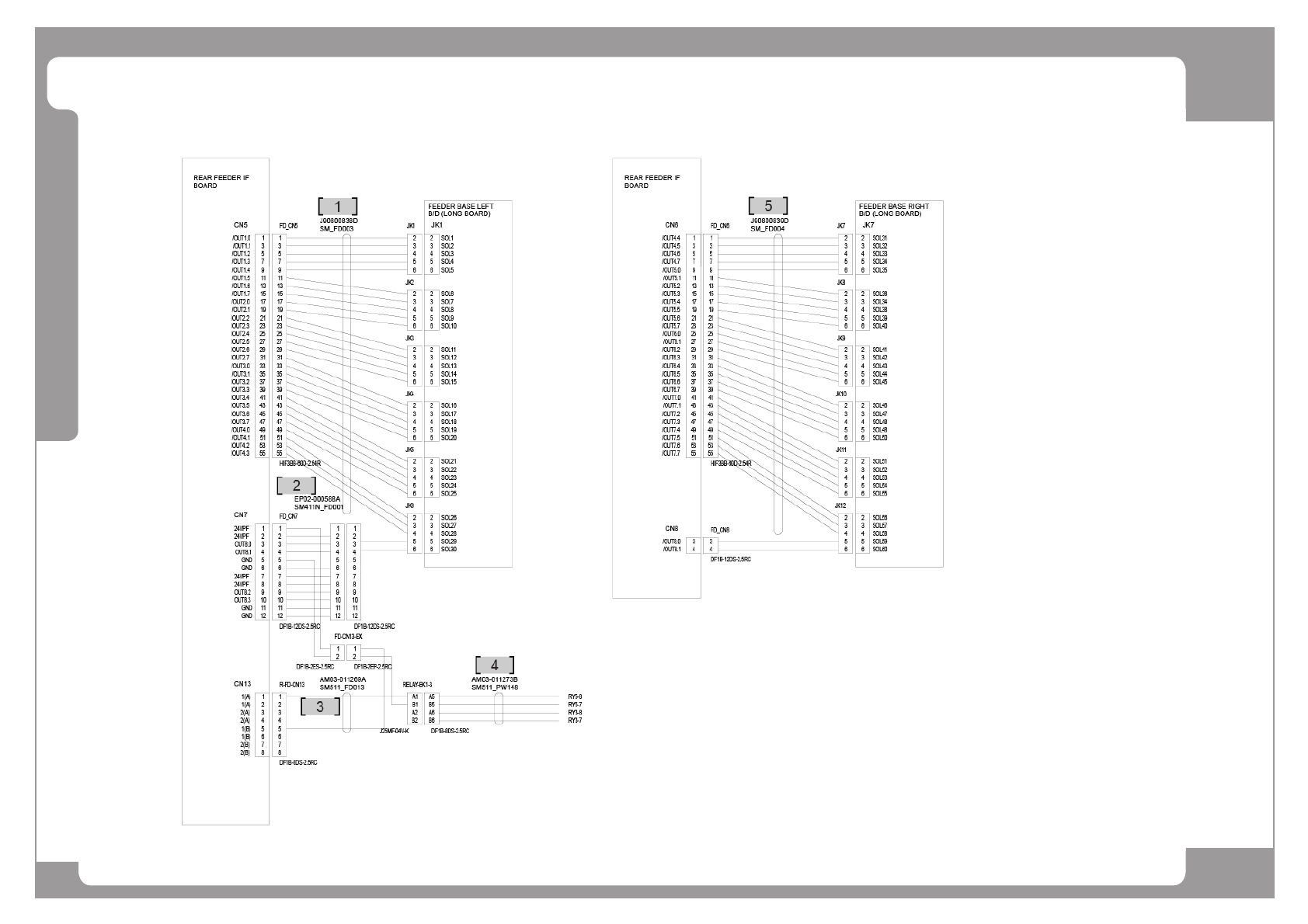

Rear Feeder Board Interface (2/3)
Page
SAMSUNG TECHWIN
205
DECAN
L2
Rear Feeder Board Interface (2/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90800840B FDR INPUT EXT CABLE ASSY SM_FD005 1
2 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1
3 AM03-000698A CABLE ASSY-FEEDER BASE BOARD CABLE ASSY 1
4 AM03-010871A CABLE ASSY-DEVICE_NET 2
5 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1
6 AM03-000697A CABLE ASSY-FEEDER BASE BOARD CABLE ASSY 1
